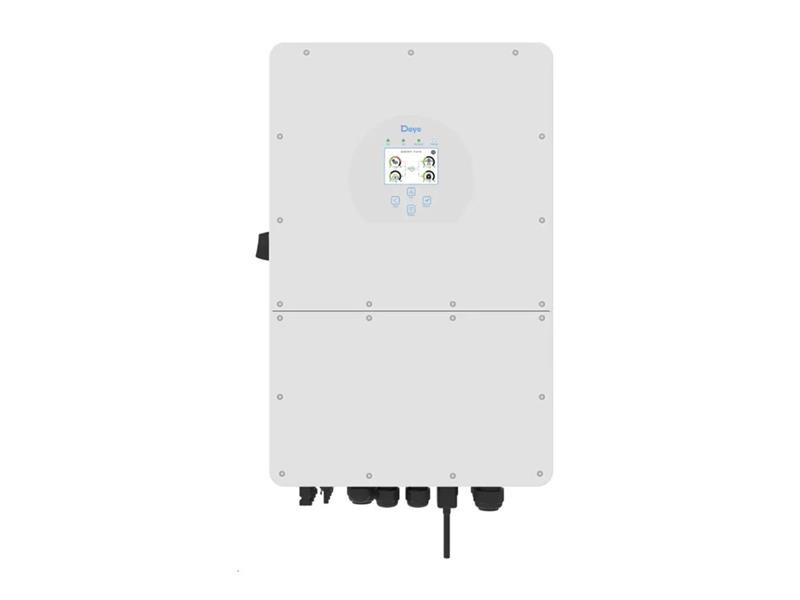

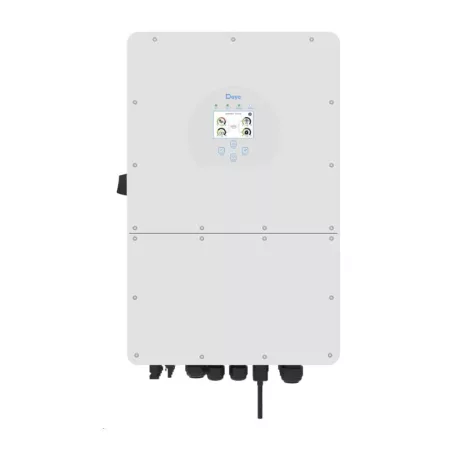

Hybrid inverter DEYE SUN-10K-SG01HP3-EU-AM2, 10kW, 3F, HV

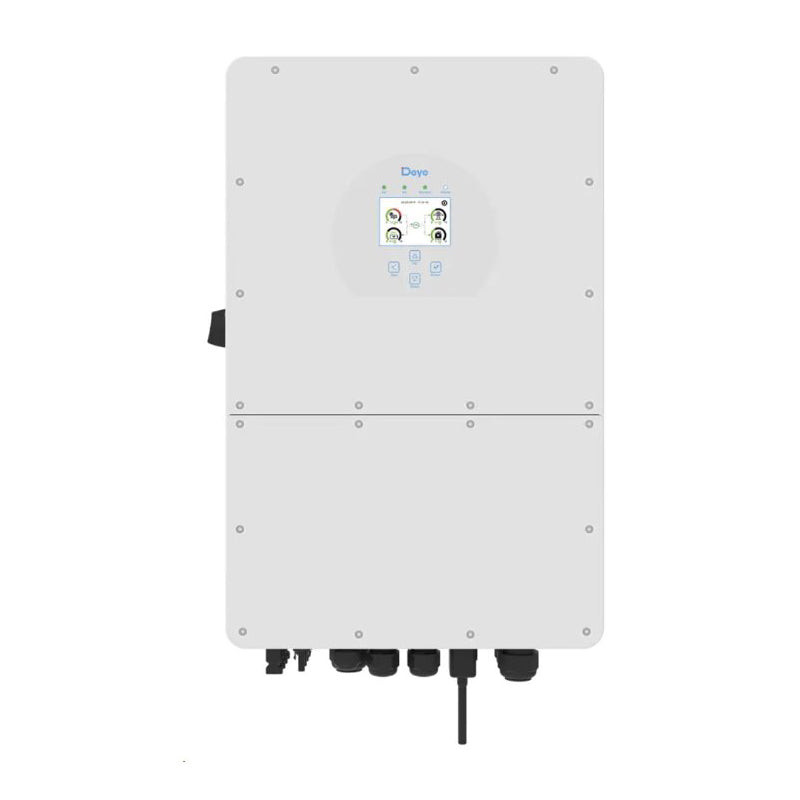

SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand new series of three-phase hybrid inverters supporting 160-700V HV battery, ensuring higher system efficiency and lower waste heat production. Thanks to the compact, sophisticated design and first-class technologies, this series manages to increase the power of the PV system by up to 30% compared to the rated power of the inverter (DC/AC ratio = 1.3). This eliminates the need to always choose a model with the same performance for the PV system, which brings savings in the cost of installation. It supports three-phase asymmetric output up to 150% for the widest possible application in various conditions. The color LCD display provides a user-friendly interface for both system overview and configuration (battery management, AC/solar charging depending on different applications, etc.). The biggest advantage of this converter is the adjustable "smart load" input/output where you can connect a generator, string converter, or heating cartridge for heating water. The options of this port offer you to use similar functions as the wattrouter.. Main parameters. High voltage design for higher efficiency. 3-phase asymmetrical output. Two MPPT trackers. Two string inputs (4 connectors). Working voltage MPPT 150 - 850V. Intelligent monitoring platform. Unique functions Smart Load, Grid peak shaving, phase balancing. Possibility to connect up to 10 parallel units. 6 time windows for charging and discharging. This device is in the list of products of the New green savings program (SVT35009). Technical parameters. Battery. Battery type: lithium-ion. Battery voltage: 160 - 700 VDC. Max. charging current: 37 A. Max. discharge current: 37 A. Number of battery inputs: 1. PV input. Max. PV power: 13000 W. Max. DC Voltage: 1000V. Starting voltage: 180V. Max. input short-circuit current: 30 + 30 A. Max. input operating current: 20 + 20 A. AC input / output. Rated active power: 10000 W. Rated reactive power: 11000 VA. Max. overload: 1.5x rated power after 10s. Rated voltage: 220 / 380 V, 230 / 400 V. Connection type: 3L + N + PE. Mains frequency: 45 to 65 Hz. Efficiency. Max. efficiency: 97.6%. EURO efficiency: 97%. MPPT efficiency: >99%. Protection function. DC polarity reversal. AC current overload. AC overvoltage. AC output short circuit. Detection of the DC component on the AC output. Overvoltage during a sharp drop in load. Leakage current detection in PE. Arc interrupter. Monitoring of the electrical network. Island isolation function. Earth fault detection. DC input switch. DC terminal block resistance detection. Residual Current Device (RCD). Overheating. Power surges. Surge Protection Class: Type II (AC), Type II (DC). Other parameters. Working temperature: -40°C to +60°C. Air humidity: 0 - 100%. Max. altitude: 2000 m. Noise level: ? 55 dB. Cooling: active intelligently controlled. Topology: non-isolated. Network standards: IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105. Safety standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2. Overvoltage protection class: OVC II (DC), OVC III (AC). Dimensions: 408 x 638 x 237 mm (without connectors and brackets). Weight: 30.5 kg. Degree of protection: IP65
