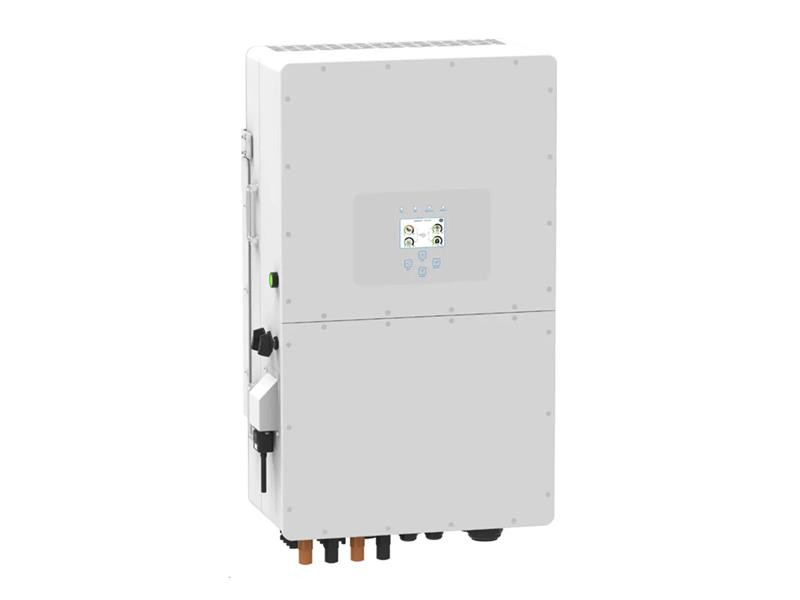

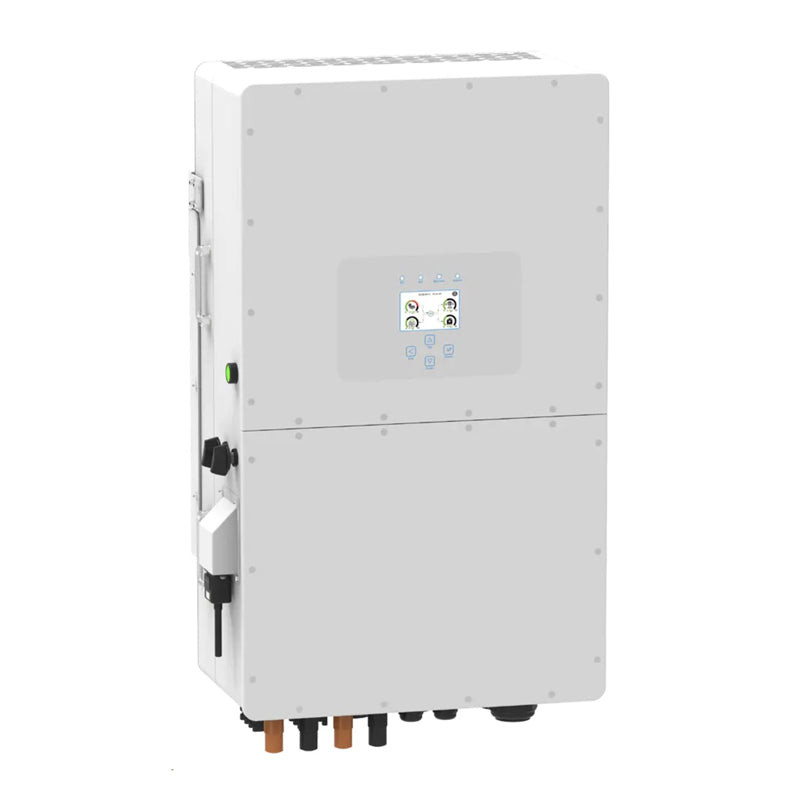

Hybrid invertor DEYE SUN-30K-SG01HP3-EU-BM3, 30kW, 3F, HV

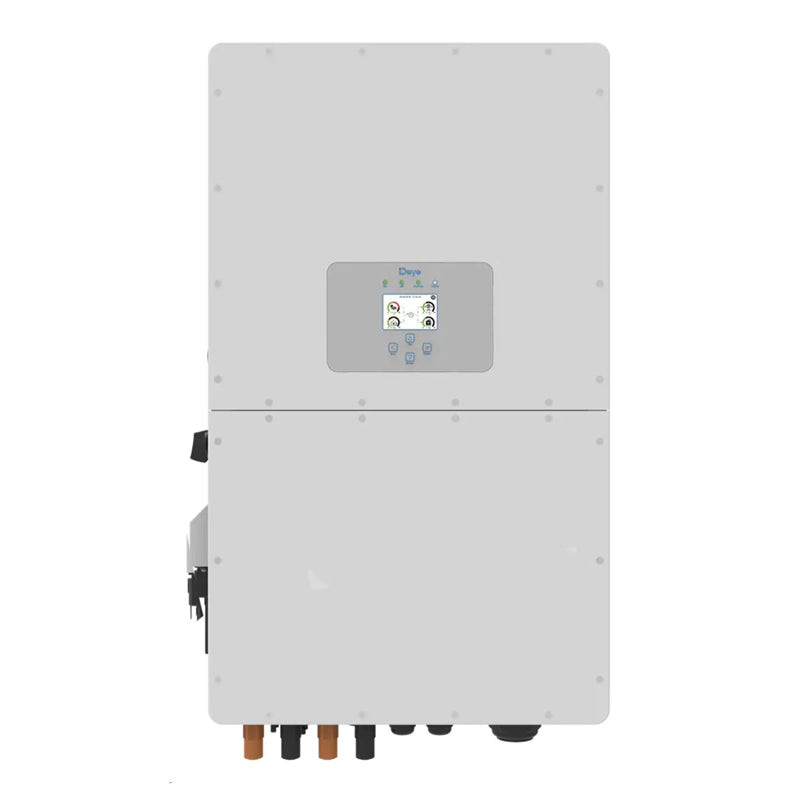

SUN-30K-SG01HP3-EU-BM3 is a brand new series of three-phase hybrid inverters supporting 160-700V HV battery, ensuring higher system efficiency and lower waste heat production. Thanks to the compact, sophisticated design and first-class technologies, this series manages to increase the power of the PV system by up to 30% compared to the rated power of the inverter (DC/AC ratio = 1.3). This eliminates the need to always choose a model with the same performance for the PV system, which brings savings in the cost of installation. It supports three-phase asymmetric output up to 150% for the widest possible application in various conditions. The color LCD display provides a user-friendly interface for both system overview and configuration (battery management, AC/solar charging depending on different applications, etc.). The biggest advantage of this converter is the adjustable "smart load" input/output where you can connect a generator, string converter, or heating cartridge for heating water. The options of this port offer you to use similar functions as the wattrouter.


Main parameters

High voltage design for higher efficiency
3-phase asymmetrical output
Three MPPT trackers
Six string inputs (12 connectors)
Working voltage MPPT 150 - 850V
Intelligent monitoring platform
Unique functions Smart Load, Grid peak shaving, phase balancing
Possibility to connect up to 10 parallel units
6 time windows for charging and discharging

This device is in the list of products of the New Green Savings program (SVT34120)

Technical parameters

Battery
Battery type: lithium-ion
Battery voltage: 160 - 800 VDC
Max. charging current: 50 + 50 A
Max. discharge current: 50 + 50 A

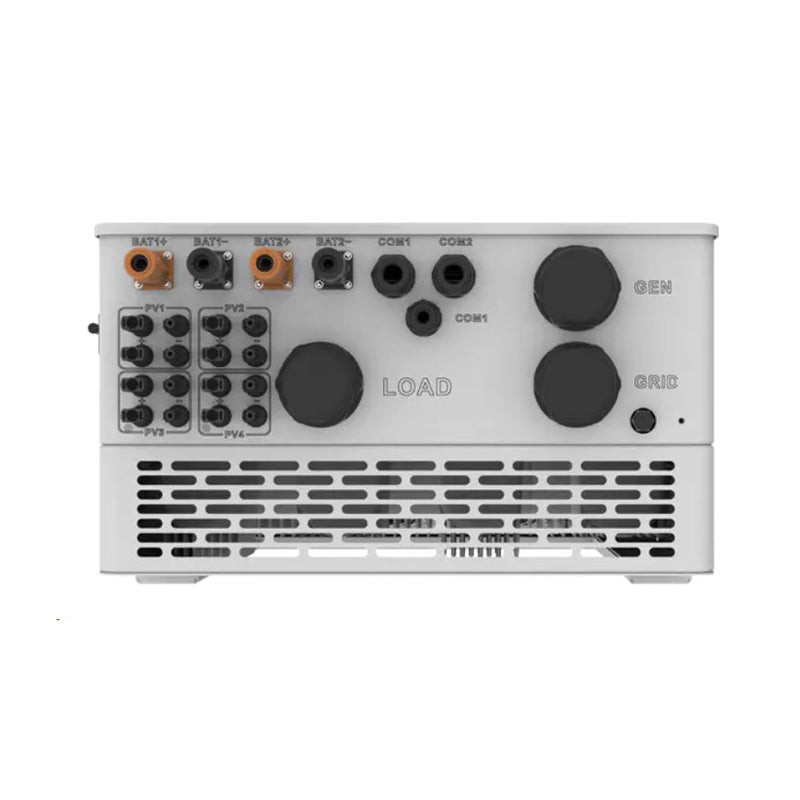

Number of battery inputs: 2

PV input
Max. PV power: 39000 W
Max. DC Voltage: 1000V
Starting voltage: 180V
Max. input short-circuit current: 55 + 55 + 55 A
Max. input operating current: 36 + 36 + 36 A

AC input / output
Rated active power: 30000 W
Rated reactive power: 33000 VA
Max. overload: 1.5x rated power after 10s
Rated voltage: 220 / 380 V, 230 / 400 V
Connection type: 3L + N + PE
Mains frequency: 45 to 65 Hz

Efficiency
Max. efficiency: 97.6%
EURO efficiency: 97%
MPPT efficiency: >99%

Protection function
DC polarity reversal
AC current overload
AC overvoltage
AC output short circuit
Detection of the DC component on the AC output
Overvoltage during a sharp drop in load
Leakage current detection in PE
Arc interrupter
Monitoring of the electrical network
Island isolation function
Earth fault detection
DC input switch
DC terminal block resistance detection
Residual Current Device (RCD)
Overheating
Power surges
Surge Protection Class: Type II (AC), Type II (DC)

Other parameters
Working temperature: -40°C to +60°C
Air humidity: 0 - 100%
Max. altitude: 2000 m
Noise level: ≤ 55 dB
Cooling: active intelligently controlled
Topology: non-isolated
Network standards: IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Overvoltage protection class: OVC II (DC), OVC III (AC)
Dimensions: 527 x 894 x 294 mm (without connectors and brackets)
Weight: 80 kg
Degree of protection: IP65
