Termék részletek


Forrasztóállomás ZD-917

CZ-06520005 Forrasztóállomás ZD-917
59 527,56 Ft + ÁFA (75 600 Ft)
Termék beérkezés ha nincs készleten:
2-8 nap
Bemeneti feszültség: AC 110-130V, 220-240V AC
Fogyasztás: 60W + 80W
Fő biztosíték: 3A
Funkció kijelző: LCD
Páka Feszültség: 24V AC
Teljesítmény: 60W
Hőmérséklet: 160 ° C - 480 ° C
Fűtőelem: kerámia fűtőelem
Kiforrasztó Feszültség: 24V AC
Vákuum nyomás: 600 mm Hg
Teljesítmény: 80W
Hőmérséklet: 160 ° C - 480 ° C
  • Description

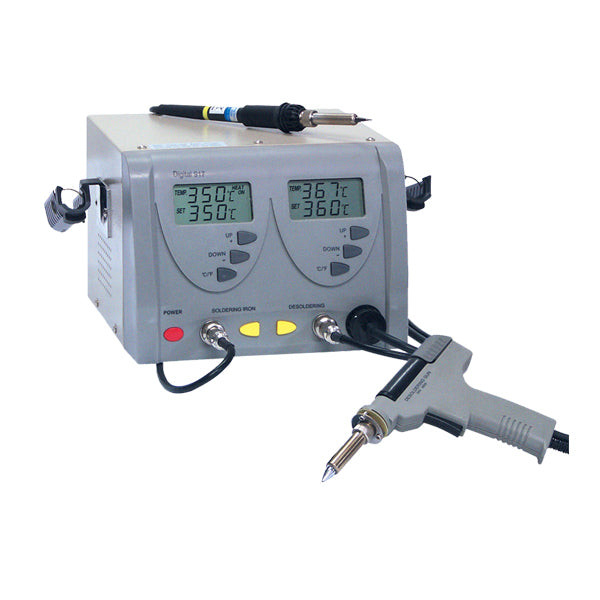

    Temperature Controlled Soldering and Desoldering Station Model ZD-917 is a high-performance and multi-function station. It is suitable for soldering and desoldering. LCD display soldering & desoldering station features:
    - Having one desoldering iron with absorbing gun and one soldering station in one station, and playing overall rolls with soldering and desoldering function.
    - Exceptional high-performance PTC in the desoldering iron provide a long life and continuously controlled supply of heat, suitable for desoldering all type of components and easy removal of the residual solder.
    - Having the thermostat function and suitable for soldering different components automatically. The soldering iron and desoldering iron can be used independently or at the same time.
    - The temperature sensor on the top of the tips can check the tip temperature quickly and decreasing the possibility of the tip temperature falling off during the operating and suitable for lead free soldering.

    Station:
    - Input voltage: 220-240V AC / 50Hz
    - Power consumption: 60W + 80W
    - Main fuse: 3,15A
    - Function display: LCD

    Solder:
    - Voltage: 24V AC
    - Power: 60W (heat up rating 130W)
    - Temperature: 160°C - 480°C
    - Heating element: ceramic heater

    Desolder:
    - Voltage: 24V AC
    - Vacuum pressure: 600mm Hg
    - Power: 80W (heat up rating 130W)
    - Temperature: 160°C - 480°C



    Technical specification

    Dual LCD display
    Desoldering gun + soldering iron
    Power consumption: 60W soldering, 90W desoldering
    Temperature: 160°C up to 480°C
    High quality ceramic heater
    Power supply: 220-240V AC/50Hz
    Iron stands included
  • Garancia
    2 év
    Gyártói Referencia
    6520005
    Cikkszám
    CZT_06520005
