Termék részletek

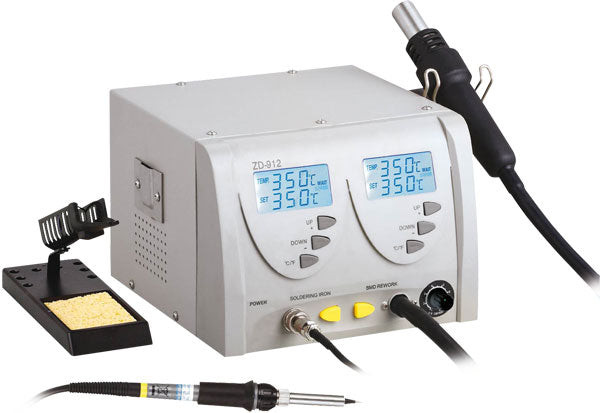

Forrasztóállomás és hőlégfúvós munkaállomás ZD-912

CZ-06520004 Forrasztóállomás és hőlégfúvós munkaállomás ZD-912
53 937,01 Ft + ÁFA (68 500 Ft)
Termék beérkezés ha nincs készleten:
2-8 nap



Bemeneti feszültség: AC 110-130V, 220-240V AC
Fogyasztás: 60W + 320W
Fő biztosíték: 3A
Páka feszültség: 24V AC
Teljesítmény: 60W
Hőmérséklet: 160 ° C - 480 ° C
Fűtőelem: kerámia fűtőelem

Kapacitás: 24L/min (max)
Teljesítmény: 320W
Hőmérséklet: 160 ° C - 480 ° C

  • Description
    ZD-912 Soldering & Reworking Station is a high-performance and multi-function station. It is suitable for soldering and desoldering all type of surface mounted IC and prevents any damage to the PCB or components.

    Features
    - Good appearance and easily use
    - Hot air heat up and the temperature increase quickly
    - The hot air temperature can by calibrated from 160°C to 480°C continuously
    - The hot air temperature can be calibrated from 3L/min to 24L/min continuously

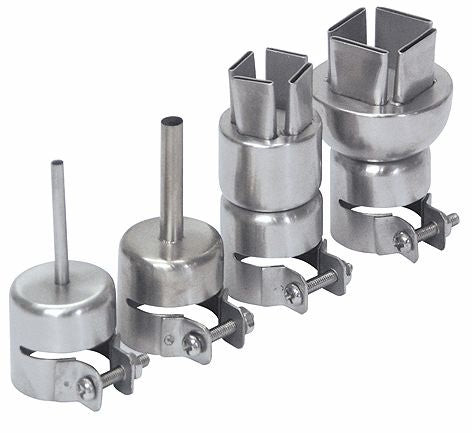

    - Having multiple absorbing tips of different inner diameters, and suitable to remove all types of chips
    - Having the thermostat function and suitable for soldering different components automatically
    - Playing overall rolls in one station with desoldering and soldering function. Widely used in the fields
    of the electronic production and repairing like chips soldering/desoldering nad repairing
    - The temperature sensor on the top of the tips can check the tip temperature quickly and decreasing
    the possibility of the tip temperature falling off during the operating and suitable for lead free soldering.

    Station:
    - Input voltage: 110-130V AC, 220-240V AC
    - Power consumption: 60W + 320W
    - Main fuse: 3,15A/250V
    - Air pump: diaphragm

    Solder:
    - Voltage: 24V AC
    - Power: 60W (heat up rating 130W)
    - Temperature: 160°C - 480°C
    - Heating element: ceramic heater

    Hot air smd rework:
    - Voltage: 110V - 130V AC, 220V - 240V AC
    - Capacity: 24L/min (max)
    - Power: 320W
    - Temperature: 160°C - 480°C
  • Garancia
    2 év
    Gyártói Referencia
    6520004
