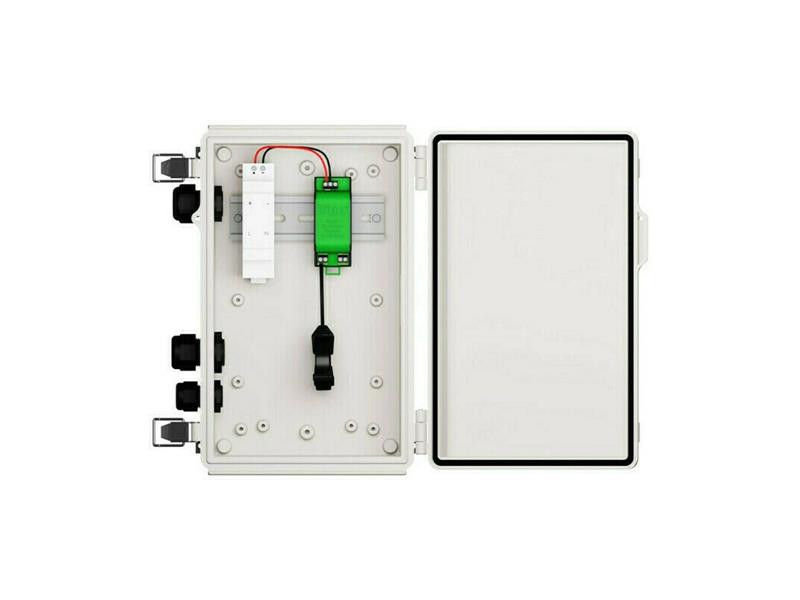

Tigo RSS Transmitter kit

Quick disconnect device for Tigo TS4-A-F and TS4-A-2F.
The RSS transmitter sends a signal to the TS4-F and TS4-A-2F units to keep the PV modules connected while they are on and supplying power. The TS4-F units will automatically go into quick shutdown mode when the RSS transmitter is turned off and resume power generation when the RSS transmitter power is restored. This solution complies with NEC 2014, 2017 and 2020 690.12 specifications for quick shutdown using power-line communication (PLC). Available as a kit, DIN rail or PCBA for integration into inverters.


Product parameters:

- multivendor UL Certified solutions meeting the requirements of the NEC 690.12 2017/2020 code
- deactivation at the module level with automatic or manual shutdown
- easy installation, no commissioning process required
- compatible with the largest network of UL-listed residential and commercial inverters
- integrated into many inverters, enabling plug and play installations with Tigo TS4-A-F and TS4-A-2F
- length: 100 mm
- width: 38 mm
- depth: 41.3 mm
- weight: 0.59 kg
