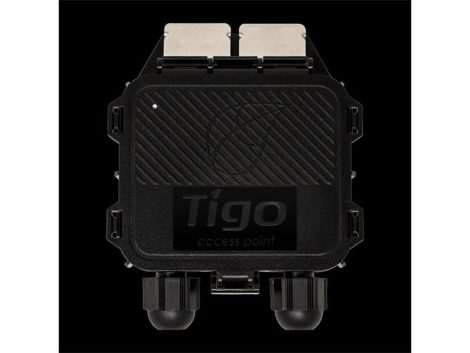

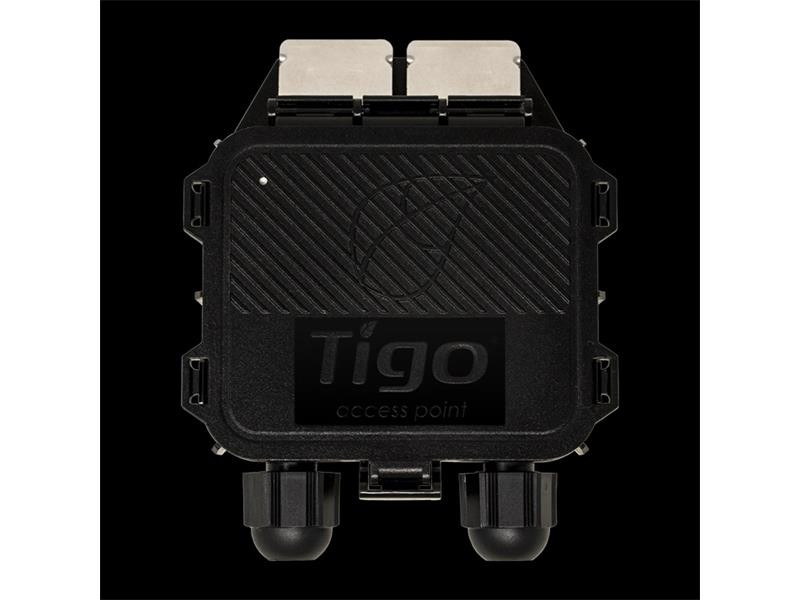

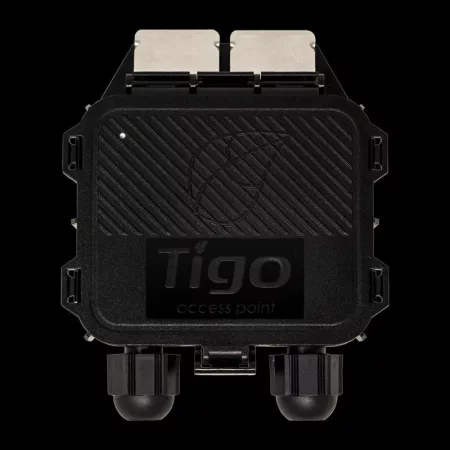

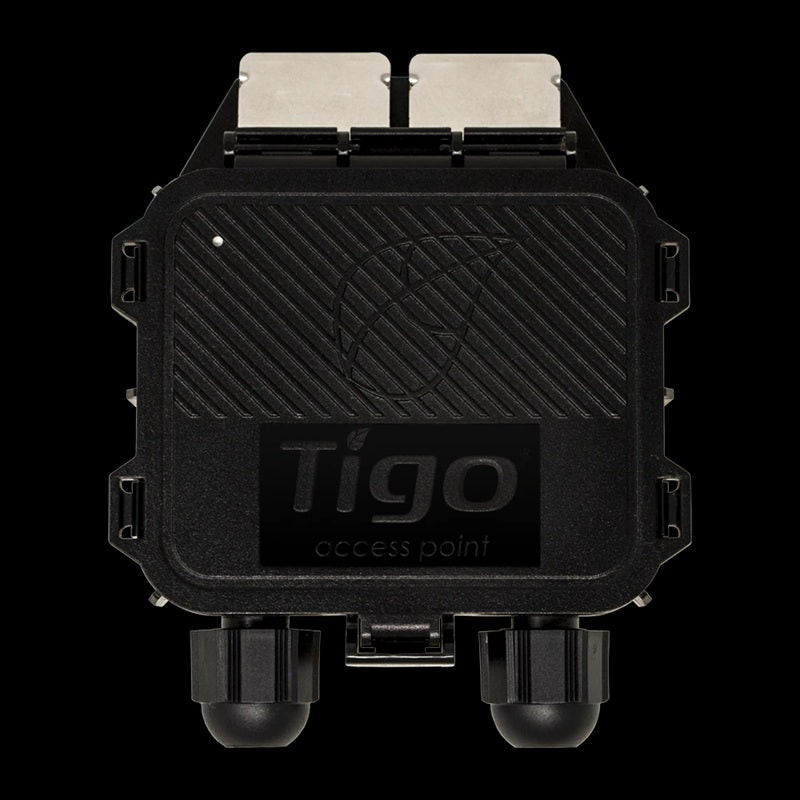

Tigo Access Point (TAP)

The Tigo Access Point (TAP) improves the data management of your solar array by wirelessly communicating with Tigo smart modules and additionally
mounted devices. The TAP Access Point also greatly enhances security with module-level deactivation. Once paired with the unit
Cloud Connect Advanced (CCA), the TAP Access Point provides unparalleled visibility into your solar installation.


- Easy, tool-free installation on the module frame
- Use the Tigo EI app on your mobile device to
Quick start
- Enables monitoring at the wireless module level
- Allows quick shutdown of the wireless module
- Up to 300 TS4 units can be connected

Electrical system specifications
- Input voltage range 5VDC - 25VDC
- Power consumption 0.5 W diameter, 1 W peak
- Recommended RS485 cable type, 18-22AWG

Mechanical system specifications
- Dimensions 126.2 mm x 130.0 mm x 26.8 mm (with bracket)
- Weight 227 g (0.5 lb)
- Operating temperature range -30 to +70 °C (-22 to +158 °F)
- Protection Class IP68, Type 4R

Range and capacity
- Maximum distance from TAP access point
to the nearest TS4 10 m (33 ft)
- Maximum distance from the TAP access point to
farthest TS4 35 m (115 ft)
- Total TS4 units supported Up to 300
