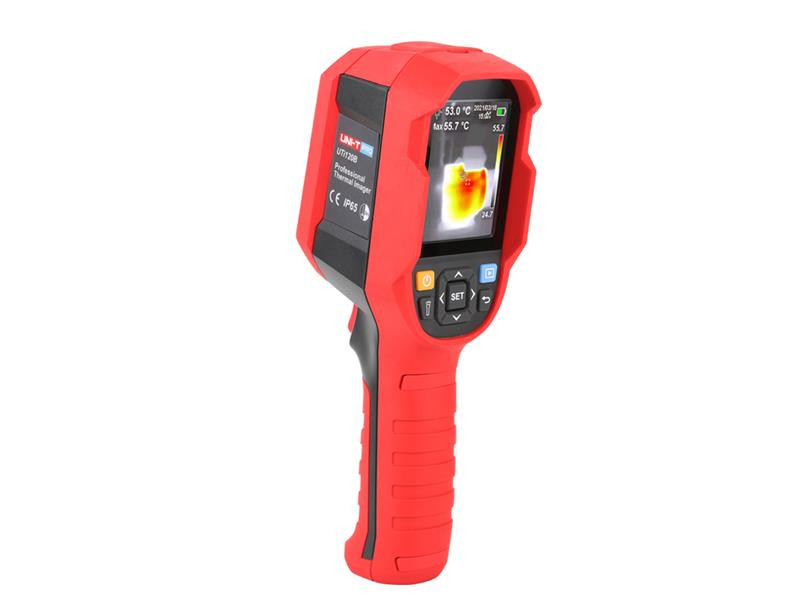

Thermal camera UNI-T UTi120B

The thermal camera UTi120B is a camera working in the field of infrared radiation, intended for measuring the surface temperature of objects in the range from -20°C to +400°C.
The camera contains 10800 thermal imaging pixels, each with a diameter of 17μm. The thermal image of objects converted into a visible image using one of the five available color palettes can be blended with the image in the visible light range. Another visible light sensor with a resolution of 640 x 480 pixels takes care of this. Setting the system date and time. Manually trigger the camera shutter. Save images on the supplied microSD card or transferred via the USB-C interface to a laptop for later analysis or for real-time image monitoring. Switching temperature units in degrees Celsius or Fahrenheit. Automatic tracking of the hottest and coldest spot in the image with temperature indication. Setting temperature alarms. Analysis of photos on a PC using software available on the manufacturer's website. Powered by a 5000mAh Li-ion battery that can be charged in the device.
The UTi120B Thermal Imager is an affordable professional troubleshooting tool, widely used in many applications such as finding overloaded heating devices, imperfect electrical contacts and teaching.
On the manufacturer's website, you can download software in the form of (.zip) or (.exe) for connecting to a PC and for photo analysis. Here it is also possible to download the user manual in English:
https://thermal.uni-trend.com/product/uti120b/?#Downloads3dda-2c0d


Product parameters :

- surface temperature measurement from -20°C to +400°C (-4℉ to 752℉)
- 5 color swatch palettes for thermal image transposition
- automatic monitoring of the highest and lowest temperature in the image
- adjustable high and low temperature alarms
- blending of the thermal image with the visible image
- thermal imaging pixels 17μm
- adjustable emissivity of measured objects
- setting the system time and date
- save images on the supplied 32GB micro SD card
- USB-C connector for charging the battery, transferring images to a PC, and projecting images
- 2.8" TFT LCD display with a resolution of 320(V) x 240(H)px
- display brightness setting
- built-in LED light
- built-in Li-ion battery 5000mAh
- mounting thread ¼" on the tripod


Technical parameters :

- temperature measurement range: -20℃ to 400℃ (-4℉ to 752℉)
- infrared resolution: 120 x 90 (total 10800) pixels
- field of view (HFOV): 50°(H) x 38°(V)
- thermal sensitivity (NETD): < 60mK @25℃
- IFOV (Instantaneous Field of View): 7.3 mrad
- visible light sensor resolution: 640 x 480px
- FOV (field of view in visible light): 81°
- display: LCD TFT 2.8" with a resolution of 320 x 240px
- temperature measurement unit: ℃ (default), ℉
- temperature resolution: 0.1 °C
- thermal imaging sensor: UFPA
- thermal imaging sensor pixel size: 17μm
- measurement in the infrared spectral range: 8μm to 14μm
- optimal distance of the object during measurement: 50 cm
- frame rate: ≤25Hz
- temperature measurement accuracy: -10℃ to 400℃ (± 2°C or 2%, whichever is greater, at room temperature 25℃
- image mode: thermal imaging, visible light, fusion (0%, 25%, 50%, 75% and 100%), and picture-in-picture
- adjustable emissivity: 0.01 to 1.0 (default 0.95)
- transposition of the thermal image into a color palette: white hot, black hot, red hot, rainbow, high-contrast rainbow
- high and low temperature alarm: yes (LED lighting alarm, icon, buzzer)
- analysis software: yes, for PC after downloading from the manufacturer's website
- shooting mode: manual trigger
- image saving format: BMP
- interface: microSD card with a maximum capacity of 32 GB; USB-C (charging, real-time image via PC software and saving to USB disk)
- menu language: English/Chinese
- certification: CE
- operating temperature: 0℃ to 50℃ (32℉ to 122℉)
- storage temperature: -20℃ to 60℃ (-4℉ to 140℉)
- operating humidity: < 90%RH (no condensation)
- power supply: Li-ion battery 5000mAh
- automatic shutdown: yes, optional off/5/10/30 minutes (default 30min)
- charging time: less than 5 hours
- operating time per charge: more than 6 hours
- charging adapter: 5V/2A or 5V/1A
- IP level: IP65
- drop test: 2m
- net weight: 490 g
- product dimensions: 236 × 75.5 × 86 mm


Contents of individual packaging :

- thermal camera UTi120B including built-in 5000mAh battery: 1 pc
- USB type C cable: 1 pc
- micro SD card 32GB: 1 pc
- instruction manual: 1 pc


Wholesale packing :

- standard quantity per carton: 10 pcs
- standard carton size: 500 x 315 x 295 mm
- weight of standard carton: 10.1 kg


Manufacturer :

UNI-TREND
www.uni-t.cz
