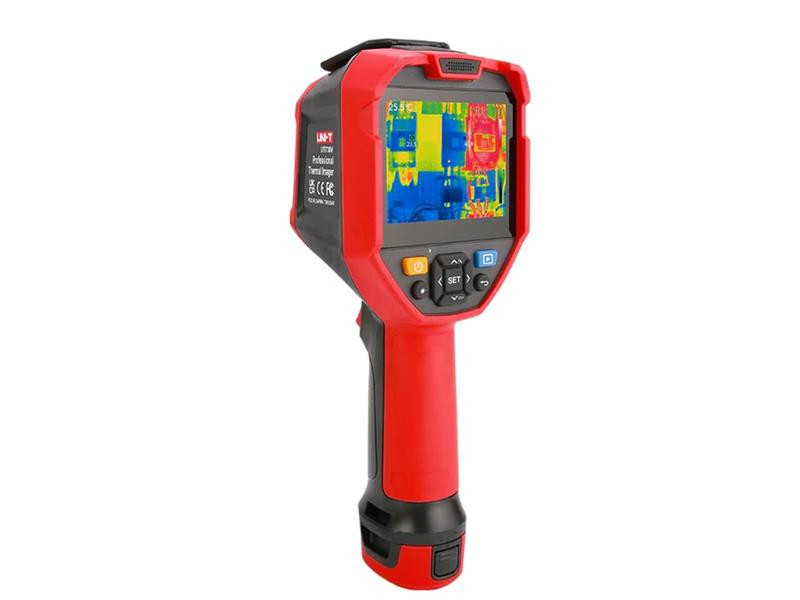

Thermal camera UNI-T UTi730V

The thermal camera UTi730V is a top camera working in the field of infrared radiation, intended for measuring the surface temperature of objects in the range from -40°C to +400°C. It is equipped with a 5MP digital camera and a 3.5" touch screen to improve work efficiency and image quality. The built-in function of laser aiming enables the measurement of targets at a safe distance. Features include video and voice recording and live streaming over Wi-Fi, making the device even more convenient. It is a reliable measuring tool widely used in the industrial field.
It can be equipped with a macro lens UT-Z003 (optional), the recommended distance is 4 cm.


Product parameters:

- 3.5″ IPS touch screen (640×480 pixels)
- IR resolution: 320 × 240
- measurement of surface temperature from -40°C to +400°C
- automatic alarm for HI/LO temperature
- automatic monitoring of the HI/LO point
- object temperature analysis: 5 points, 1 line, 3 circles
- 5 MP digital camera
- freely focused lens, digital Zoom 2x, 4x
- image modes: 4 (Thermal, Visual image, Fusion (T-Mix), PIP)
- QR code – photo management
- video and voice recording
- laser pointer and laser targeting with a range of up to 30m
- LED flashlight
- Wi-Fi connection via mobile application – support for live streaming via Wi-Fi
- PC software: analysis and projection of the image in real time
- removable Li-ion battery 5200mAh (UT-M17)
- protection: IP54
- resistance to falling from 2 m


Technical parameters:

- 3.5″ IPS touch screen (640×480 pixels)
- IR resolution: 320 × 240 pixels
- measurement in the infrared spectral range: 8μm to 14μm
- thermal imaging sensor pixel size: 12μm
- frame rate: ≤9Hz
- thermal sensitivity (NETD): < 65mK
- focus mode: Focus Free
- field of view (FOV): 56° (H) × 42.2° (V)
- temperature measurement range: -40°C to +400°C

- color swatch palette for thermal image transposition: (White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava)
- image modes: thermal, visual, Fusion (T-Mix), PIP
- object temperature analysis: 5 points, 1 straight line, 3 rectangles, 3 circles
- LCD animation of high/low temperature alarm, LED flashlight, sound signal
- 5 MP digital camera
- digital zoom: 2x, 4x
- video recording, voice recording
- Wi-Fi connection via mobile application – support for live streaming via Wi-Fi
- LED flashlight
- laser pointer and laser targeting with a range of up to 30m
- PC software: PC + APP

- power supply: Li-ion battery 5200 mAh (UT-M17)
- operating time ≥4 hours (with Wi-Fi off)
- USB type - C
- storage: Micro SD card with a capacity of up to 32 GB
- image/video storage format: JPG / AVI
- IP54 protection
- resistance to falling from a height of 2 m
- certification: CE, UKCA, FCC, RoHS
- weight: 654 Mr
- product dimensions: 260 x 97 x 99 mm

Package contents:
- thermal camera UTi720V
- Micro SD card
- USB type C cable,
- user manual

Manufacturer: UNI-TREND
