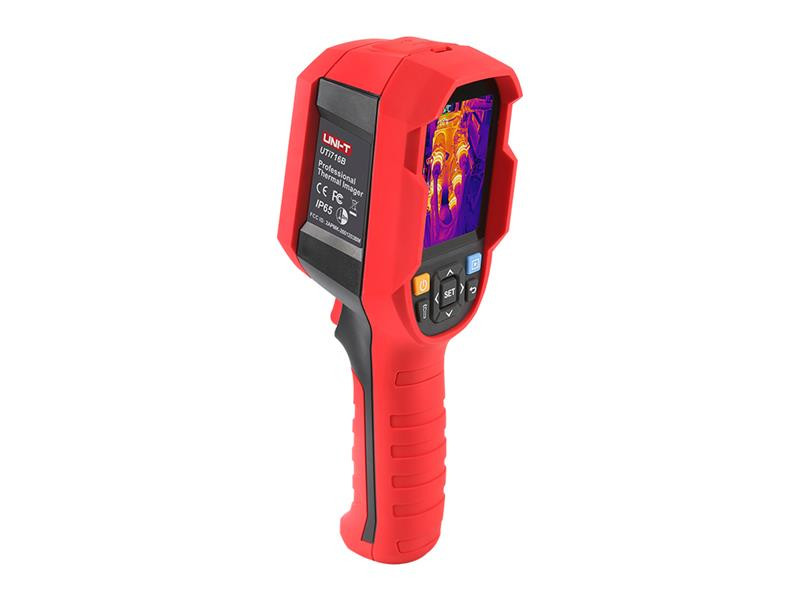

Thermal camera UNI-T UTi716B

This product comes with a 3-year warranty.

Heavy Duty Thermal Camera UNI-T UTi716B handheld thermal imager is equipped with a wide temperature measurement range and multiple shooting modes for different imaging requirements, PC software and mobile app for image analysis and report generation, and real-time image transmission is supported.
It has a resolution and T-Mix algorithm for better imaging effect. Support real-time temperature trend monitoring through video recording function. Complete one-stop control by connecting to mobile app via Wi-Fi. It is a perfect troubleshooting tool for many industrial applications.
Product parameters:

- infrared resolution 160×120 (with super resolution turned on, it can be increased to 320×240)
- temperature measurement range from -20°C to 550°C
- equipped with T-Mix image fusion algorithm technology
- video recording
- equipped with 2MP digital camera
- Wi-Fi connection
- multilingual operating system
- IP65 protection
- resistance to falling from a height of 2 m

Technical parameters:

- 2.8″ TFT display (320 x 240)
- infrared resolution: 160 x 120 pixels
- super resolution: 320 x 240 pixels
- measurement in the infrared spectral band: 8 μm to 14 μm
- thermal sensor pixel size: 12 μm
- frame rate: ≤ 25 Hz
- thermal sensitivity (NETD): ≤ 50mK
- Focus mode: Focus Free
- Field of view (FOV): 40°(H) x 30°(V)
- Temperature measurement range: -20℃ to 550℃
- Accuracy ±2°C or ±2% whichever is greater
- Color swatch palette for thermal image transposition: (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Image modes: Thermal, Visual image, T-Mix, Fusion, PIP
- Object temperature analysis: 5 points/ 3 rectangles
- LCD animation of high/low temperature alarm, LED flashlight, buzzer
- Monitoring of the highest and lowest temperature in the image
- Digital camera resolution: 2 MP
- Video recording: yes
- Live streaming via Wi-Fi/Wi-Fi: yes
- LED flashlight: yes
- PC analysis software + application
- Power supply: Li-ion battery 5000 mAh rechargeable
- Operating time ≥8 hours
- USB type - C
- memory: 16GB
- image/video storage format: JPG / MP4
- IP65 protection and 2 m drop resistance
- certification: : CE, FCC, RoHS
- weight: 600 g
- product dimensions: 236 x 75.5 x 86 mm
