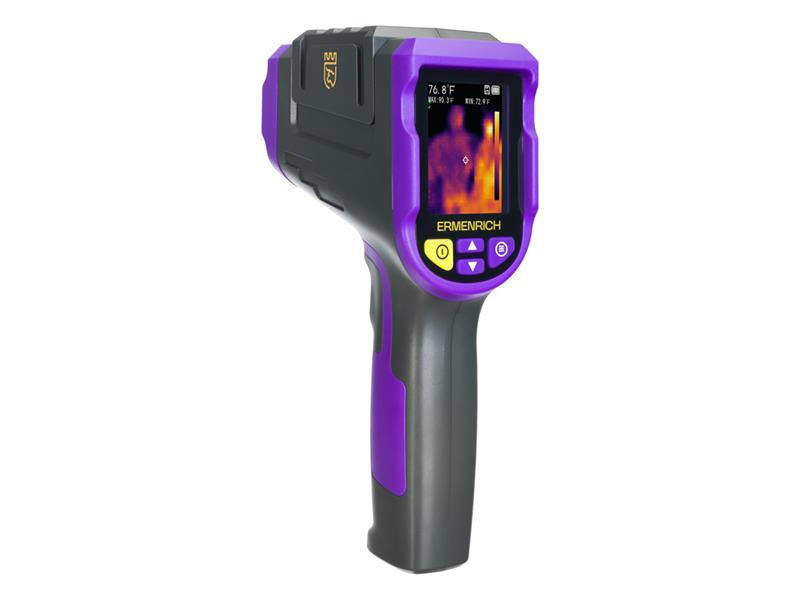

Thermal camera ERMENRICH Seek TV50

The Ermenrich Seek TV50 is suitable for a wide range of applications. When inspecting electrical equipment with a thermal imager, hidden defects, such as overheated contacts, can be detected. When inspecting industrial and residential buildings, the Ermenrich Seek TV50 thermal imager helps to find heat leaks on facades and foundations. During construction work, it can be used to check the installation of underfloor heating, radiators and water heaters. The thermal imager can also be useful in car servicing and repairs and in pest control (when searching for pests in a building). The Ermenrich Seek TV50 thermal imager has a temperature measurement range of -20 to +400 °C.

The thermal imager is equipped with a thermal imaging sensor with a resolution of 32x32 pixels (total 1024 pixels) and a visible light camera with a resolution of 2 Mpix. There are 4 modes available: infrared mode, infrared edge detection mode, dual light vision mode and visible light mode. You can also choose from 7 color palettes. The image is displayed on the built-in color screen. Control and settings are carried out using four buttons below the screen and one button on the handle. There is a photo shooting function - photos are saved to a memory card.

The device is held in the hand, there is no tripod mount. Power is provided by a rechargeable battery.

32x32 pix thermal imaging sensor and 2 Mpix camera, adjustable emissivity
7 color palettes, 4 modes, merging of visible and infrared images
High measurement accuracy in the range of −20 to +400 °C
Image sensor function, data is saved to a memory card
Shock-resistant body, powered by rechargeable batteries

Technical parameters:

Type of thermal imaging device: manual
Resolution of microbolometric matrix, px: 32х32
Spectral range, μm: 8–14
Speed: ≤9
Temperature measurement range, °С: -20 — 400
Temperature error, %: accuracy: 0... +400 °C: ±1.8 °C; –20... −0.9°C: ±3°C, resolution: 0.1°C
Temperature sensitivity (NETD), mK: 150
Color palettes: hot black, hot white, hot red, iron red, cold colored, rainbow, lava
Field of view (horizontal)x(vertical), °: 33 (horizontal), 18 mrad (instantaneous)
Fusion of optical and thermal images: +
Display: LCD, 2.4” TFT
Display resolution, px: 320x240
Operating mode: IR mode, IR edge detection mode, dual vision mode, visible light mode
Power supply: 2600 mAh, 3.7V, charging via microUSB cable (included)
Maximum load (impact), g: fall from a height of up to 1 meter
Camera temperature range, °C: -10...+45
Built-in recorder
Memory: 16 GB memory card (included)
Image format: *.bmp
Interface connectors: microUSB
Case/case/bag included: case
Auto power off function
Low battery indicator
Camera resolution: 2 Mpix
Adjustable emissivity from 0.1 to 0.99
Response time: 150 ms
Set contents:

Thermal camera
16 GB memory card
MicroUSB cable
Case
User manual and warranty card
