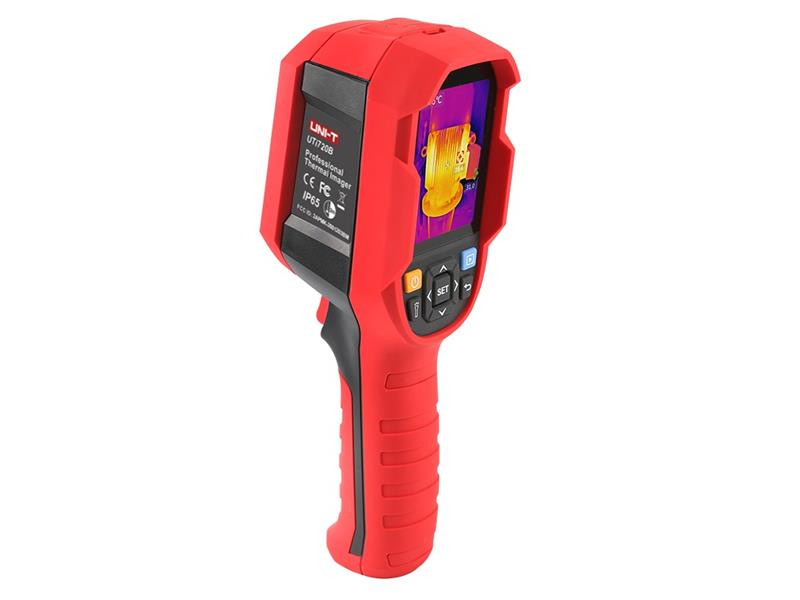

Thermal camera UNI-T UTi720B

This product comes with a 3-year warranty.

UTi720B highly durable thermal camera. It has resolution and T-Mix algorithm for better imaging effect. Support real-time temperature trend monitoring through video recording function. Complete control from one place by connecting to mobile app via Wi-Fi. It is a perfect troubleshooting tool for many industrial applications.

Product parameters:

- infrared resolution 256 × 192 (with super resolution turned on, it can be increased to 512 × 384)
- temperature measurement range from -20 °C to 550 °C
- equipped with T-Mix image fusion algorithm technology
- video recording
- equipped with 2MP digital camera
- Wi-Fi connection
- multilingual operating system
- IP65 protection
- resistance to falling from a height of 2 m

Technical parameters:

- 2.8″ TFT display (320 x 240)
- infrared resolution: 256 x 192 pixels
- super resolution: 512 x 384 pixels
- measurement in the infrared spectral band: 8 μm to 14 μm
- thermal sensor pixel size: 12 μm
- frame rate: ≤ 25 Hz
- thermal sensitivity (NETD): ≤ 50mK
- Focus mode: Focus Free
- Field of view (FOV): 56°(H) x 42°(V)
- Spatial resolution (IFOV) 3.75 mrad
- Temperature measurement range: -20℃ to 550℃
- Accuracy:
20°C to 550°C ±1.5°C or ±1.5% whichever is greater
-10°C to 20°C, 120°C to 550°C ±2°C or ±2% whichever is greater
- Thermal image transposition color swatch palette: (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Image modes: Thermal, Visual image, T-Mix, Fusion, PIP
- Object temperature analysis: 5 points/ 3 rectangles
- LCD high/low temperature alarm animation, LED flashlight, buzzer
- monitor the highest and lowest temperature in the image
- digital camera resolution: 2 MP
- video recording: yes
- live streaming via Wi-Fi/Wi-Fi: yes
- LED flashlight: yes
- PC+APP analysis software

- power supply: Li-ion battery 5000 mAh rechargeable
- operating time ≥7 hours
- USB type - C
- memory: 32GB
- image/video storage format: JPG / MP4
- IP65 protection and 2 m drop resistance
- certification: : CE, FCC, RoHS
- weight: 600 g
- product dimensions: 236 x 75.5 x 86 mm
- standard accessories: USB type C cable
