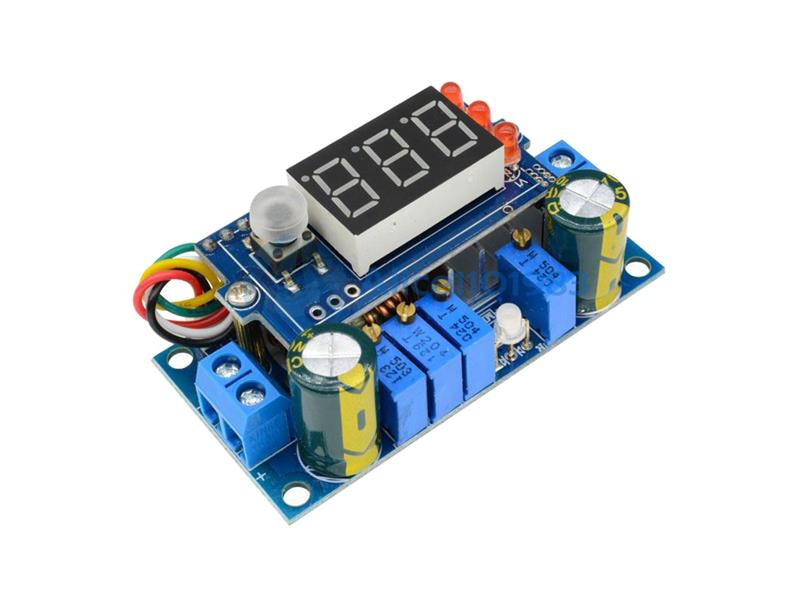

Solar regulator MPPT module with display, 6-36V 5A

Non-isolated power supply module with MPPT function suitable as a solar controller or battery charger with V-A characteristic conversion for the most efficient use of the power supply.


Technical parameters:

- input voltage: 6-36VDC
- output voltage: 1.25–32VDC (preset 5V)
- output current: 0.05–5A (continuous max.3A)

- Pb battery: 12 / 24V
- Lithium batteries: 7.2 / 10.8 / 14.4V
- Ni-Cd, Ni-MH batteries: 7.2-14.4V
- charging method: automatic 3-stage
- efficiency 93%
- own consumption 3mA
- protection: against polarity reversal, short circuit, against backflow into the panels
- dimensions (LxWxH): 60 × 32 × 28mm

Settings: see instructions
