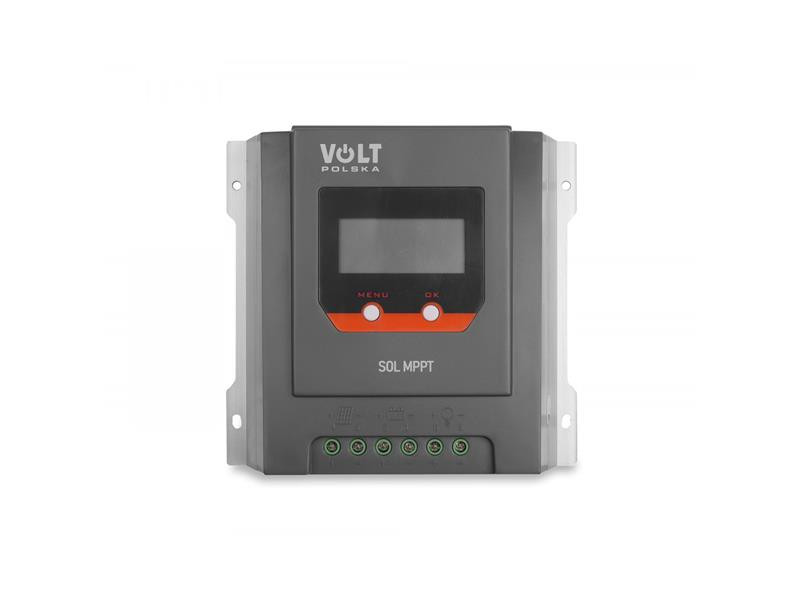

Solar regulator VOLT Sol 12/24V MPPT 20A Bluetooth

The VOLT Sol 12/24V MPPT 20A Bluetooth solar regulator is intended for charging batteries from a connected set of solar panels. This modern and multifunctional device charges based on the latest and most efficient MPPT charging technology. Thanks to the optimization of the charging process, the controller effectively extends the life of the battery compared to standard PWM controllers. The SOL MPPT 20A model is equipped with a wireless communication function, thanks to which you can remotely control and view the operating parameters of the regulator.

Properties:

- Modern MPPT technology
- Conversion/tracking efficiency > 99.9%
- Easy-to-read LCD display showing the most important operating parameters
- Automatic recognition of the voltage of the connected 12V/24V battery
- For use with GEL, AGM, lithium and liquid electrolyte batteries
- Temperature sensor with automatic temperature compensation (if the temperature exceeds the set value, the charging current will be reduced to lower the temperature)
- Four-phase charging: MPPT, BOOST (pulse), Equalization (equalization), Float (maintenance)
- Multiple connected load control modes: On, Dusk to Dawn, Night and Manual
- Fully automatic protections (short circuit, temperature, overload)
- Maximum charging current: 20A
- Battery voltage: 12V/24V
- Maximum voltage from panels: 100V
- Own consumption: 7mA
- For batteries: AGM, GEL
- MPPT charging voltage: <14.5/29.0 V (at 25 °C)
- BOOST voltage: 14.5/29.0 V (at 25 °C)
- Balancing voltage: 14.8/29.6 (at 25 °C)
- Floating voltage: 13.7/27.45 (at 25 °C)
- Low voltage cut-off: 10.8~11.8V/21.6~23.6V SOC1~5
- Reconnection voltage: 11.6~12.8V/23.2~25.6V
- Overcharge protection: 15.5/31.0V
- Temperature compression: -4.17 mV/K per cell (Boost, Equalization) -3.33 mV/K per cell (Float)
- Dusk/dawn detection voltage: 5/10V
- Dimensions: 189x182x64mm
- Weight: 1.3 kg
- Protection: IP32
- Setting all LiFePO4 battery parameters is only available from the Solarlife Android/iOS smartphone app
