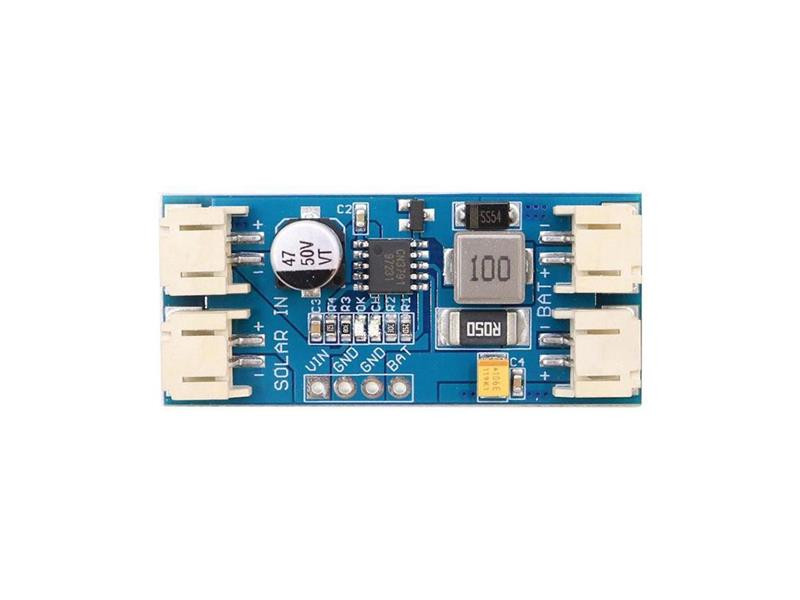

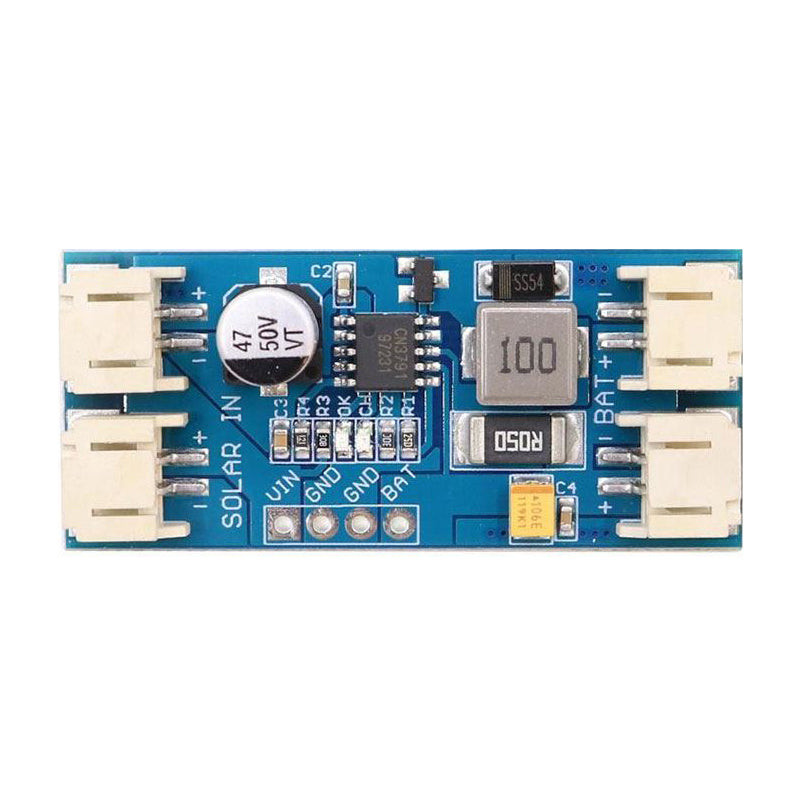

Solar controller MPPT module CN3791 for solar panel 6V

MPPT solar controller for Li-Pol single-cell batteries and solar panels with a working voltage of 6V.


Technical parameters:

- input voltage: 5–8 V (intended for a PV panel with a system voltage of 6 V)
- output voltage: 4.2 V for charging Li-Pol or Li-Ion cell 3.7 V
- charging current: max. 2 A

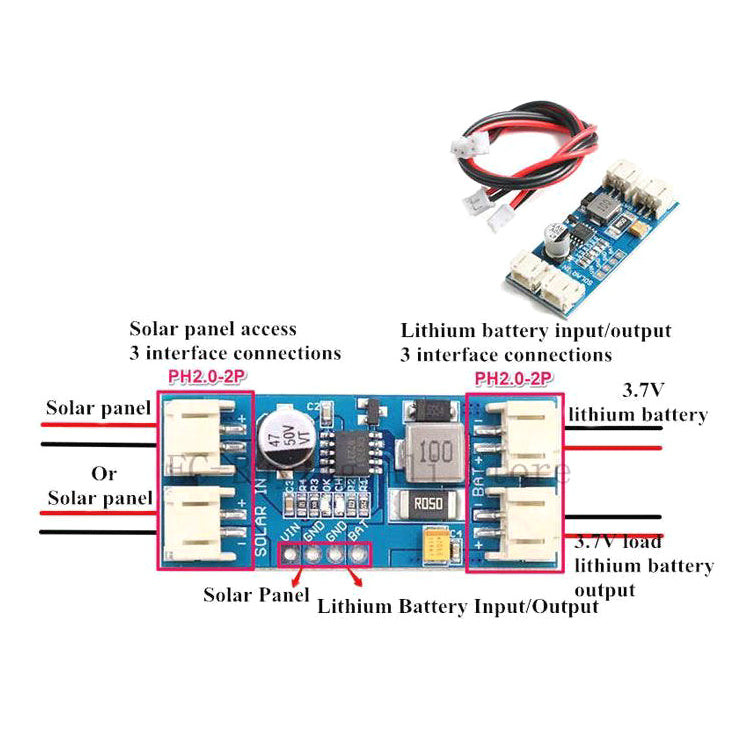

- 1-2 PV panels can be connected

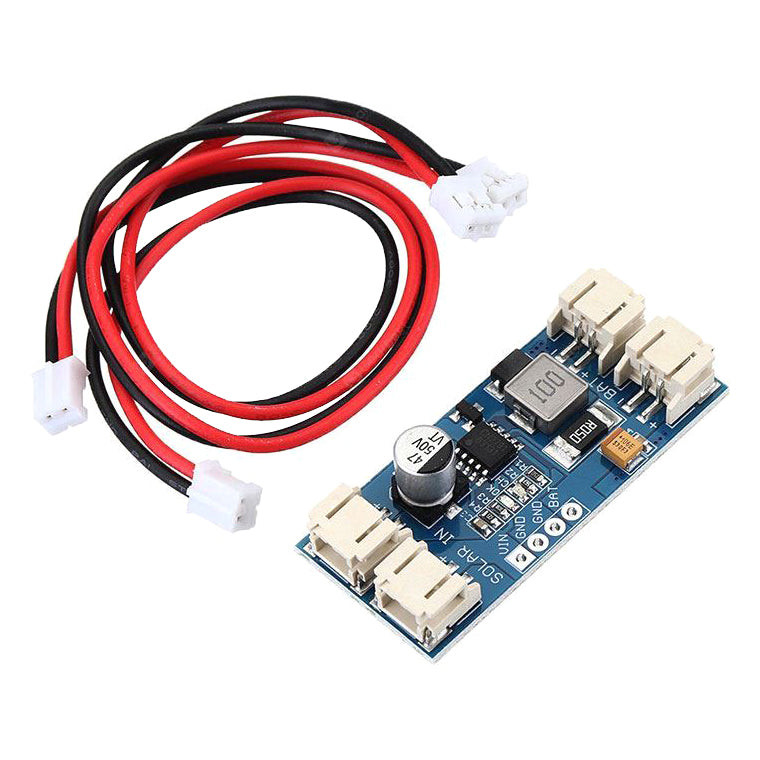

- 4x JST connector, including cables
- switching frequency: 300 kHz
- indication of charging status and completion of charging
- working temperature: –40 °C to +85 °C
- size: 45 x 20 x 9.5 mm

The product is not an independently functional unit, it requires professional assembly.
