Solar caravan set Victron Energy 130Wp (PWM)

Do you not want to pay high fees for an electrical connection at the campsite, or do you need energy anytime and anywhere outside of civilization? Simply use solar energy to charge the on-board battery in your caravan/motorhome.
We offer you, at a favorable price, the purchase of an optimally designed 130 Wp solar system for caravans and motorhomes with a 5-year warranty on the solar panel and solar controller. This system works with a 12V battery voltage. This is one of the most frequently sold and used solar systems in our offer.

This is an oversized item that does not qualify for free shipping. The delivery time from the time the order is placed may be extended by 3-4 business days.

Product parameters

The solar system includes these components

1x Solar panel Victron Energy 130 Wp/12V (dimensions 1200x668x30mm)
1x PWM solar controller Victron Energy LCD&USB 10A
1x Cable set 6mm2 incl. pressed MC4 connectors - length 15m

This set does not include a battery. If you do not have an on-board battery in your caravan, we recommend choosing a sealed AGM, GEL, or LiFePo battery from the solar battery section. We will be happy to help you with the right choice.

How much energy can this solar system produce on average with optimal sunlight in the Czech Republic?
spring approx. 328 Wh/day
summer approx. 452 Wh/day
autumn approx. 320 Wh/day
winter approx. 68 Wh/day

We recommend attaching the panel to the roof of a motorhome using a proven 68cm bracket set (not included in the price of the kit). A waterproof grommet for two cables leading from the panel and suitable adhesive is also available.

The Victron Energy LCD&USB 10A solar controller ensures completely unattended operation of the system, has a clear integrated LCD display. This will provide you with interesting information about the operation of the entire system. Directly on the front of the solar controller you will also find two USB outputs suitable for charging mobile phones, for example. After installation, you will select one of four preset battery types: AGM, GEL, liquid or LiFePO4

NOTE:
The kit includes a 6mm2 cable 15m long, at the ends of the cable are pressed MC4 connectors used for connection to the solar panel. The installing electrician will equip the ends of the cables leading to the solar controller with ferrules and suitable DC fuses. At the battery, the cable will be terminated with suitable lugs and suitable DC fuses according to the battery type and installation conditions.

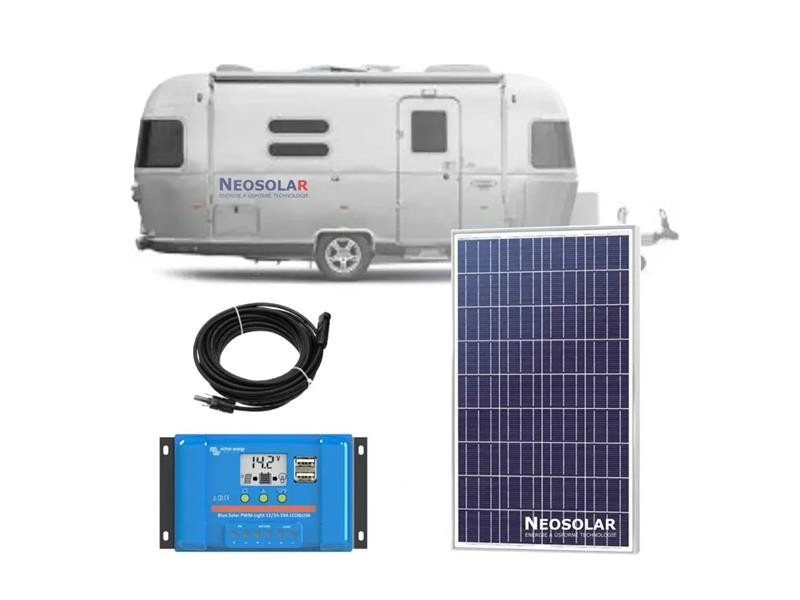

Set contents:
1x Solar panel Victron Energy 130Wp/12V Polycrystalline solar panel suitable for building a smaller solar system. The panel consists of 36 cells
1x PWM solar controller Victron Energy BlueSolar-LCD&USB 10A. PWM solar controller with integrated LCD and USB 10A 12V/24V. Suitable for small panels up to 120Wp
1x Solar cable with MC4 compatible connectors 15m. Solar cable 1x6mm2 with pressed MC4 compatible connectors with a total length of 15m
1x Instructions 130Wp Victron Energy caravan assembly (PWM)
