Solar caravan set Victron Energy 260Wp (PWM)

Optimally designed system at a bargain price, first-class Victron Energy components, solar panels with a total output of 260 Wp,

Do you not want to pay high fees for an electrical connection at the campsite, or do you need energy anytime and anywhere outside of civilization? Simply use solar energy to charge the on-board battery in your caravan/motorhome.
We offer you an optimally designed 260 Wp solar system for caravans and motorhomes with a 5-year warranty on solar panels and solar controller. This system works with a 12V battery voltage. This is one of the most frequently sold and used solar systems in our offer.

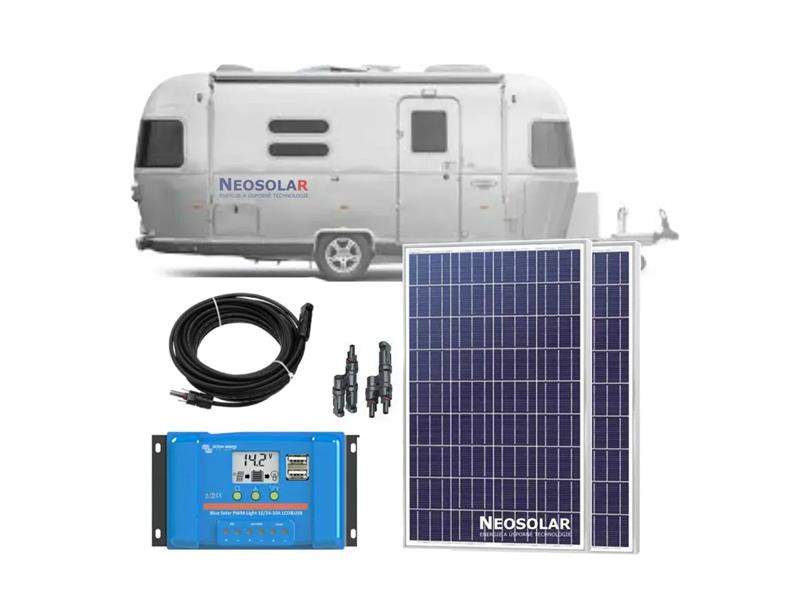

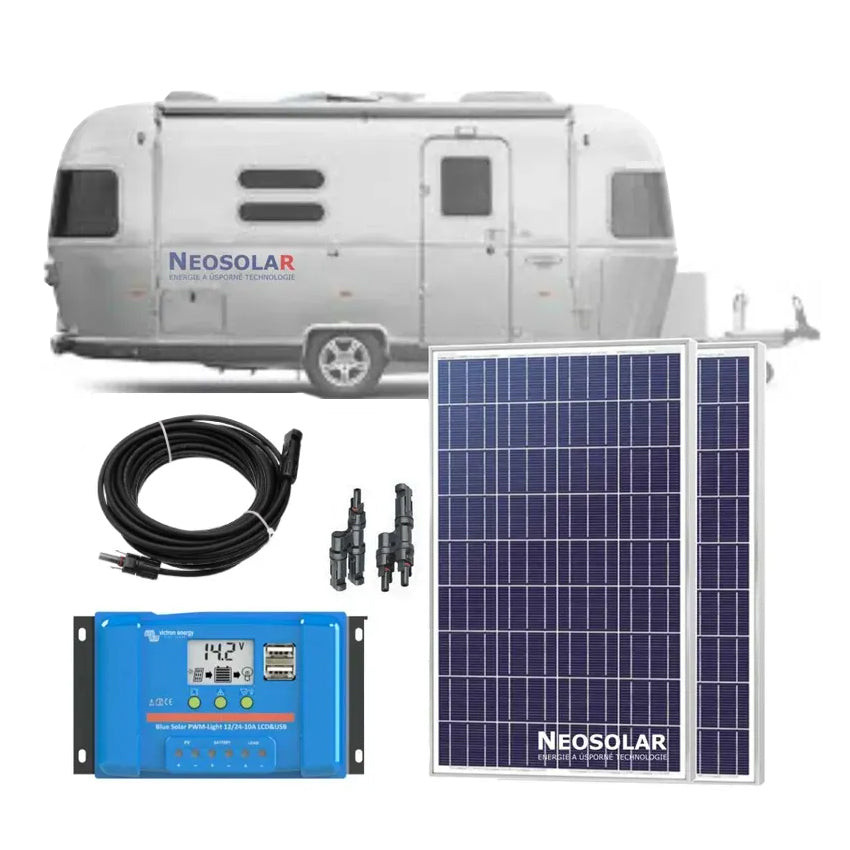

The solar system contains the following components:

2x Victron Energy 130Wp/12V solar panel (dimensions 1200x668x30mm)
1x Victron Energy LCD&USB 20A PWM solar controller
1x 6mm2 cable set incl. of pressed MC4 connectors - length 15 m
1x MC4 connector pair
This set does not include a battery. If you do not have an on-board battery in your caravan, we recommend choosing a sealed AGM, GEL, or LiFePo battery from the solar battery section. We will be happy to help you make the right choice.

How much energy can this 260Wp solar system produce on average with optimal sunlight in the Czech Republic?
- spring approx. 655 Wh/day
- summer approx. 904 Wh/day
- autumn approx. 655 Wh/day
- winter approx. 136 Wh/day

We recommend attaching the panels to the roof of your motorhome using a proven 68cm bracket set (not included in the set price). A waterproof grommet for two cables leading from the panel and suitable adhesive are also available.

The Victron Energy LCD&USB 20A solar controller ensures completely unattended operation of this system, with a clear integrated LCD display. This will provide you with interesting information about the operation of the entire system. Directly on the front of the solar controller you will also find two USB outputs suitable for charging mobile phones, for example. After installation, you can select one of four preset battery types: AGM, GEL, liquid or LiFePO4

NOTE:

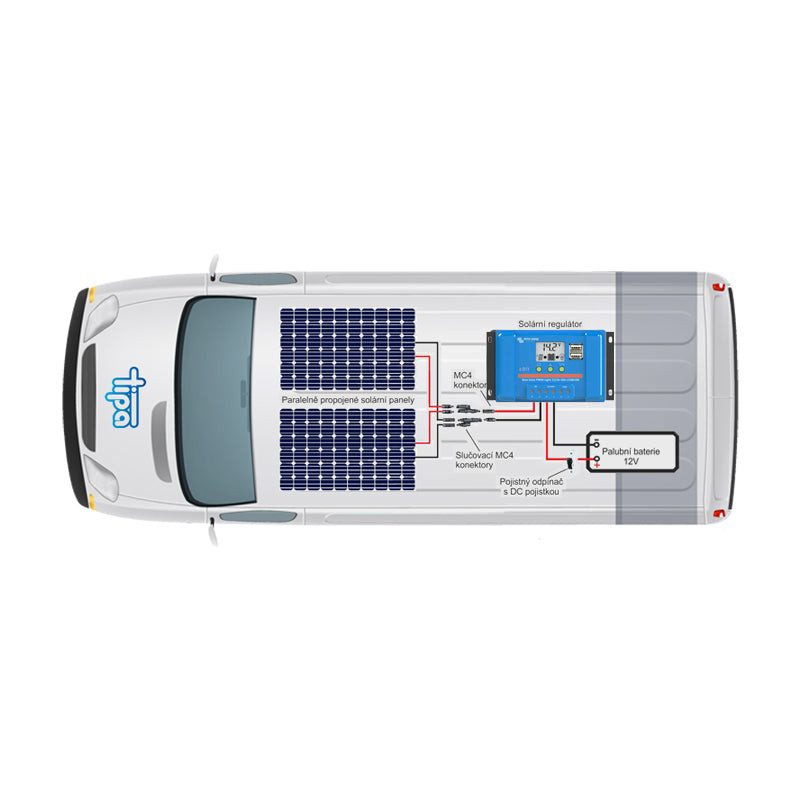

The kit includes a 6mm2 cable 15m long, with MC4 connectors pressed on the ends of the cable for connection to the solar panel. The installing electrician will equip the ends of the cables leading to the solar controller with ferrules and suitable DC fuses. For the battery, the cable will be terminated with suitable lugs and suitable DC fuses according to the battery type and installation conditions.

Set contents:
2x Victron Energy 130Wp/12V solar panel. Polycrystalline solar panel suitable for building a smaller solar system. The panel consists of 36 cells.
1x Victron Energy BlueSolar-LCD&USB 20A PWM solar controller. PWM solar controller with integrated LCD and USB 20A 12V/24V. Suitable for small panels up to 240Wp.
1x Solar cable with MC4 compatible connectors 15m. Solar cable 1x6mm2 with pressed MC4 compatible connectors with a total length of 15m.
1x Merging connectors - pair. Merging MC4 connectors are used for parallel connection of cables from solar panels. The connectors are designed for all types of panels from our offer.
1x Instructions 260Wp Victron Energy caravan (PWM) set
