Off grid set TRINA 445Wp, lead carbon bat. 150Ah, inverter 230VAC 1000W

Do you want to have electricity even where there is no electrical connection? With this off grid solar system, you can do it easily and without worries. The ideal solution for cottages, caravans, garden houses or places away from civilisation.
The kit works as a stand-alone solar generator with 230V AC mains voltage - independently and environmentally friendly. Thanks to the battery, which stores unused energy, the appliances will be powered continuously even at night.
The system will provide power for smaller electrical appliances (refrigerator, TV, computer, camera system, small power tools) or lighting. In short, this photovoltaic island system will provide energy even in places where there is no possibility of connecting to the grid.

Warrning: the installation of the solar system must only be carried out by a qualified professional!

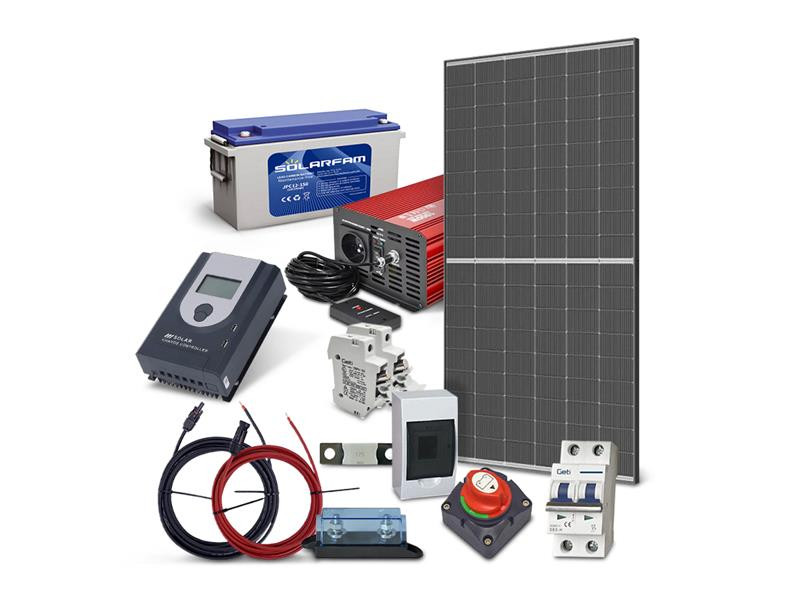

NOTE: The assembly photo is for illustration only. The components actually supplied may differ from the components shown in the image. This does not affect the listed parameters or assembly function.

The solar system contains the following components:

1 x Solar panel 445W Trina Solar TSM-NEG9R.28, Vertex S+ Dual Glass N-Type
1 x Solar controller MPPT SOLARFAM MPJ40A, 12-24V/40A
1 x Solar cable 2x10.0M-4mm2 red-black
1 x DC circuit breaker 16A double pole
1 x 16A fuse disconnector
1 x 50A fuse disconnector
1 x Battery disconnector
1 x 150Ah lead-carbon battery
1 x Voltage converter 12V/230V 1000W pure sine wave D.O. 1000W
1 x MEGA-fuse holder
1 x DC MEGA fuse holder for photovoltaic systems 175A/80V
1 x TSM-4 plastic 1x4P wall switchboard

Average daily energy production in kWh
- in January approx. 450 Wh/day
- in May approx. 1550 Wh /day
- in July approx. 1650 Wh/day
- in September approx. 1290 Wh/day
- in December approx. 400 Wh/day
For the whole year the system can produce about 300 kWh.
The calculated output is assuming a south-facing orientation, no shading, with a panel inclination of 35 degrees

- install a 16A fuse disconnector to the PV panel on the positive cable between the panel and the controller
- install a 50A fuse disconnector on the positive cable between the battery and the controller
- Install the MEGA main fuse as close as possible to the positive terminal of the battery

The assembly does not include mounting components. They must be ordered separately according to the planned installation method.
