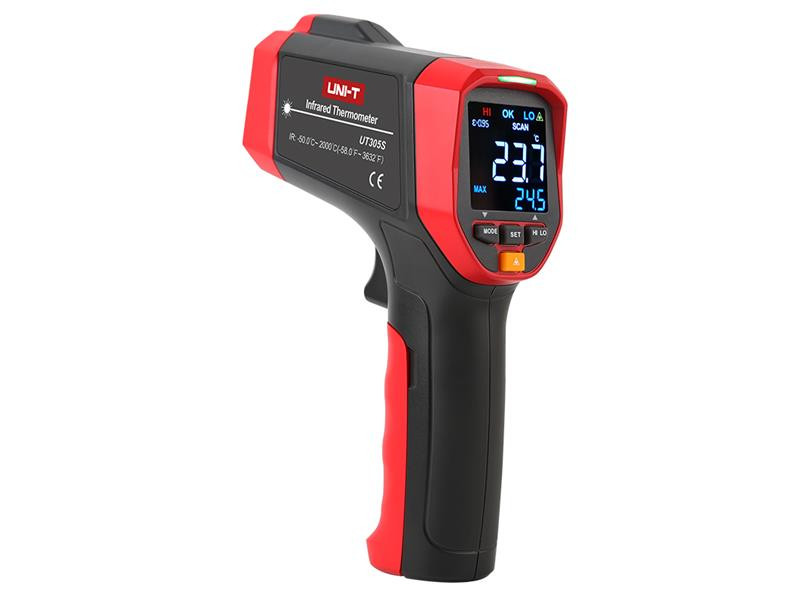

Infrared Thermometer UNI-T UT305S

The UT305S professional non-contact infrared thermometer can quickly and accurately determine the surface temperature between -50 °C and +2000 °C by measuring the infrared energy radiated from the target surface. For easier and intuitive aiming of the device on the target surface, a ring laser is built in, which indicates the correct aiming of the thermometer. The ratio of the distance to the diameter of the measured surface is 50: 1 with this instrument. This thermometer is resistant to falling from a height of 1 meter. It is possible to preset the emissivity of the measured surface in the range of 0,1 to 1,0. The indication of preset functions and measured values ​​is provided by a clear and high-contrast EBTN color display and the limit values ​​are indicated by a buzzer and on the display. Indication of minimum, maximum and average temperatures and deviations from the average (MIN, MAX, AVG, DIF) is possible. The thermometer automatically shuts off to reduce power consumption if left unused for 15 seconds in HOLD mode and 10 seconds in other modes. The temperature measurement time is up to 250 msec in 95% of cases.

This non-contact infrared thermometer can be used in a variety of areas, such as the food industry, machine maintenance, metalworking, cold stores and other industries.


Product parameters:

- infrared thermometer for non-contact measurement of surface temperatures
- temperature range - 50 °C to + 2000 °C, can be switched to ° Farenheit
- delineation of the measured surface by laser indication
- mounting hole for tripod
- data storage: 99
- the ratio of the distance to the diameter of the measured surface is 50: 1 with this instrument
- contrasting EBTN color display with dimensions of 35 x 35 mm
- indication of limit values ​​by means of a buzzer, on the display and the function of the LED tricolor
- power supply: 9 V alkaline battery



Technical parameters :

- temperature range: -50 ℃ to + 2000 ℃ (-58 ℉ to 3632 ℉)
- measurement accuracy in the range -50 °C to 0 °C: ± (1 ℃ + 0,1 °C / °C)
- measurement accuracy between 0 °C and 2000 °C: ± 1 ℃ or ± 1% (whichever is greater)
- measurement accuracy between -58 °F and 32 °F: ± (2,0 °F + 0,1 °F / °F)
- measurement accuracy between 32 °F and 3632 °F: ± 2,0 °F or ± 1% (whichever is greater)
- resolution: 0,1 °C / 0,1 °F
- spectral response: 8μm to 14μm
- response time in 95% of cases: ≤250 ms
- distance to diameter of the measured surface: 50: 1
- class 2 ring laser: wavelength 630 nm to 670 nm, output power ≤1mW
- display: contrasting color EBTN with backlight measuring 35 x 35 mm
- setting of emissivity of the measured surface: in the range of 0,1 to 1,0; default 0,95
- measurement lock: yes
- power supply: 9 V alkaline battery
- battery life: continuous temperature measurement for 10 hours (laser on + display illumination)
- automatic shut-off on inactivity: yes
- low battery indication: yes
- drop test from a height: 1 m
- temperature alarm mode: HI/LO (High / Low alarm with acoustic indication)
- MAX/MIN/AVG/DIF suspension: yes
- operating temperature: 5 ℃ to 50 ℃ (23 ℉ to 122 ℉)
- operating humidity: <90% RH (non-condensing)
- storage temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- product color: red and gray
- net product weight: 310 g
- product size: 179 x 126.5 x 53 mm


Package contents :

- thermometer UT305S: 1pc
- 9 V battery: 1pc
- cover: 1pc
- manual: 1pc


Packaging for wholesale customers:

- standard quantity in a carton: 10pcs
- dimensions of standard carton: 425 x 335 x 365 mm
