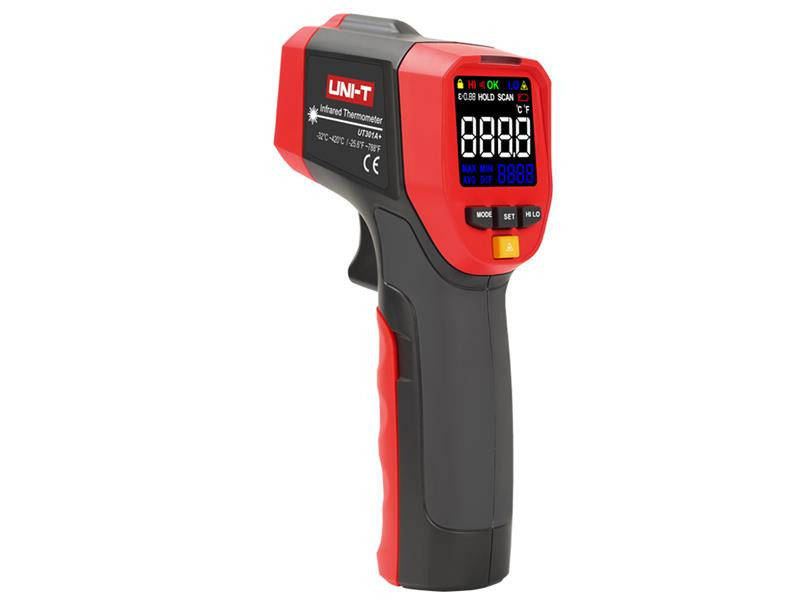

Infrared Thermometer UNI-T UT301A+

Infrared Thermometer UNI-T UT301A+
The new UT301 + contactless thermometer range is a rugged and easy to use infrared thermometer with high accuracy / energy (95%) / repeatability. It has an adjustable high / low temperature visual / audible alarm that responds faster than 250 ms, helping you quickly detect anomalies. You can preset and store 5 sets of emissivity values ​​and quickly switch emissivity to different surfaces for more accurate results. With lock measurement, MAX / MIN / AVG / DIFF hold and tripod mount, the UT301A + is ideal for processes that require temperature monitoring. UT301A+ can be used to control power distribution / transportation equipment, HVAC maintenance / equipment, vehicle troubleshooting and other applications. Color backlit EBTN display. Can be mounted on a tripod with a standard threaded hole.


Product parameters :

- temperature range: -32 to 420 °C
- units of measurement: °C / °F
- ratio of measurement distance to measurement area diameter 12 : 1
- possibility to preset emissivity of surfaces
- large multiline LCD display EBTN 30 x 30mm


Technical parameters :

- laser power: <1mW (class 2)
- display size: 30 x 30 mm
- temperature measuring range: -32 °C to 420 °C (-25.6 °F to 788 °F)
- D to S ratio: 12 : 1 (95%)
- emissivity: 0.1 ~ 1.0 (adjustable, stores 5 sets of preset values)
- response time: ≤250 ms (95% measurement)
- spectral response: 8 μm - 14 μm
- accuracy >0 °C: ±1,5 °C or ± 1,5%
- accuracy ≤0 °C: ±(1.5°C + 0.1°C/°C)
- accuracy >32 °F: ±3,0°F or ± 1,5%
- accuracy ≤32 °F: ±(3.0°F + 0.1°F/°F)
- repeatability of measurement: 0,7 °C or 0,7% (1,5 °F or 0,7%)
- Hold: yes
- automatic shutdown: yes
- Low battery indication: yes
- LED alarm: yes at high / low temperature
- audible warning: yes at high / low temperature
- Tripod mounting hole: yes
- measurement modes: MAX / MIN / AVG / DIFF
- operating temperature: 0°C to 50°C (32°F to 122°F)
- storage temperature: -20 °C to 60 °C (-4°F to 140°F)
- operating humidity: <90% RH (non-condensing)
- drop test: 1 m
- power supply: 9V battery
- product color: red and gray
- net product weight: 204 g
- product dimensions: 160 mm x 74 mm x 48 mm


Contents of the standard individual package :
- gift box
- thermometer UNI-T UT301A+
- carrying bag
- 9V battery
- operating instructions
