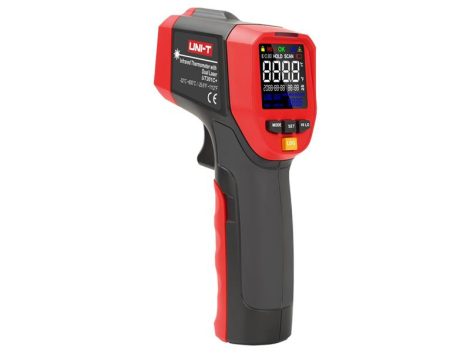

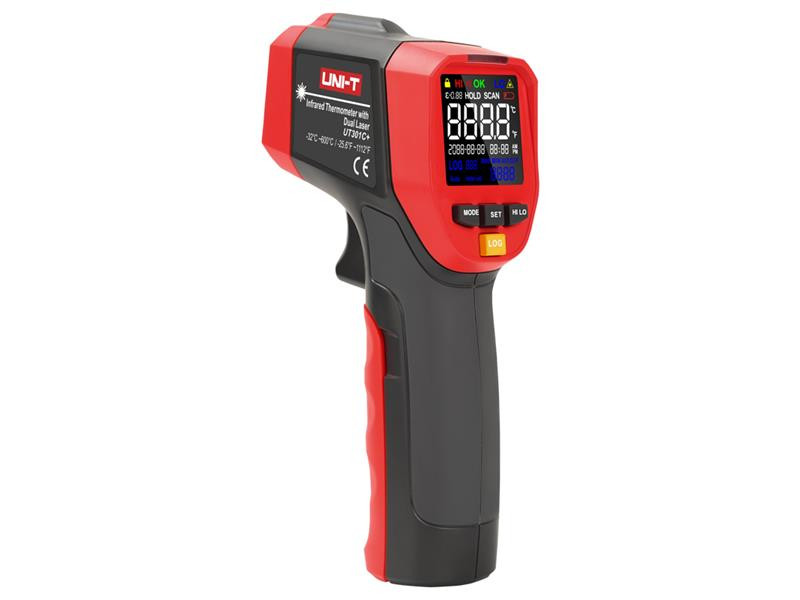

Infrared Thermometer UNI-T UT301C+

Infrared Thermometer UNI-T UT301C+
The non-contact thermometer UT301C+ is a durable and easy-to-use infrared thermometer with high accuracy / energy (95%) / repeatability. It has an adjustable high and low temperature visual/audio alarm that responds faster than 250ms, helping you quickly detect anomalies. You can preset and save 5 sets of emissivity values ​​and quickly switch the emissivity according to different surfaces to get more accurate results. With lock measurement, MAX / MIN / AVG / DIFF hold and tripod mount, the UT301C+ is ideal for processes that require temperature monitoring. The UT301C+ can be used for power distribution / transmission equipment inspection, HVAC / equipment maintenance, vehicle troubleshooting and other applications. EBTN color backlit display. Can be attached to a tripod with a standardized threaded hole.


Product parameters:

- range of measured temperatures: -32 to 600 °C
- measurement units: °C/°F
- the ratio of the measurement distance to the diameter of the measurement area 12:1
- possibility to preset the emissivity of surfaces: 0.1 to 1.0
- large multi-line LCD display EBTN 30 x 30 mm
- ring laser
- recording of 99 groups of temperature measurements
- date and time display
- user defined visual and acoustic alarm
- not for medical purposes

Ring Laser
Principle: this type of thermometer generates a laser ring (circle) around the area where the temperature is measured. The circle represents the entire measured area, which is useful for approximating a larger area.
Advantages: the ring laser makes it easy to determine the total measurement area, which is practical when measuring larger areas or surfaces with uneven temperature.
Application: suitable for applications where it is not necessary to focus precisely on a single point, but rather on a wider area (e.g. measuring the surfaces of engines or pipes).


Technical parameters:

- laser power: <1mW (class 2)
- display size: 30 x 30 mm
- temperature measurement range: -32 °C to 600 °C (-25.6 °F to 1112 °F)
- ratio D to S: 12 : 1 (95%)
- emissivity: 0.1 to 1.0 (adjustable, stores 5 sets of preset values)
- response time: ≤ 250 ms (95% measurement)
- spectral response: 8 μm - 14 μm
- accuracy >0°C: ± 1.5°C or ± 1.5%
- accuracy ≤0°C: ± (1.5°C°C + 0.1°C /°C)
- accuracy >32°F: ± 3.0°F or ± 1.5%
- accuracy ≤32°F: ± (3.0°F + 0.1°F /°F )
- measurement repeatability: 0.7 °C or 0.7% (1.5°F or 0.7%)
- data storage (Hold): yes
- data storage: yes 99 groups
- planned measurement: yes
- automatic shutdown: yes
- low battery indication: yes
- LED alarm: yes at high/low temperature
- sound warning: yes at high/low temperature
- tripod mounting hole: yes
- measurement modes: MAX / MIN / AVG / DIFF / Hold
- operating temperature: 0°C to 50°C (32°F to 122°F)
- storage temperature: -20°C to 60°C (-4°F to 140°F)
- operating humidity: <90% RH (non-condensing)
- drop test: 1 m
- power supply: 9V battery
- product color: red and gray
- net product weight: 204 g
- product dimensions: 160 mm x 74 mm x 48 mm


Contents of standard individual packaging:
- box
- UNI-T UT301C+ thermometer
- carrying bag
- 9V battery
- operating instructions
