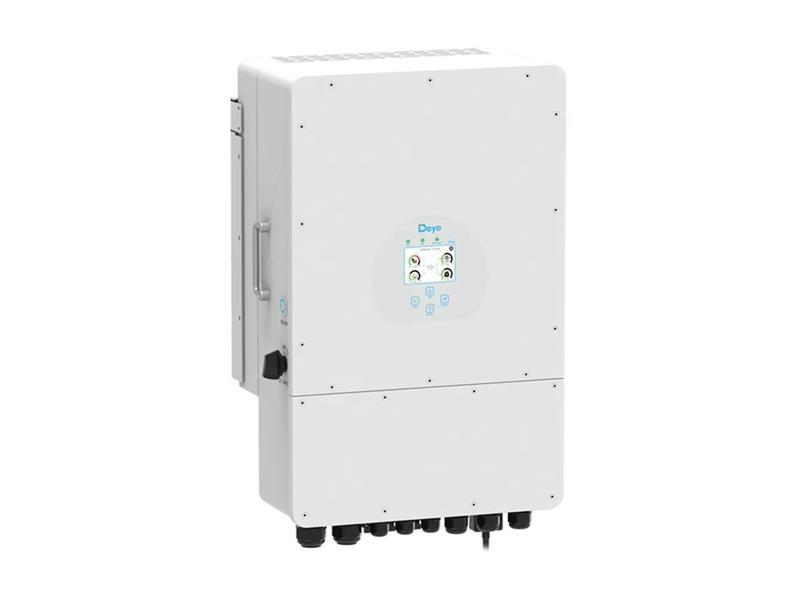

Hybrid inverter DEYE SUN-10K-SG04LP3-EU (10kw)

The versatile Deye SUN-10K-SG04LP3-EU, low-voltage 3-phase hybrid inverter with wall mount combines a solar inverter and a battery charger. It supports asymmetric 3-phase output with a range of 0 to 5 kW per phase, 100% overload capability for 10 s, extending usability to the absolute maximum. The inverter is compatible with low voltage 40V to 60V batteries. Communication with BMS takes place via CAN or RS485 interface and is fully compatible with lead and lithium batteries of many brands. The color LCD display provides a user-friendly interface for both system overview and configuration (battery management, AC/solar charging depending on different applications, etc.). The biggest advantage of this converter is the adjustable "smart load" input / output, where you can connect a generator, mains converter, or heating element for heating water. The options of this port offer you to use similar functions as the wattrouter.


Main parameters

Low voltage versatile design
3-phase asymmetrical output
Two MPPT trackers
Three string inputs (6 connectors)
MPPT working voltage 200 to 650 V
Intelligent monitoring platform
Unique functions Smart Load, Grid peak shaving, phase balancing
Possibility to connect up to 10 parallel units
6 time windows for charging and discharging

This device complies with the New Green Savings subsidy program (SVT30772, SVT32118)


Technical parameters

Battery
Battery type: lithium-ion / lead-acid
Battery voltage: 40 to 60 VDC
Max. charging current: 210 A
Max. discharge current: 210 A
Number of battery inputs: 1

PV input
Max. PV power: 13000 W
Max. DC Voltage: 800V
Starting voltage: 160 V
Max. input short-circuit current: 34 + 17 A
Max. input operating current: 26 + 13 A

AC input / output
Rated active power: 10000 W
Rated reactive power: 11000 VA
Max. overload: 1.5x rated power after 10s
Rated voltage: 220 / 380 V, 230 / 400 V
Connection type: 3L + N + PE
Mains frequency: 45 to 65 Hz

Efficiency
Max. efficiency: 97.6%
EURO efficiency: 97%
MPPT efficiency: >99%

Protection function
DC polarity reversal
AC current overload
AC overvoltage
AC output short circuit
Detection of the DC component on the AC output
Overvoltage during a sharp drop in load
Leakage current detection in PE
Arc interrupter
Monitoring of the electrical network
Island isolation function
Earth fault detection
DC input switch
DC terminal block resistance detection
Residual Current Device (RCD)
Overheating
Power surges
Surge Protection Class: Type II (AC), Type II (DC)

Other parameters
Working temperature: -40°C to +60°C
Air humidity: 0 - 100%
Max. altitude: 2000 m
Noise level: ≤ 45 dB
Cooling: active intelligently controlled
Topology: non-isolated
Network standards: IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Overvoltage protection class: OVC II (DC), OVC III (AC)
Dimensions: 281 x 422 x 702 mm (without connectors and brackets)
Weight: 33,6 kg
Degree of protection: IP65
