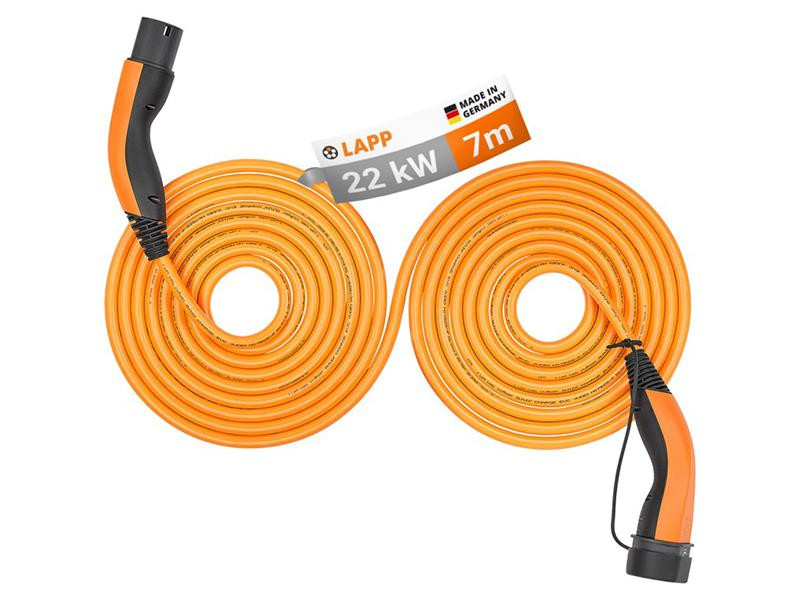

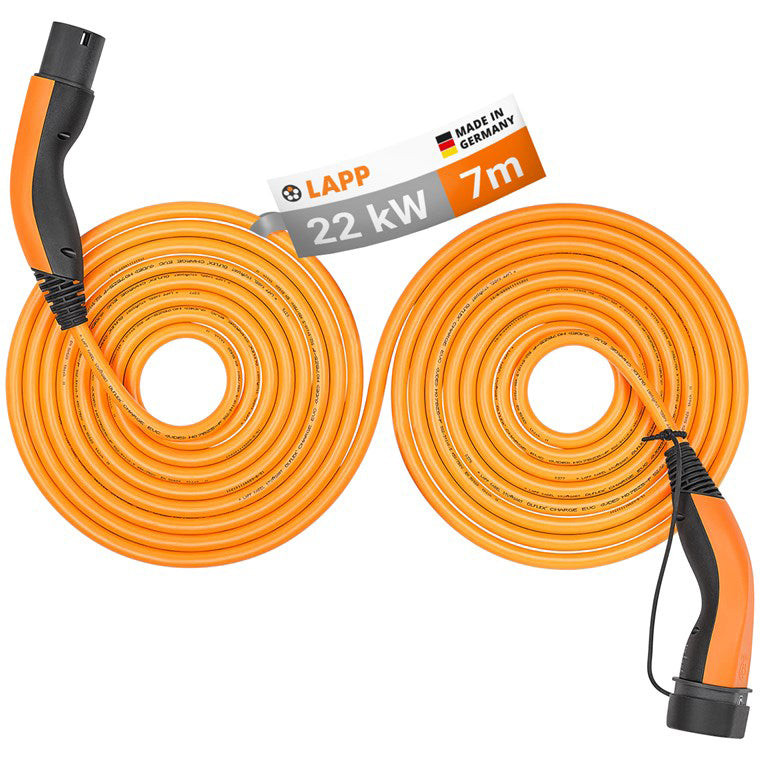

Charging cable LAPP 75746 type 2 22kW 32A 3 phase 7m for electric car

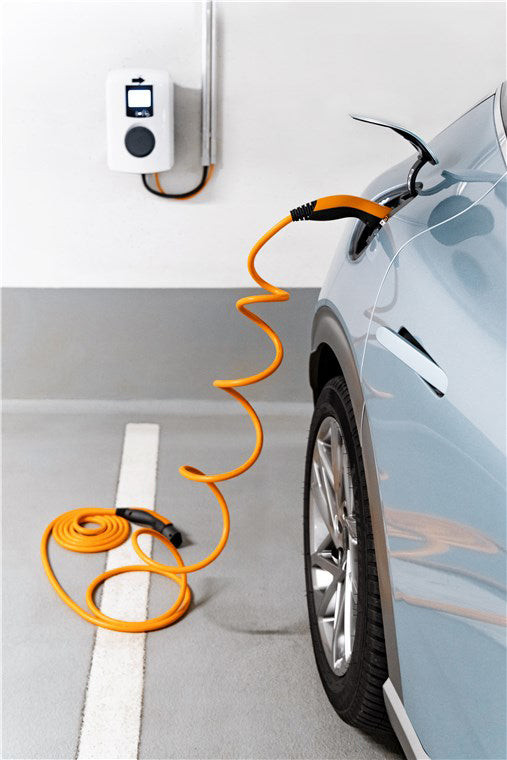

LAPP HELIX Type 2 charging cables connect your electric vehicle to a charging station, charging pole or wallbox – for easy charging at home or on the go. Simply connect the cable coupler to the car and the plug to the power source. The charging process is automatically started and ended by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

Patented self-winding double-helix cable that rolls up into two spirals after use – for quick, tangle-free storage

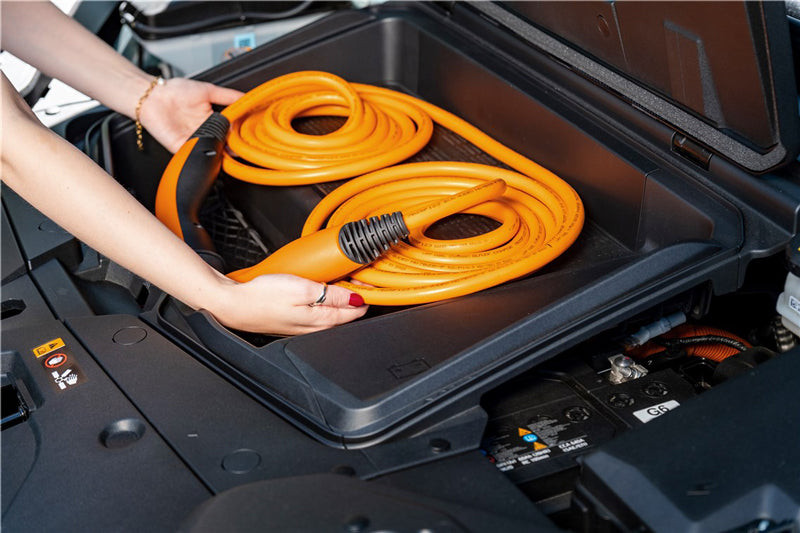

The two spiral cable spirals can be stacked on top of each other to save space and are easy to handle thanks to their low weight
The Type 2 charging cable from LAPP enables easy and fast charging with up to 22 kW at a public or private charging station or wallbox.
High compatibility: In addition to 3-phase charging of 11 kW, the cable also supports 1-phase charging of 7.4 kW and 3.7 kW
Highly robust cables and plugs with vehicle-resistant silver-plated contacts provide exceptional durability
Oil-resistant and longitudinally waterproof EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
Mode 3 charging cable manufactured according to the current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connection (Combo 2).

Technical parameters:

Connection:
Connection, type: female type 2 plug
Connection 2, type: male type 2 plug
Power:
Load capacity up to: 22 kW
Charging mode: Mode 3
Nominal voltage: 440 V (AC)
Maximum current capacity: 32 A
Cable:
Internal conductor cross-section: 6 mm²
Cable type: HELIX cable
Cable sheath material: ÖLFLEX® CHARGE
Cable length: 7 m
Protection class: IP55
Colour: orange
Weight: 4150 g
