OSRAM charging cable type 2 11kW 16A 3 phase 5m for electric car

Take OSRAM into an emission-free future

Discover the world of electric driving with OSRAM.

Charge your Type 2 all-electric or hybrid vehicle from any 16 A (3-phase) charging unit or station equipped with a Type 2 connection point.

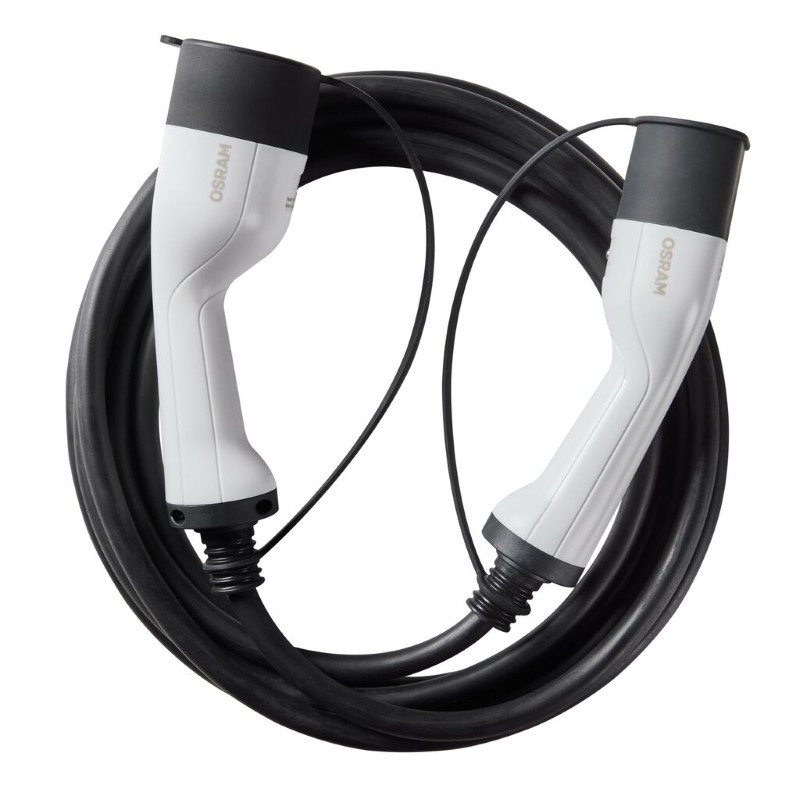

The 5 m cable provides excellent connectivity at home and on the road.

A number of excellent technical specifications allow you to travel with the cable anywhere and charge.

A temperature range of -40°C to +85°C gives you the ability to travel in the hottest and coldest climates and charge your vehicle without worry.

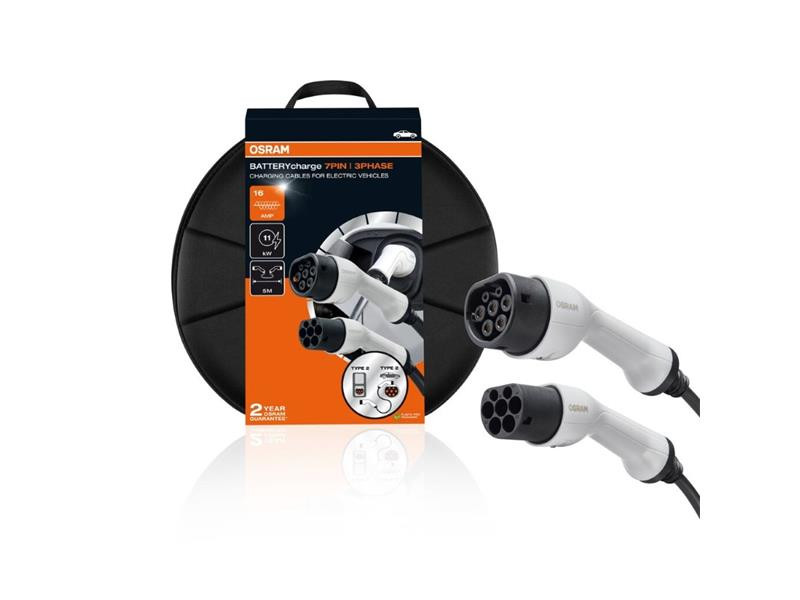

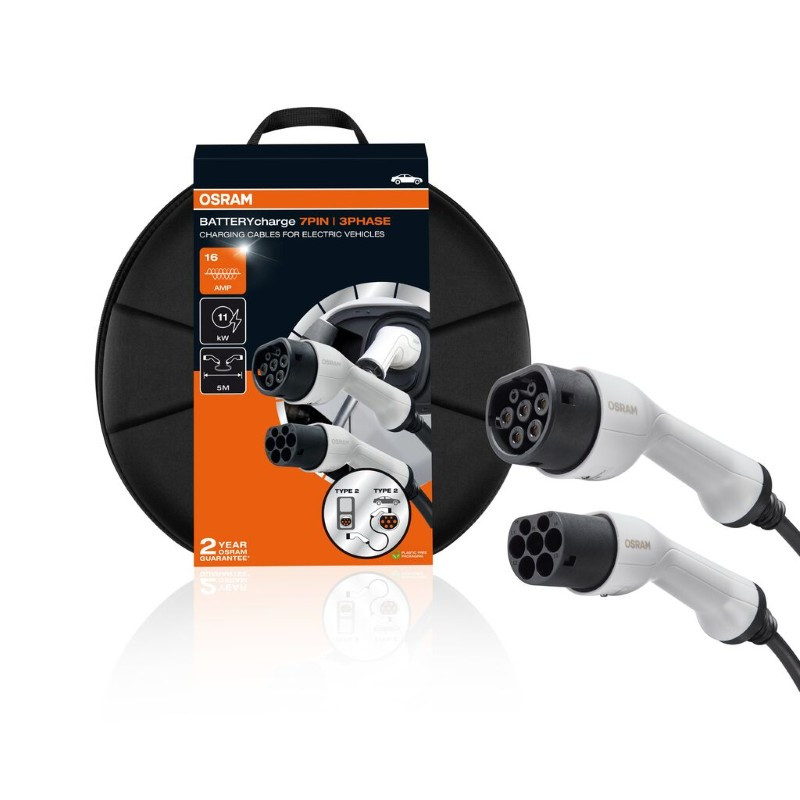

Also included is a durable, compact storage bag that neatly stores the cable after charging.


Specifications:

Rated power: 11,000 W
rated voltage: 480 V
Rated current: 16 A
number of phases: 3
Dimensions: height 120 mm / length 5000 mm / width 70 mm
operating temperature: - 40°C to + 85°C
Certificates & Standards: IK Class / IK10
Standards: TÜV / CE
protection type: IP65
vehicle connector type: Type 2
Charge point connector type: Type 2
