OSRAM charging cable type 2 3,6kW 16A 1 phase 5m for electric car

Take OSRAM into an emission-free future

Discover the world of electrical control with OSRAM.

Charge your Type 2 all-electric or plug-in hybrid vehicle at any 16A (1-phase) charging station equipped with a Type 2 plug.

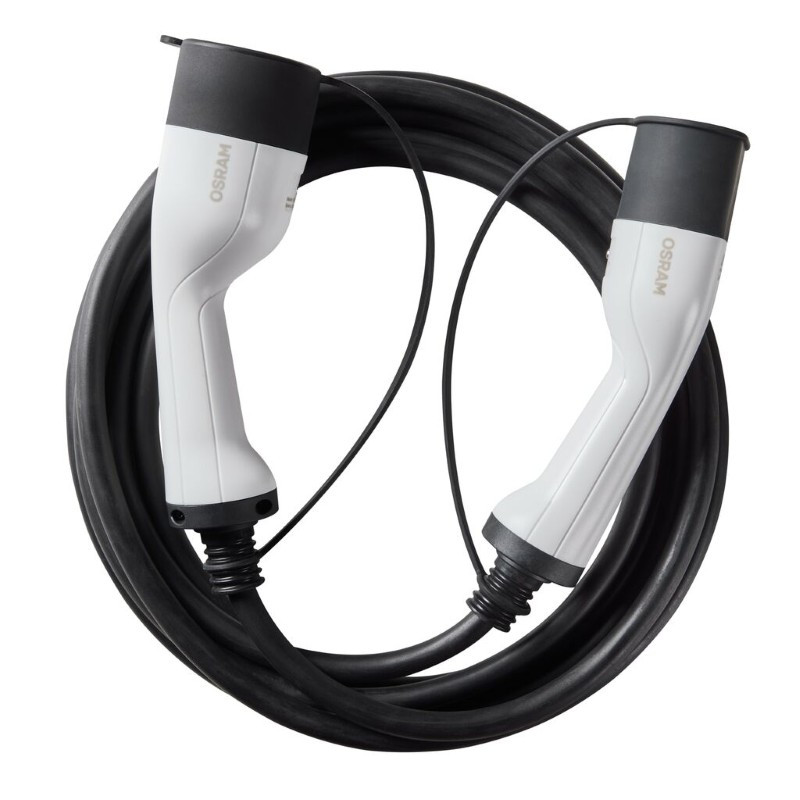

The charging cable is equipped with ergonomic handles for optimal handling and has a cable length of 5 metres.

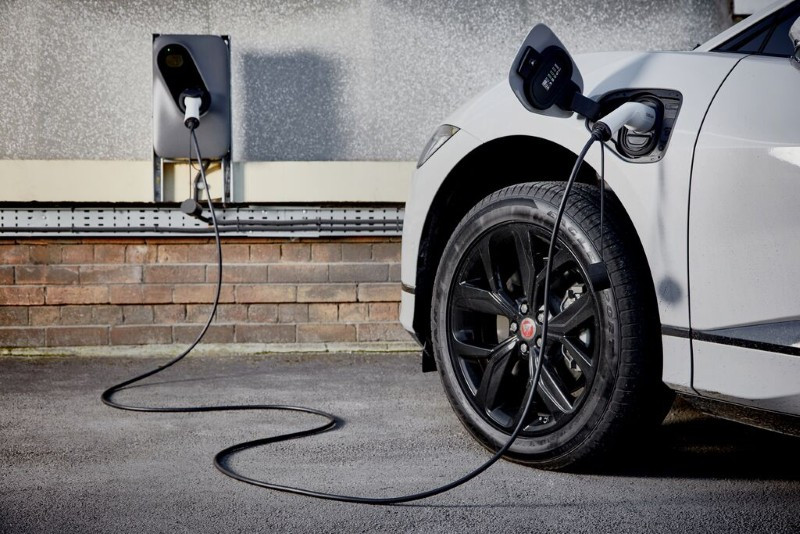

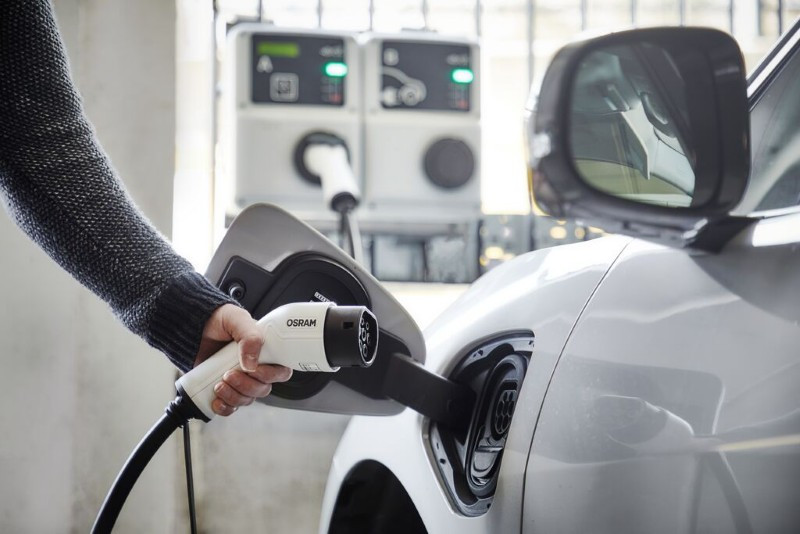

It is suitable for use at public charging stations and at home.

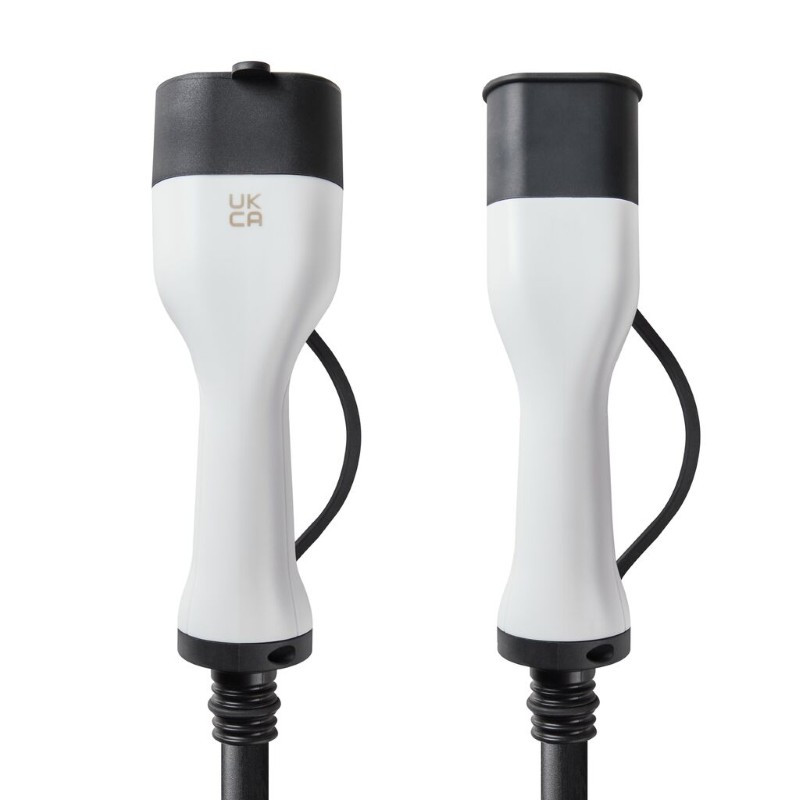

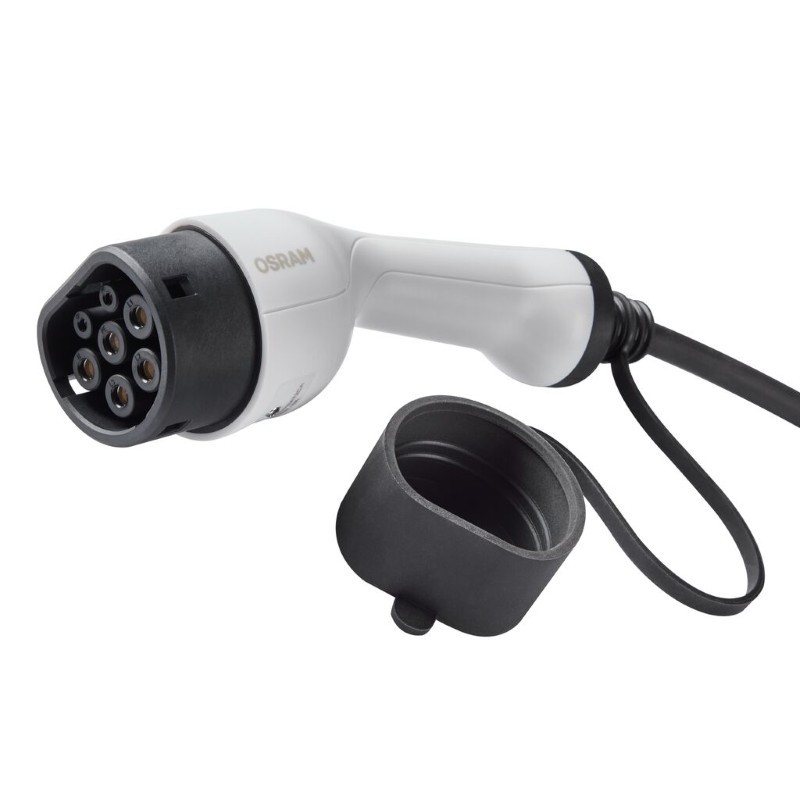

The charging cables are also equipped with dust caps and tested for waterproofness to IP65 and impact resistance to IK10.

Even after connection, the electrical contact points are protected against the ingress of dust and splashing water in accordance with IP65 and IK10.

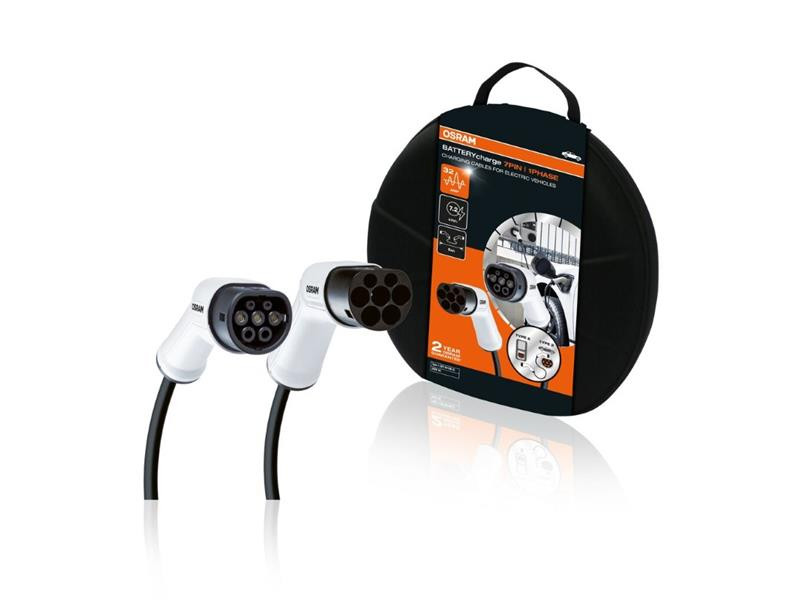

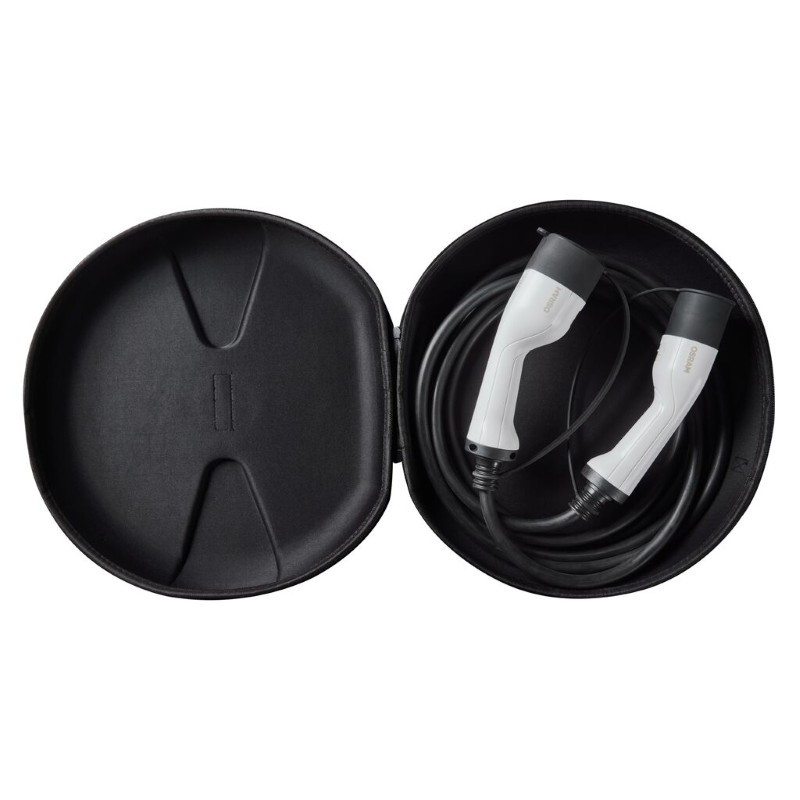

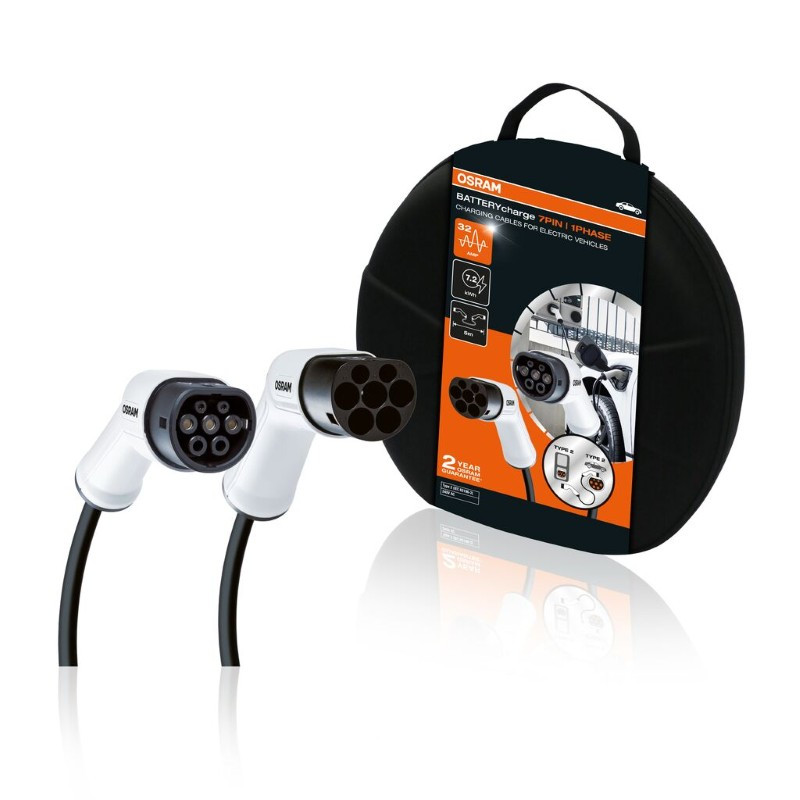

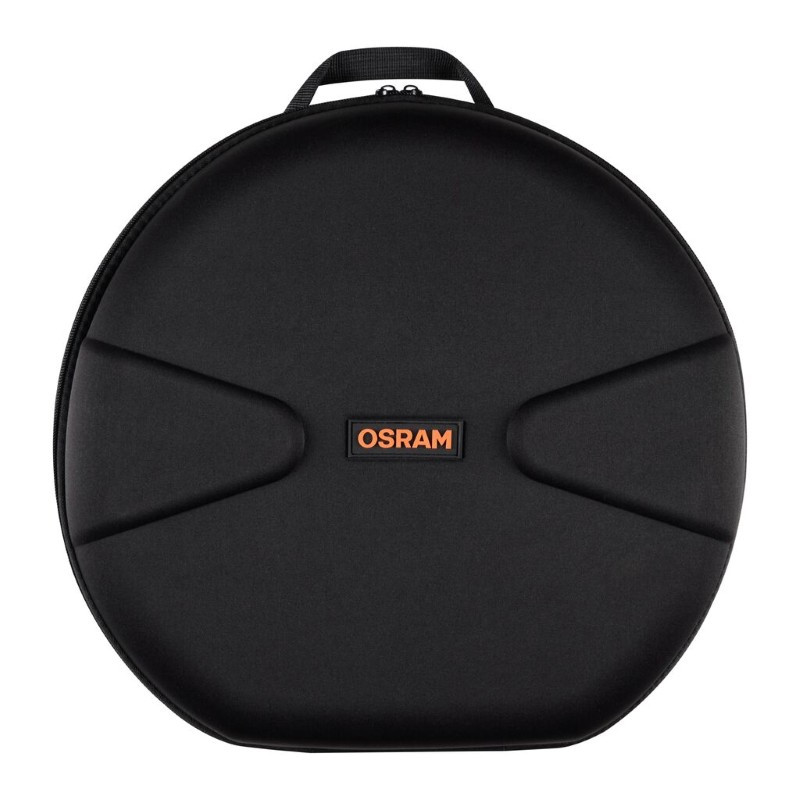

Also included is a durable, compact storage bag for neatly storing the cable after charging.

In addition, the product is TÜV and CE certified and comes with a 2-year warranty.

Technical specifications:

rated power: 3600 W
rated voltage: 240 V
rated current: 16 A
number of phases: 1
dimensions: height 120 mm / length 5000 mm / width 70 mm
operating temperature: - 40°C to + 80°C
Certificates & Standards: IK Class / IK10
Standards: TÜV / CE
protection type: IP65

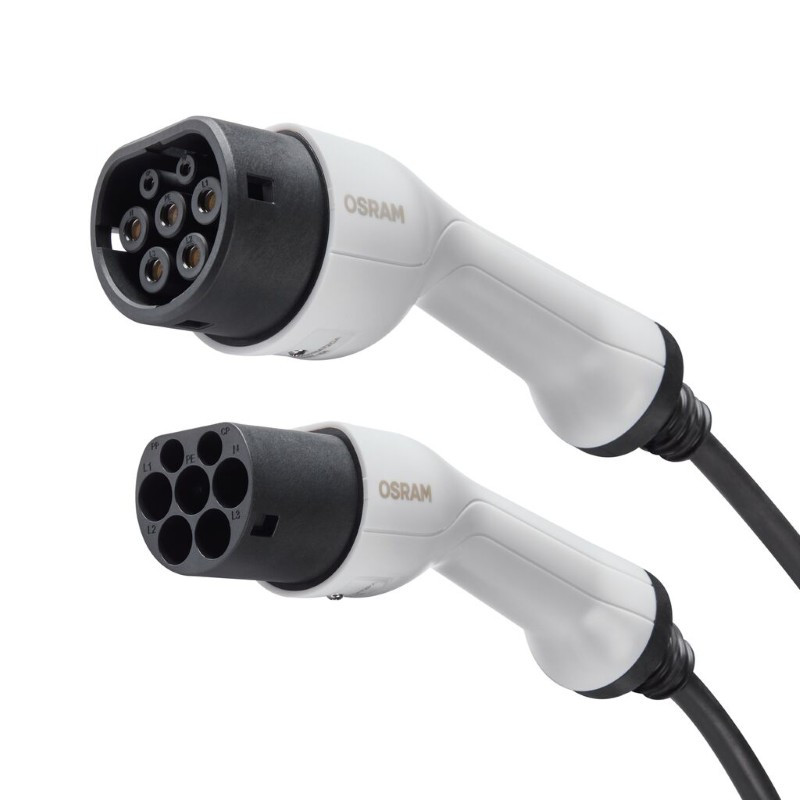

vehicle connector type: Type 2
Charge point connector type: Type 2
