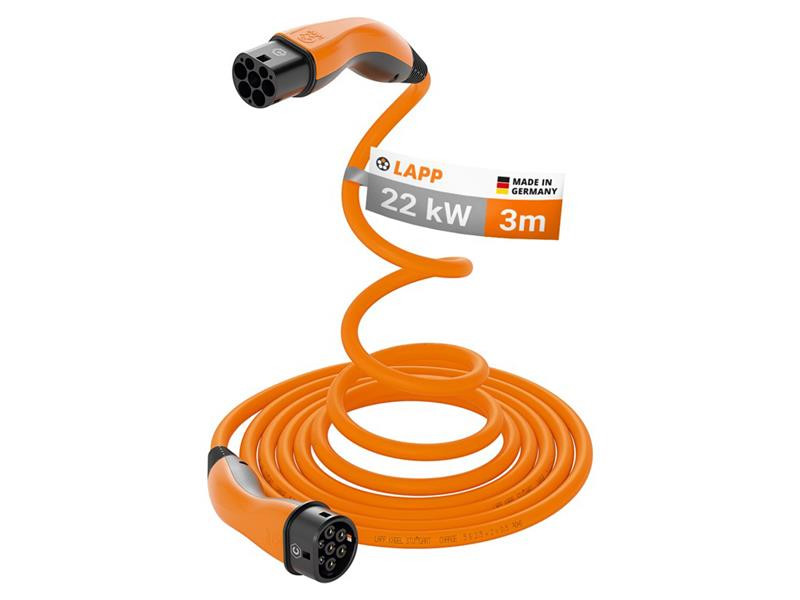

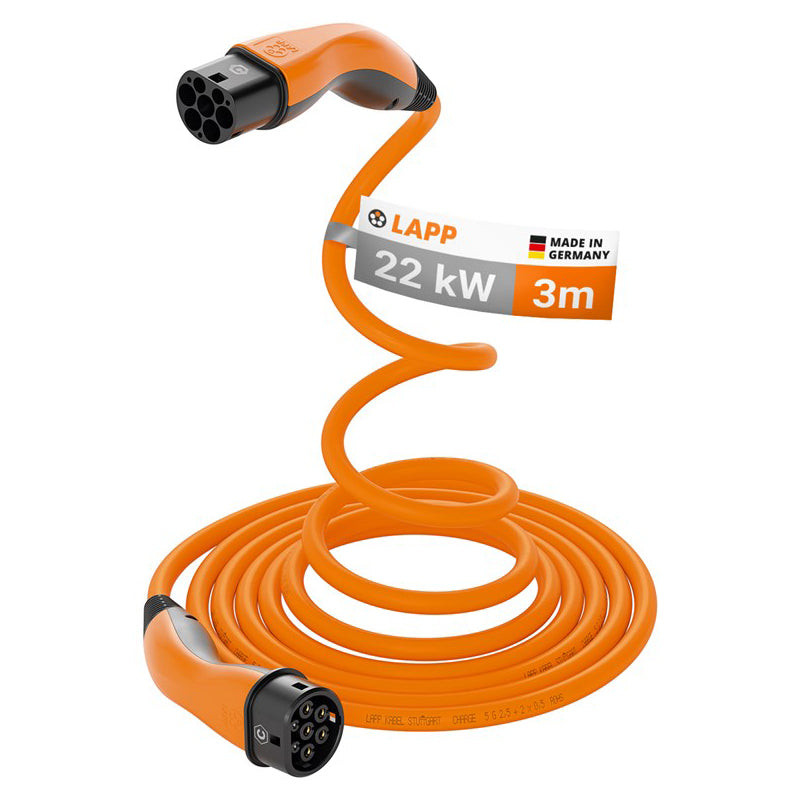

Charging cable LAPP 75745 type 2 22kW 32A 3 phase 3m for electric car

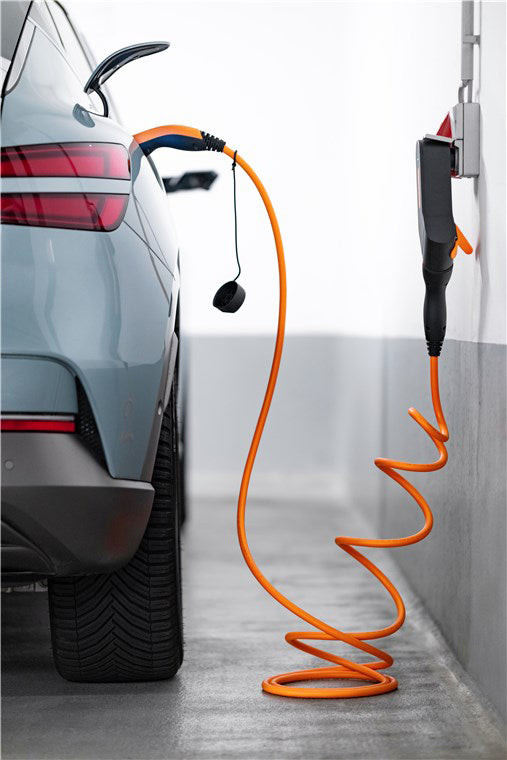

LAPP HELIX Type 2 charging cables connect your electric vehicle to a charging station, charging column or wallbox – for easy charging at home or on the go. Simply connect the cable coupler to the car and the plug to the power source. The charging process is automatically started and ended by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

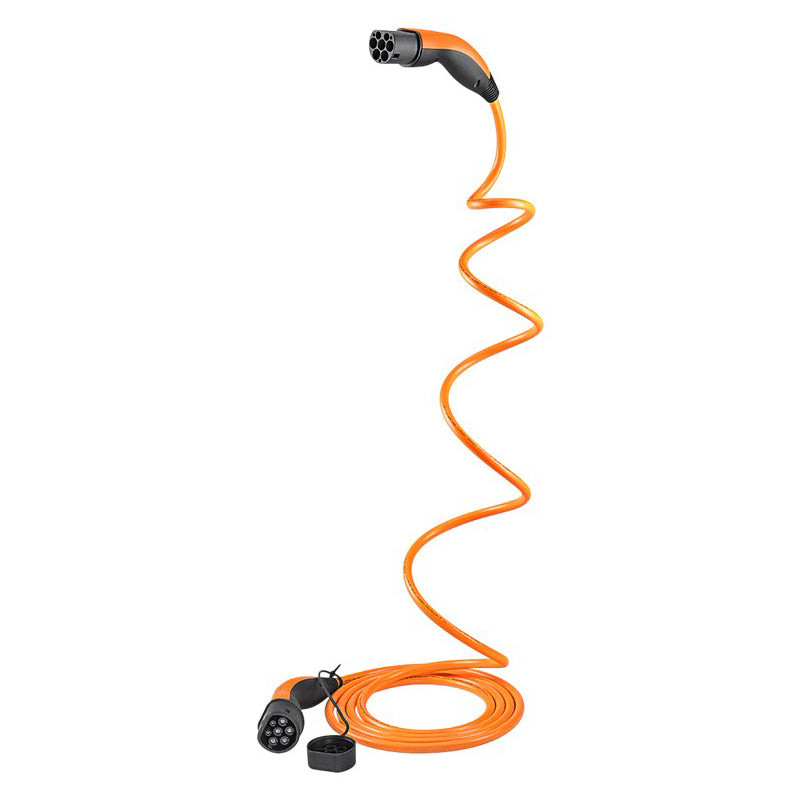

Patented, self-retracting cable with shape memory that rolls up into a spiral after use and can be quickly stored away - tangle-free
The Type 2 charging cable from LAPP enables easy and fast charging with up to 22 kW at a public or private charging station or wallbox.

High compatibility: In addition to 3-phase charging of 11 kW, the cable also supports 1-phase charging of 7.4 kW and 3.7 kW
Highly robust cables and plugs with vehicle-resistant silver-plated contacts provide exceptional durability
Oil-resistant and longitudinally waterproof EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle due to its low weight.
Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations and also with CCS connection (Combo 2)

Technical parameters:

Connection:

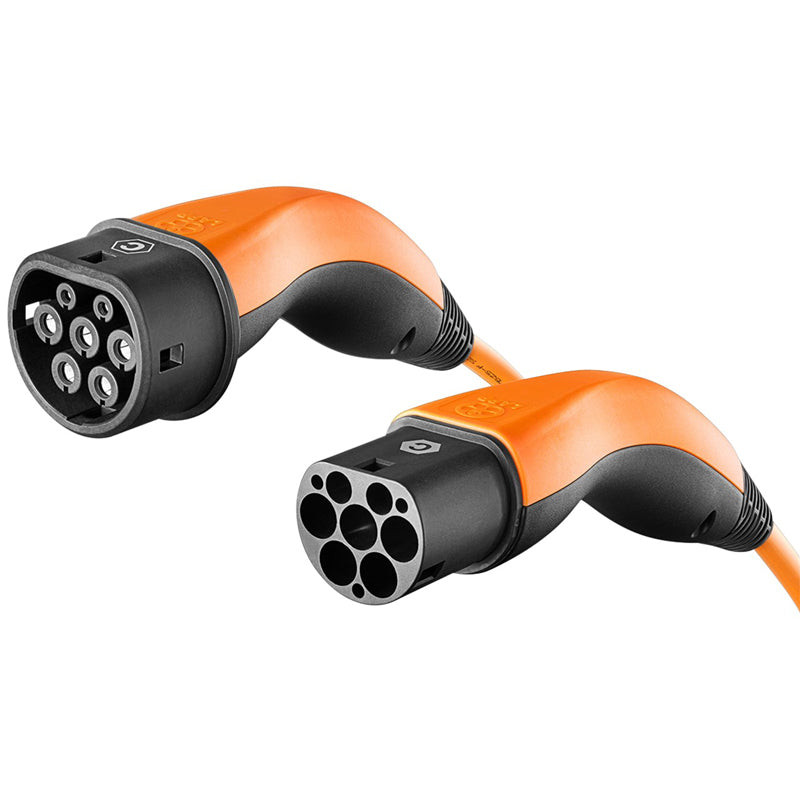

Connection, type: Type 2 female plug
Connection 2, type: Type 2 male plug
Power:
Load capacity up to: 22 kW
Charging mode: Mode 3
Nominal voltage: 440 V (AC)
Maximum current capacity: 32 A
Cable:
Number of phases: 3
Internal conductor cross-section: 6 mm²
Cable type: HELIX cable
Cable sheath material: ÖLFLEX® CHARGE
Cable length: 3 m
Protection class: IP55
Colour: orange
Weight: 2400 g
