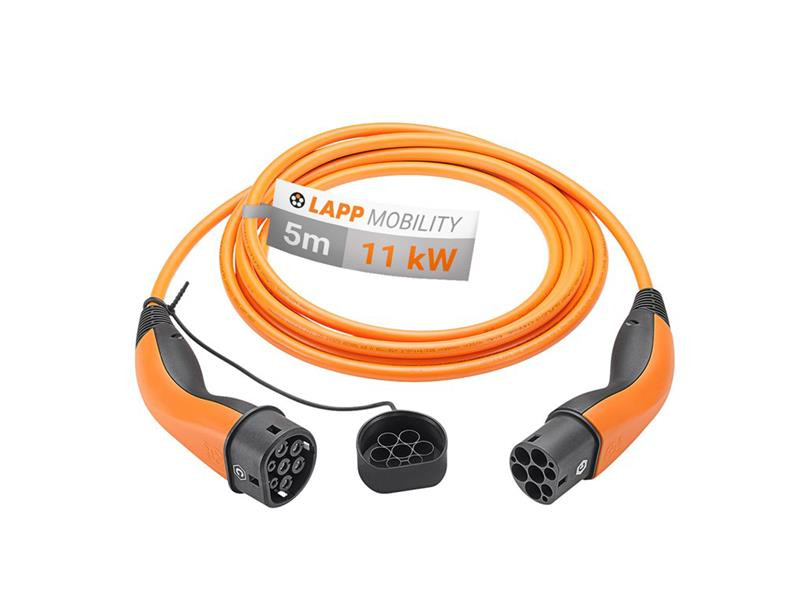

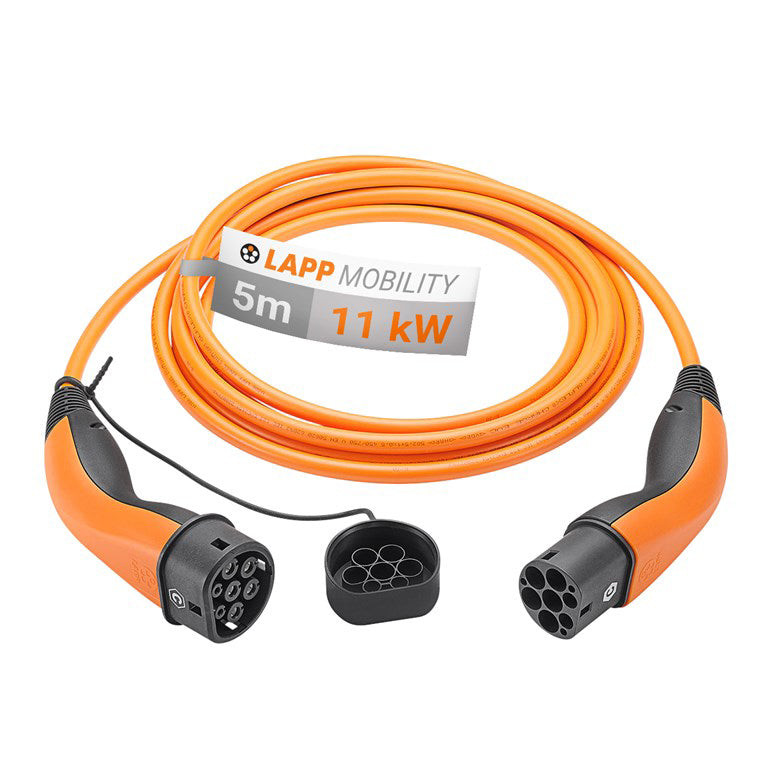

Charging cable LAPP 61785 type 2 11kW 20A 3 phase 5m for electric car

Standard LAPP Type 2 charging cables connect your electric car to a charging station, charging post or wallbox - for easy charging at home or on the go. Simply connect the cable connector to the car and the plug to the power source. The charging process is automatically started and terminated by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

- Type 2 charging cable from LAPP enables easy and fast charging with a power of up to 11 kW at a public or private charging station or wallbox.
- Thanks to the 3-phase connection (20 A), the cable charges particularly quickly at a nominal voltage of 440 V (AC).
- Heavy-duty cables and plugs with vehicle-resistant silver-plated contacts provide extra durability
- Cover on the vehicle-side clutch protects against dust, dirt and water ingress between charges.
- Oil-resistant and longitudinally waterproof EV charging cable with high protection against moisture according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable takes up little space and is easy to handle thanks to its light weight.
- Mode 3 charging cable made according to current IEC and EN standards, compatible with European vehicles and charging stations as well as CCS connection (Combo 2)

Technical parameters:

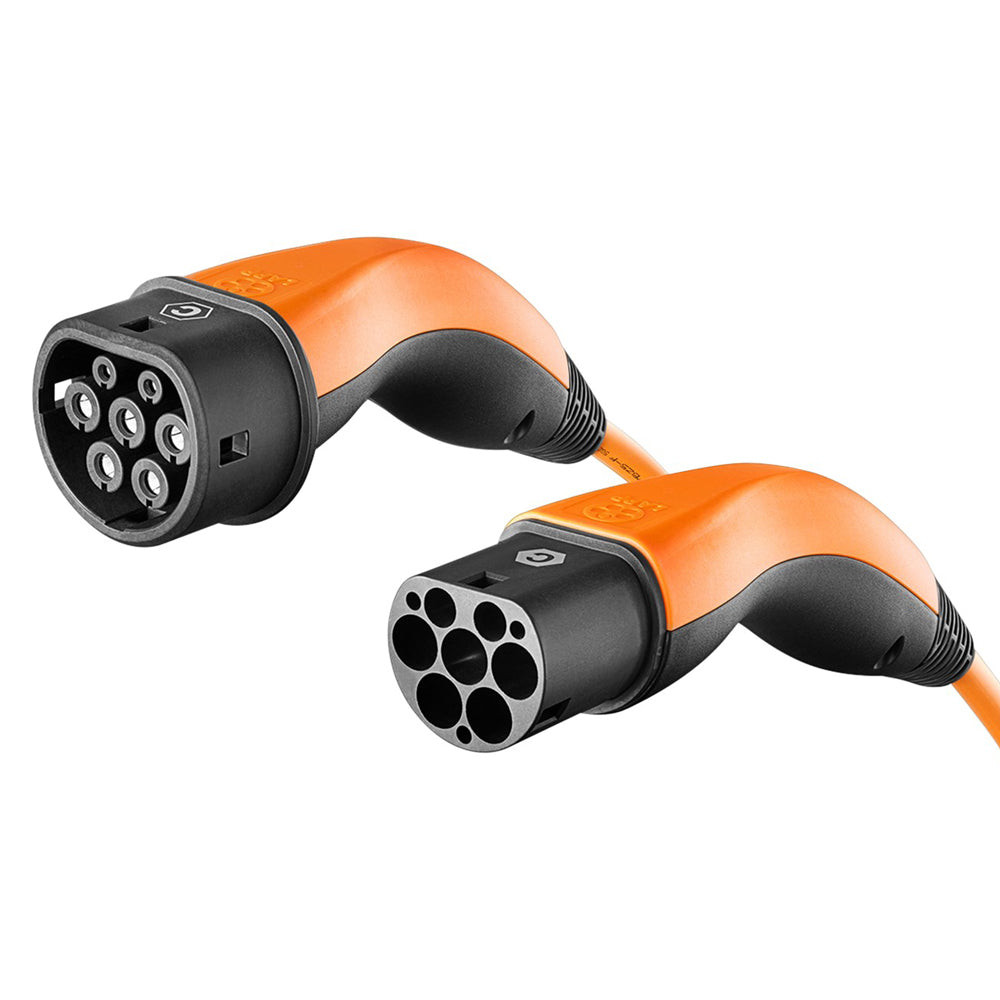

- Connection type: type 2 male plug
- Connection 2, type: plug type 2 female
- Power: up to 11kW
- Max. current: 20A
- Nominal voltage: 440 V (AC)
- Number of stages: 3
- Cable type: straight cable
- Cable sheath material: ÖLFLEX® CHARGE
- Internal conductor cross-section: 2.5 mm²
- Cable length: 5 m
- Protection class: IP55
- Color: orange
- Weight: 1848 g
