Arduino Nano V3.0 R3, Atmega328P, Arduino klón CH340G-val

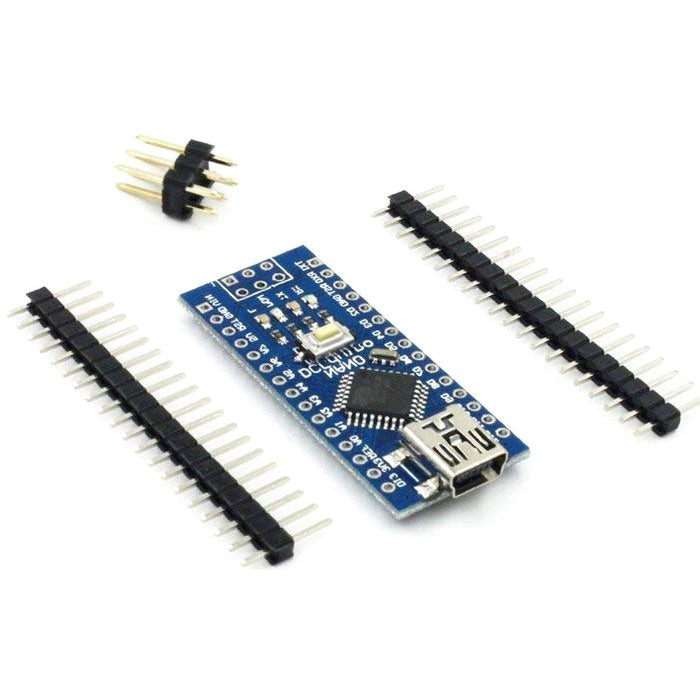

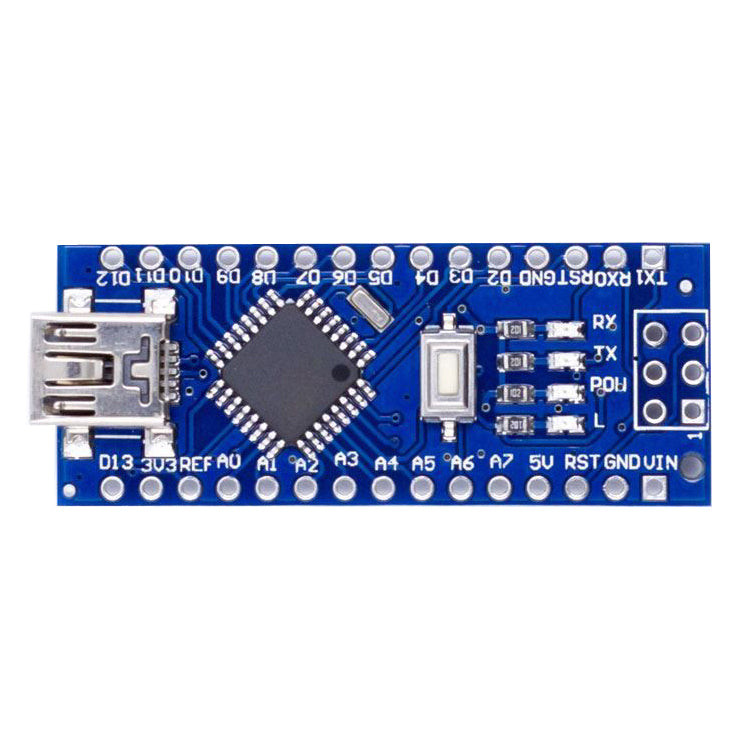

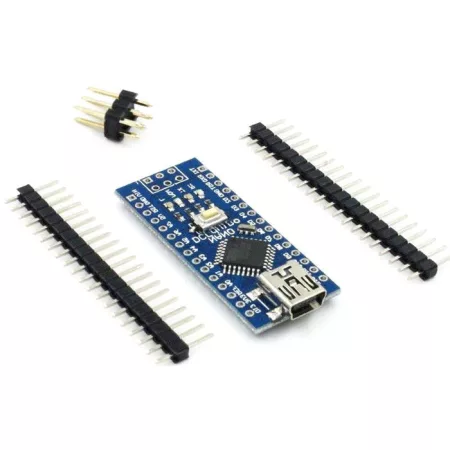

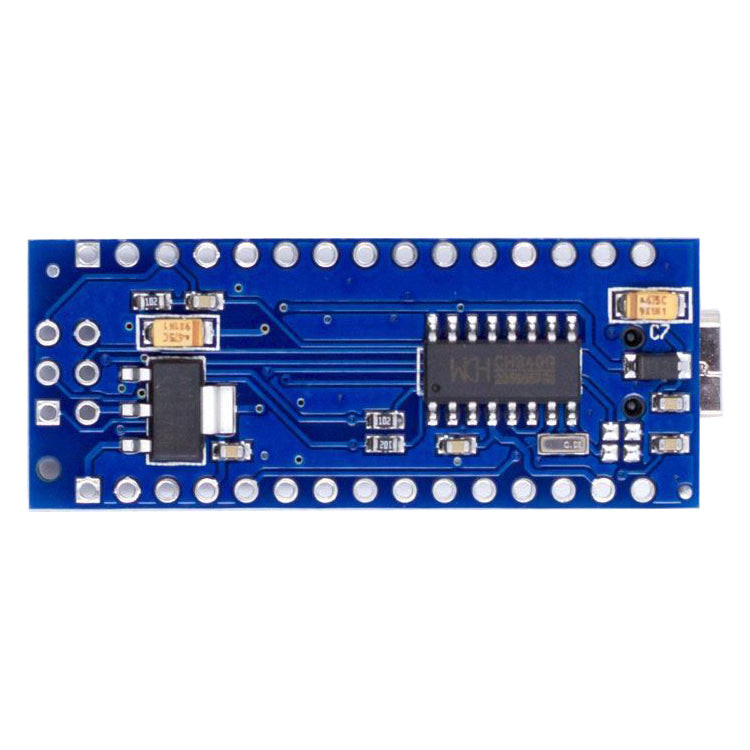

This Arduino Nano clone is a minimized development board with an AVR ATmega328 microcontroller and a GH340G USB converter. It is functionally identical to the Arduino UNO version, but it is adapted for insertion into a non-soldering contact field or device socket. The input and output pins are therefore connected to the bottom of the board. To minimize, the external power connector is missing and the USB connector is reduced to a mini USB version. The board itself contains 14 digital inputs / outputs and 8 analog ones. The external power connector is replaced by a pair of 5-12 V pins.. Product parameters:. - MCU: ATmega328. - USB converter: CH340G. - working voltage: 5V. - input voltage: 5-12V (max.6-20V). - 14 digital input / output ports: TX, RX, D2 ~ D13. - 6 PWM ports: D3, D5, D6, D9, D10, D11. - analog. inputs: 8 (A0 ~ A7). - DC Current per pin: 40mA. - flash: 32 KB (ATmega328) 0.5 KB used for bootloader. - SRAM 2 KB (ATmega328). - EEPROM 1 KB (ATmega328). - crystal: 16 MHz. The package does not include a communication cable, it is necessary to purchase a Micro USB - USB-A cable.. The product is not a stand-alone unit, it requires professional installation.
