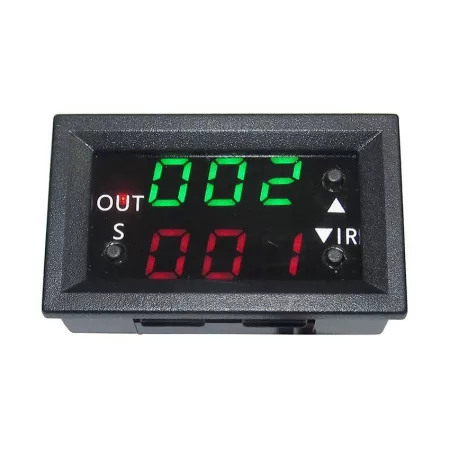

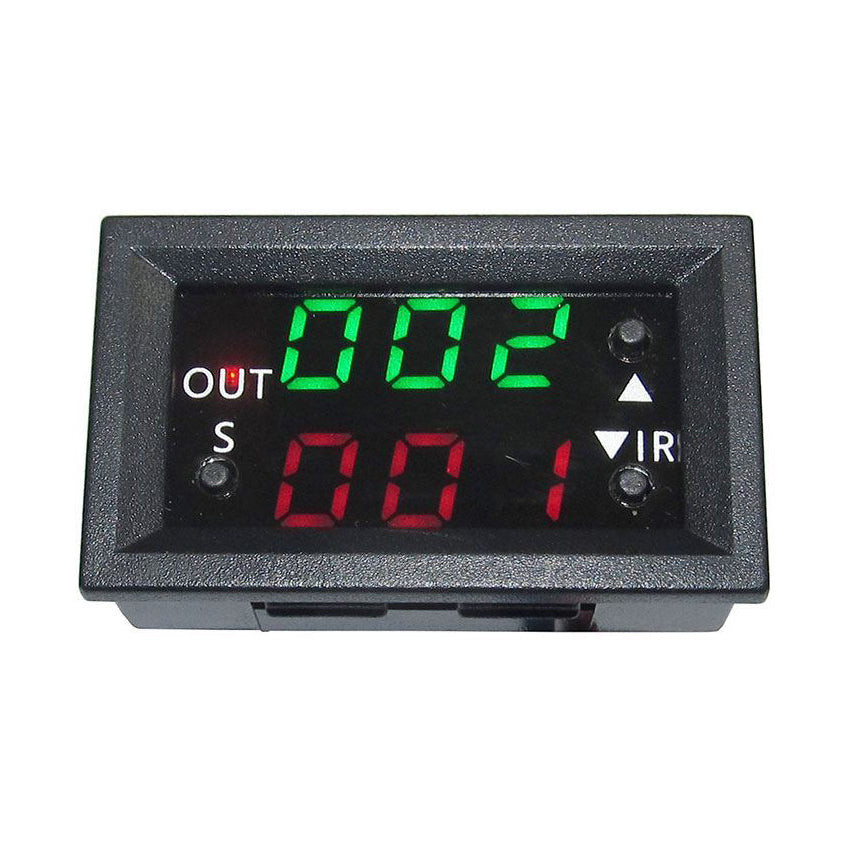

Időkapcsoló 0-999sec, 0-999min, 0-999h két időzítővel

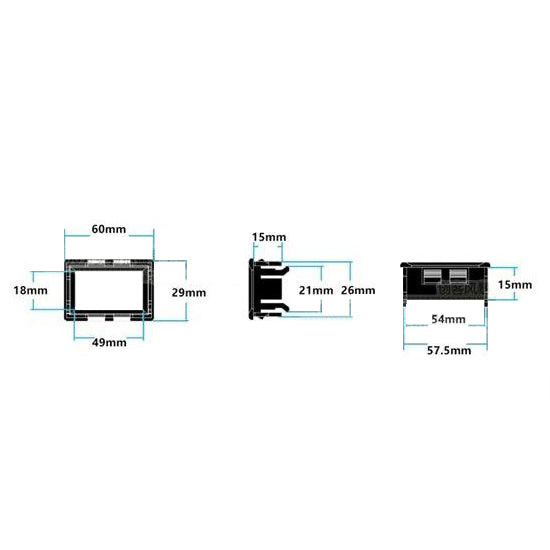

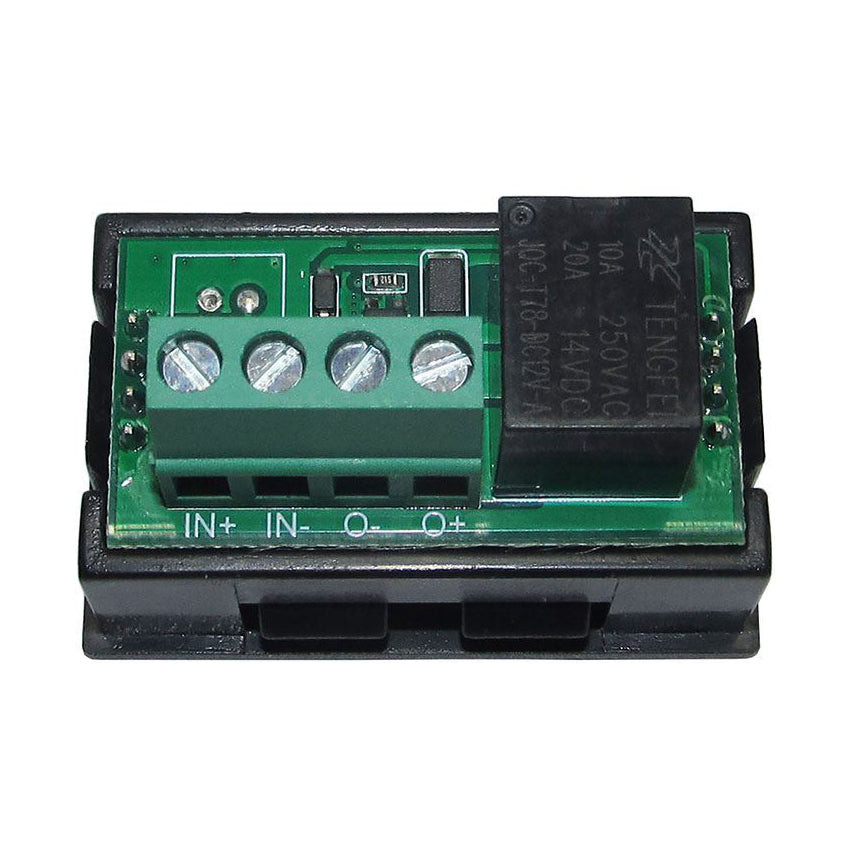

Time switch with two time channels. Both times can be combined with each other in different ways, seconds, minutes, hours can be set for both times, and this can also be combined with each other (for example, the switch-on time can be in hours and the switch-off time can be in seconds.. Specifications:. time range: 0–999sec, 0–999min, 0–999h, setting of each channel individually. power supply: 12V DC. operating modes: 4. relay contact 230VAC/10A or 12VDC/20A. dimensions 48×29mm. depth: 33mm. mounting hole: 45.4×26mm. consumption in idle mode: 15mA. consumption when the relay is switched on: 60mA. Operating modes:. P0 0 power-on timer runs in seconds. P0 1 power-on timer runs in minutes. P0 2 power-on timer runs in hours. P1 0 shutdown timer runs in seconds. P1 1 shutdown timer runs in minutes. P1 2 shutdown timer runs in hours. P2 on / off setting of cyclic repetition. P3 0 setting enabled, 1 setting locked. Time setting:. Enter the time setting – double-click the S button. 005,000 turns on for five seconds and then turns off permanently. 000 005 turns on permanently in five seconds. 005 005 five seconds on, five seconds off, continuous repeat / P2 set on. 005 005 five seconds off, five seconds on, continuous repeat / P2 set off. The module does not have a separate Start button. Timing starts by connecting the input voltage.. Reset running cycle and restart from the beginning Hold button 3 (scroll down) for 3 seconds. The product is not an independently functional unit, it requires professional assembly.
