Nano V3.0 R3, Atmega328P, precíz Arduino klón

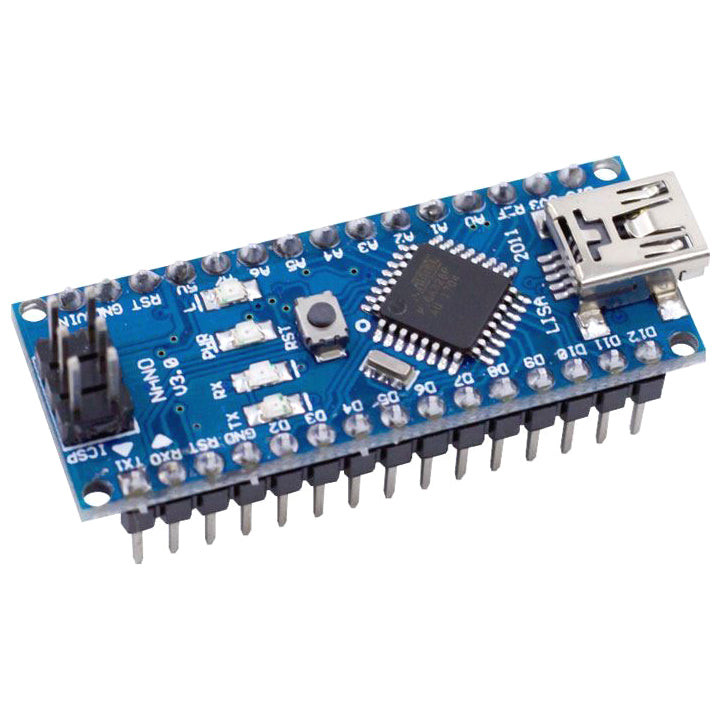

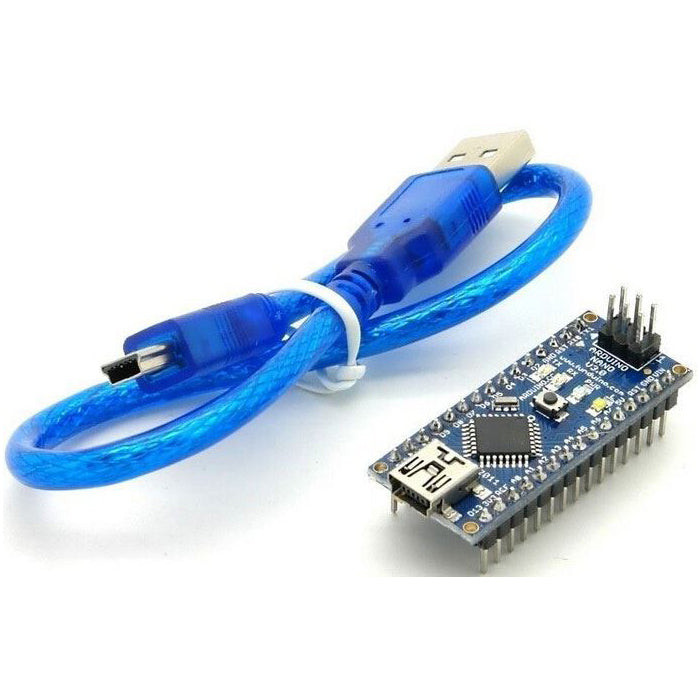

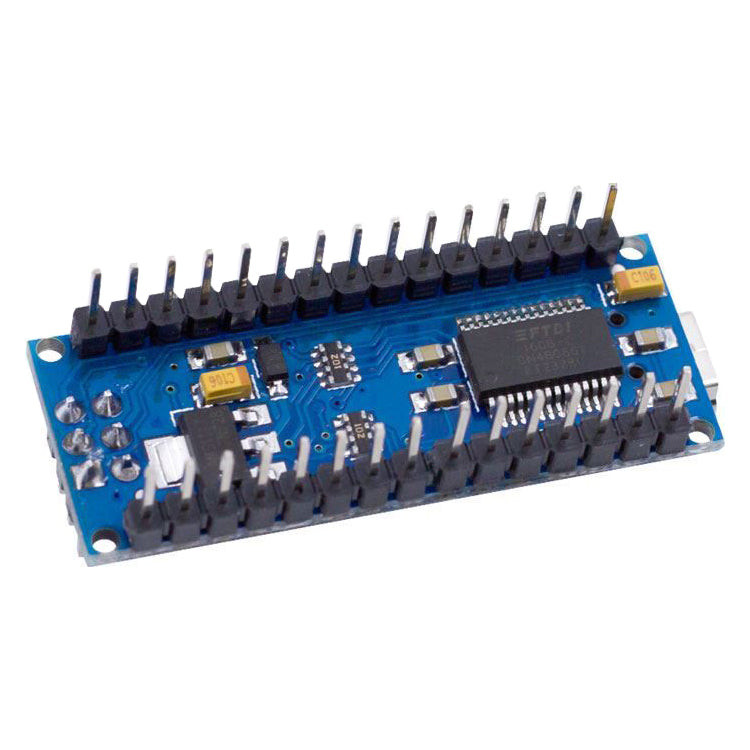

This clone Arduino Nano is a minimized development board with AVR ATmega328 microcontroller and original USB converter. Functionally, it is identical to the Arduino UNO version, but is adapted for slipping into the non-drinkable contact field or device socket. Pins of inputs and outputs are therefore led to the bottom of the board. To minimize this, the external power connector is missing and the USB connector is reduced to a USB version. The board itself contains 14 digital inputs/outputs and 8 analog inputs. The external power connector is replaced by a pair of Pins for 5-20 V connections.. Technical parameters:. - MCU: ATmega328. - USB/UART converter: FTDI FT232. - supply voltage: 5V. - input voltage: 7-12V (max. 6-20V). - I/O Pins: 14 (6 usable as PWM output). - analog. inputs: 8. - DC Current per pin: 40mA. - flash: 32 KB (ATmega328) 0.5 KB used for bootloader. - SRAM 2 KB (ATmega328). - EEPROM 1 KB (ATmega328). - crystal: 16 MHz. A connection cable is included.
