Időzítő 0–30 másodperc, 0–30 perc, 0–30 óra két időbeállítással

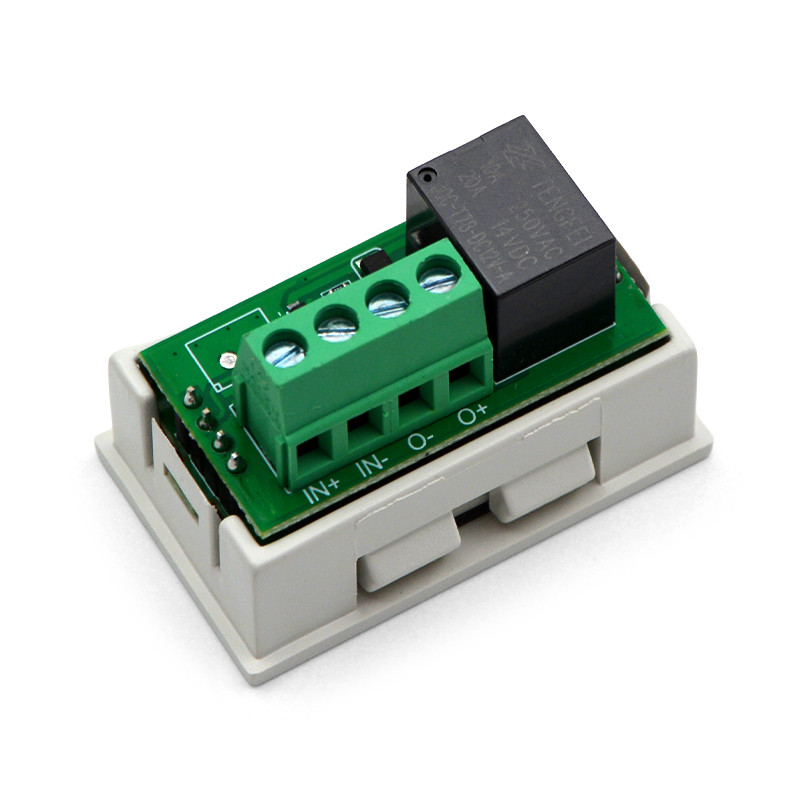

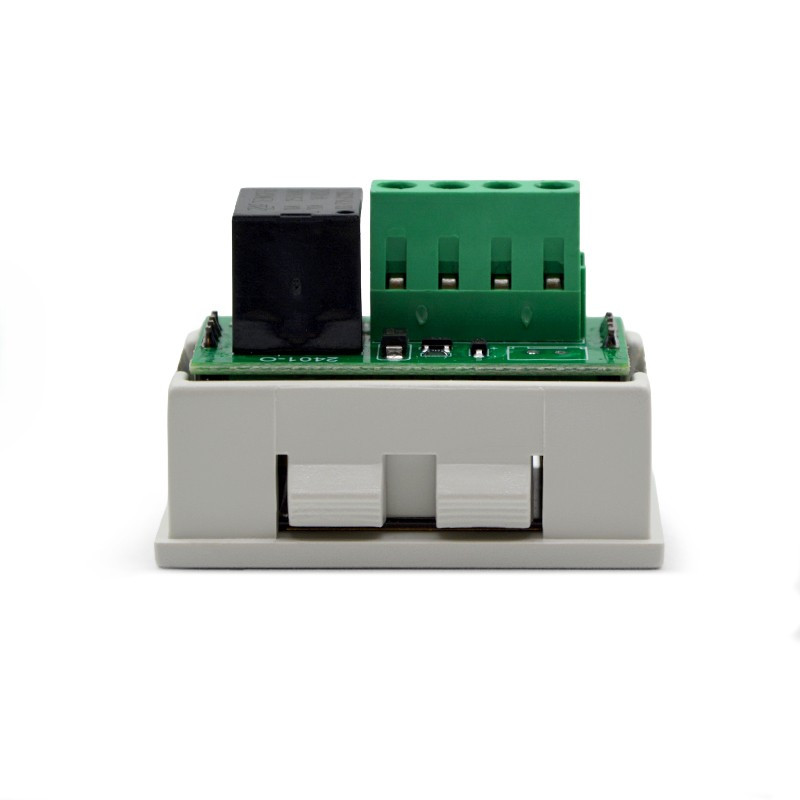

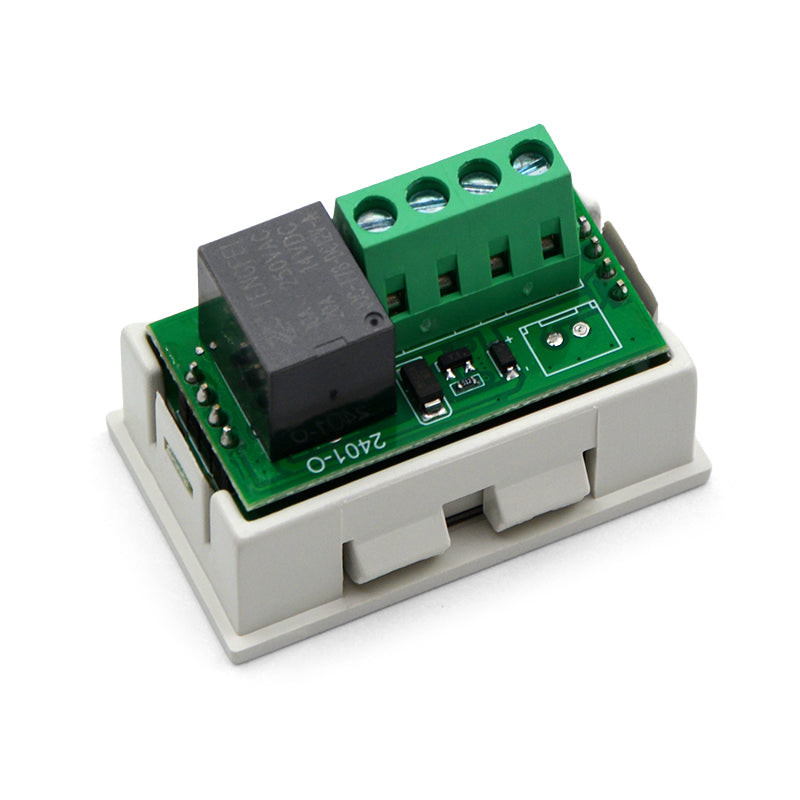

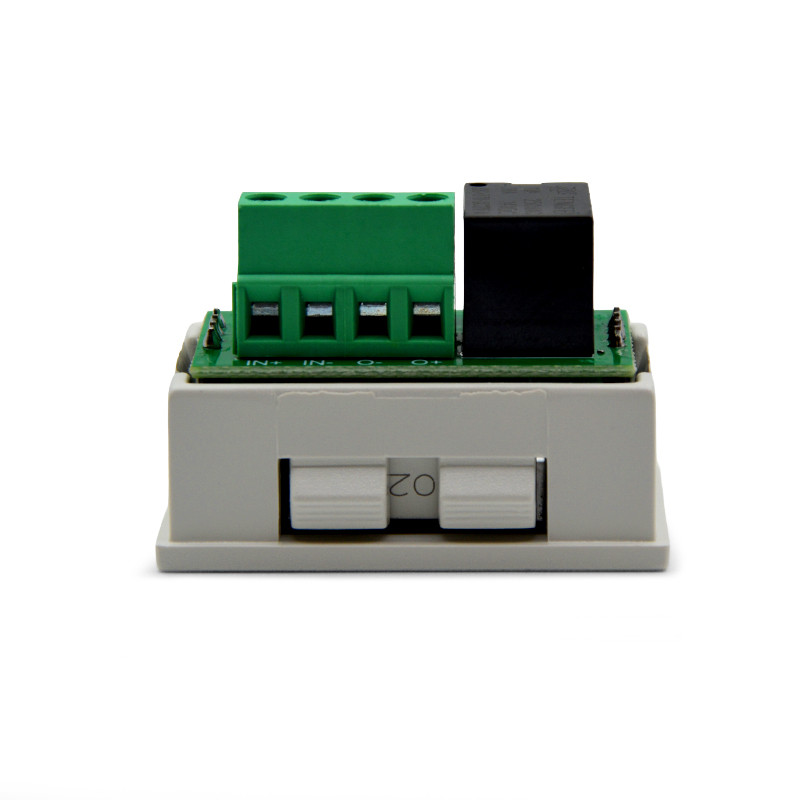

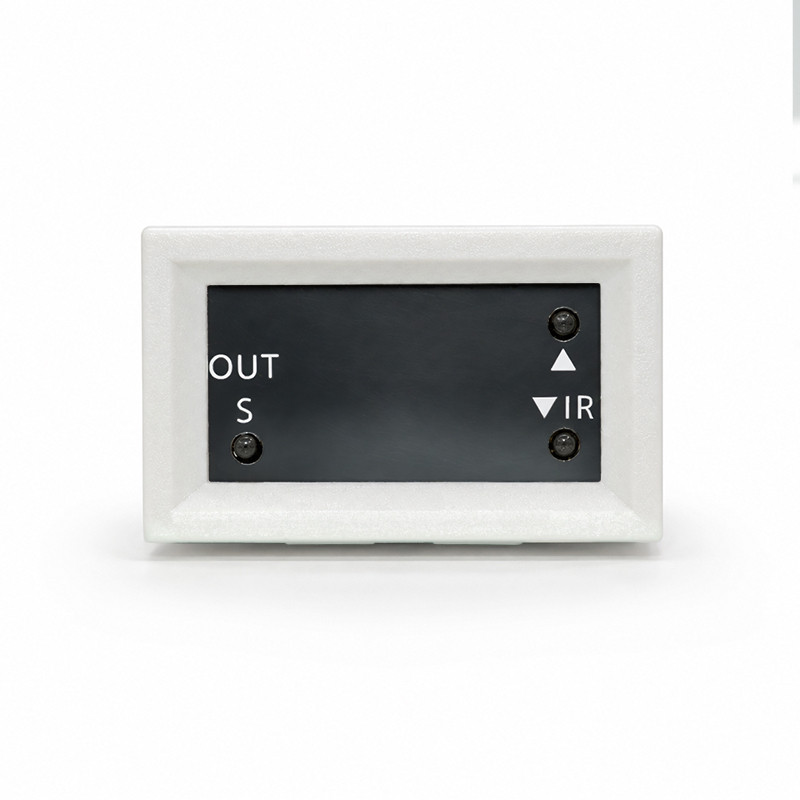

A timer with three adjustable time intervals and two time channels. The two time settings can be combined in various ways. Time range: 0–30 seconds, 0–30 minutes, 0–30 hours; the settings apply to both channels simultaneously.. A compact panel-mounted timer module with a clear LED display, designed for the repeated cyclic switching on and off of appliances.. It allows independent setting of the switch-on and pause times across a wide range from seconds to hours. Flexible time units: Independent setting of seconds, minutes or hours for both switch-on and pause times.Selectable initial state: Option to set whether the cycle begins by making or breaking the relay contact when power is applied. Clear dual display: Simultaneous display of both countdown times. Setting protection: Integrated electronic lock to prevent accidental mode switching.Easy installation: Designed for panel or junction box mounting. Applications: Suitable for the automation of irrigation systems, cyclic ventilation, heating control, water top-ups in aquariums, industrial automation or timed lighting control.. Technical specifications:. - Supply voltage: 12V DC. - Switching contacts load: 10A – 250V AC or 20A – 14V DC. - Timer range: 0–30 (seconds / minutes / hours). - Operating mode: Endless cycle (Start ON / Start OFF). - Display: Dual LED (Green + Red). - Mounting hole: 45 x 26 mm. - Overall dimensions: 48 x 29 x 21 mm. Overview of functions and settings (Menus P0–P3). P0 (Time unit for switch-on): 0 = Seconds | 1 = Minutes | 2 = Hours. P1 (De-energisation time unit): 0 = Seconds | 1 = Minutes | 2 = Hours. P2 (Initial cycle state): ON = Cycle starts by energising | OFF = Cycle starts in pause mode. P3 (P2 setting lock): 0 = Unlocked | 1 = Locked. The module does not have a separate Start button. Timing starts when the input voltage is applied.. This product is not a self-contained unit and requires professional installation.
