Időkapcsoló FC-32 0,1sec-1óra relével, 12V tápegységgel

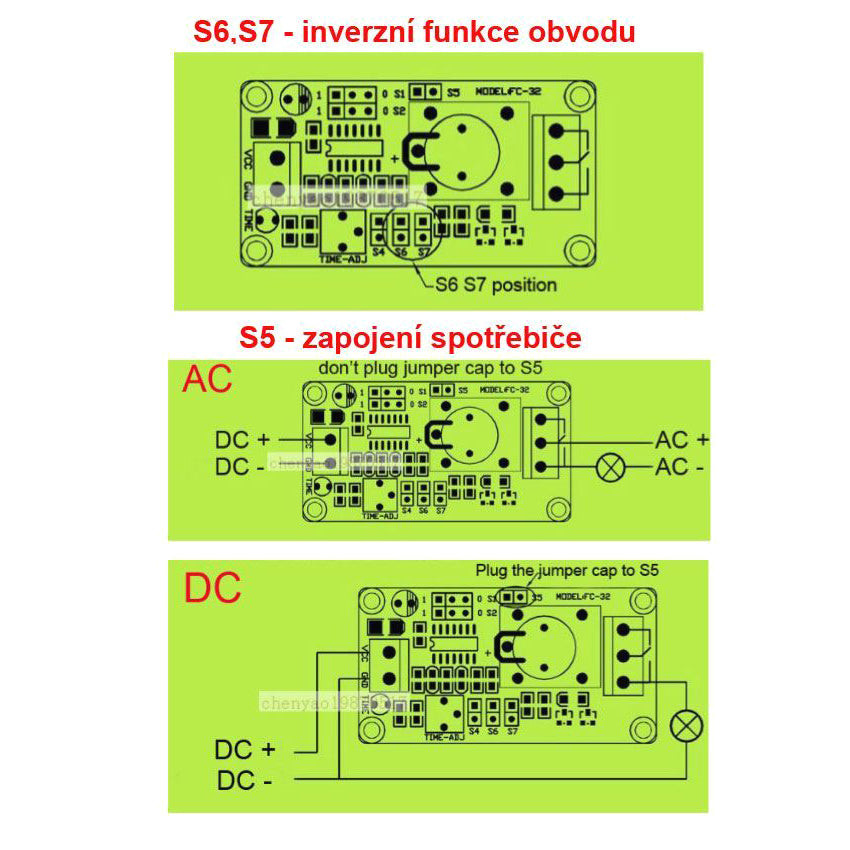

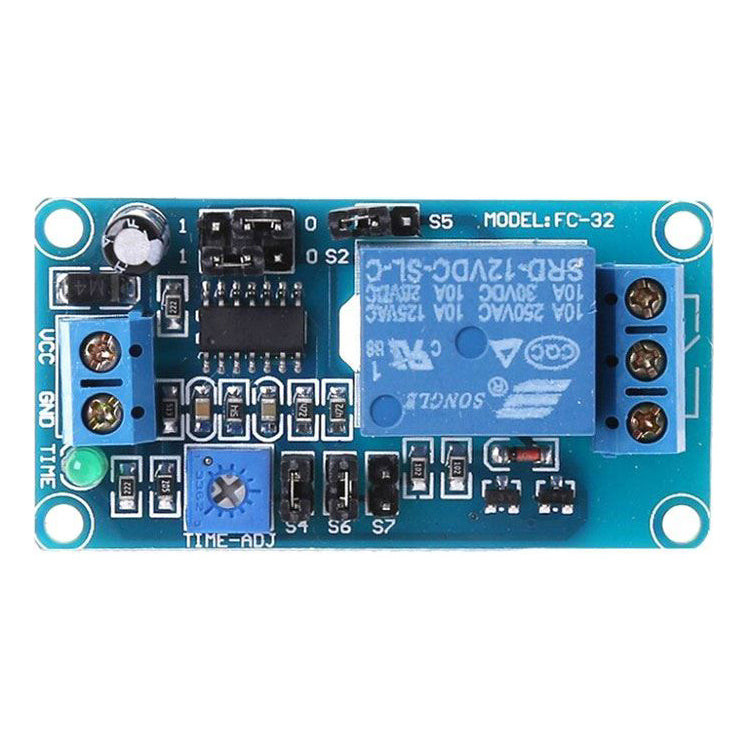

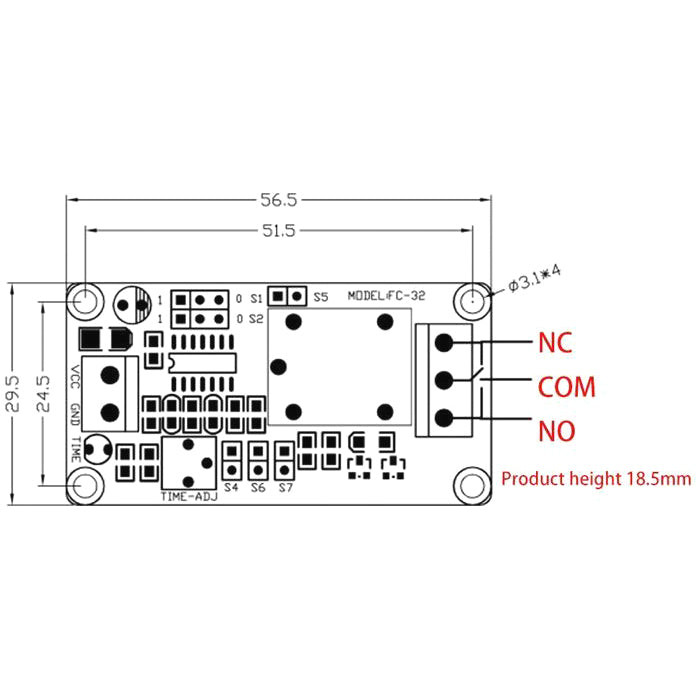

Highly variable timer 0.1 sec-1 hr with many variants of function and connection. After connecting to voltage, the relay closes after a set time delay or closes immediately and opens with a delay. The delay can be set with a trimmer and jumpers. The relay has a make and break contact, so the appliance can be switched on with a time delay or switched off after a specified time.. Technical parameters:. - supply voltage: 12 V DC. - operating current: <100mA. - adjustable switching time 100 ms to 1 hour.. - potential-free relay contact NO / NC 250 V AC / 10 A or 30 V DC / 10 A. - relay type: Songe SRD-12VDC-SL-C. - operating temperature: -10 to 60 ° C. - dimensions: 56 × 30 × 18 mm. - weight: 18 g. Jumper functions:. - S1, S2, S4 - by a combination of these jumpers and a trimmer, the required time can be set when the timer is in the active state, ie. on or off.. - S5 - jumper for applying supply voltage to the relay contact. The relay can have separate contacts (not connected) or with a voltage potential of 12V (connected). Then it can switch the 12V appliance straight away.. - S6, S7 - setting of switching time or switching on delay. When S6 is connected, the relay is closed during the countdown, if S7 is connected, the relay is switched off during the countdown, ie. the circuit switches on the appliance with a delay.. The product is not a stand-alone unit, it requires professional installation.
