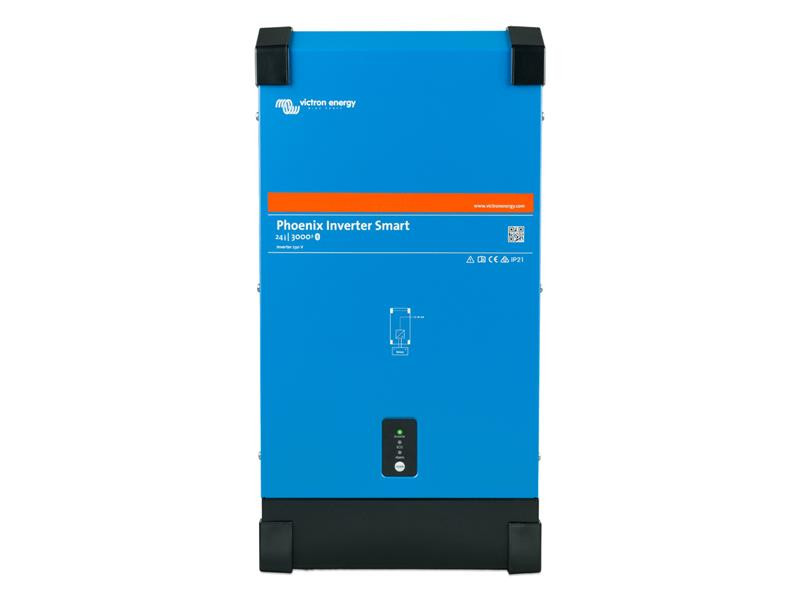

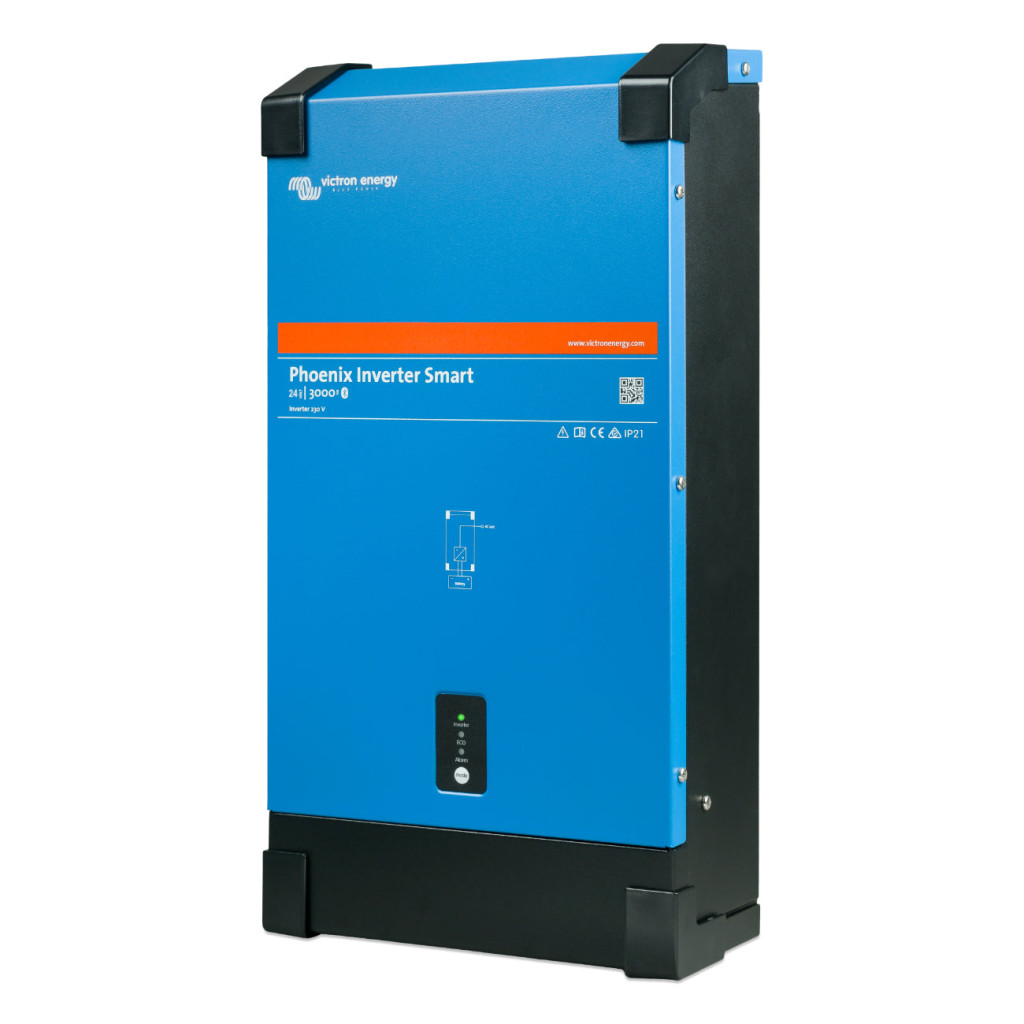

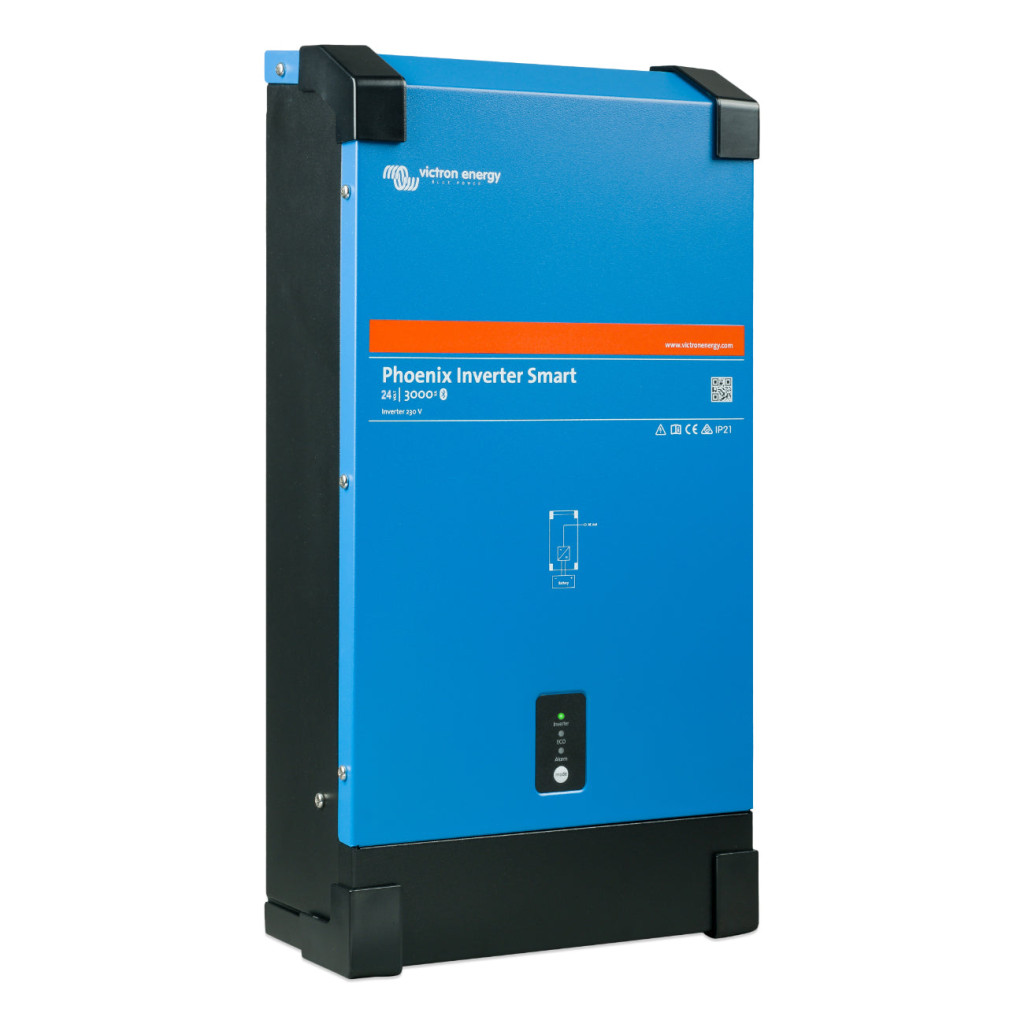

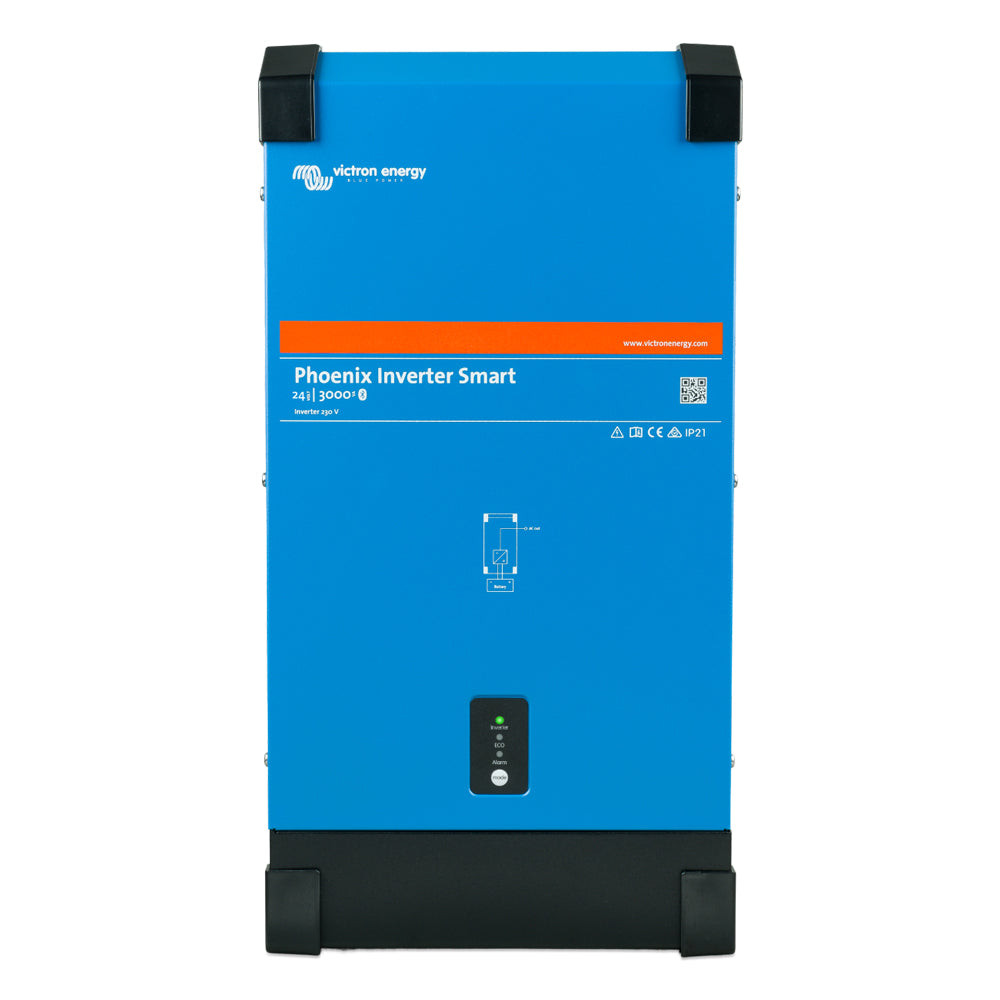

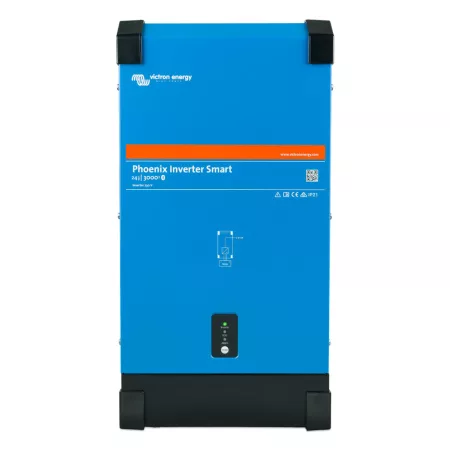

Victron Energy 3000VA 24V Smart voltage converter

Victron Energy 24V/2000VA Smart inverter
Fully programmable 24V/2000VA inverter with pure sine wave, built-in Bluetooth Smart, wireless setup and ECO mode.
The Victron Energy Smart voltage converter is an efficient and reliable voltage converter built on a proven and field-tested inverter platform, but in a new design with an all-metal housing. It is powerful enough to power most common appliances in a car, boat, RV or home. The toroidal transformer provides high peak power surge capacity, stable voltage, frequency and high quality sine wave.


Product Parameters:

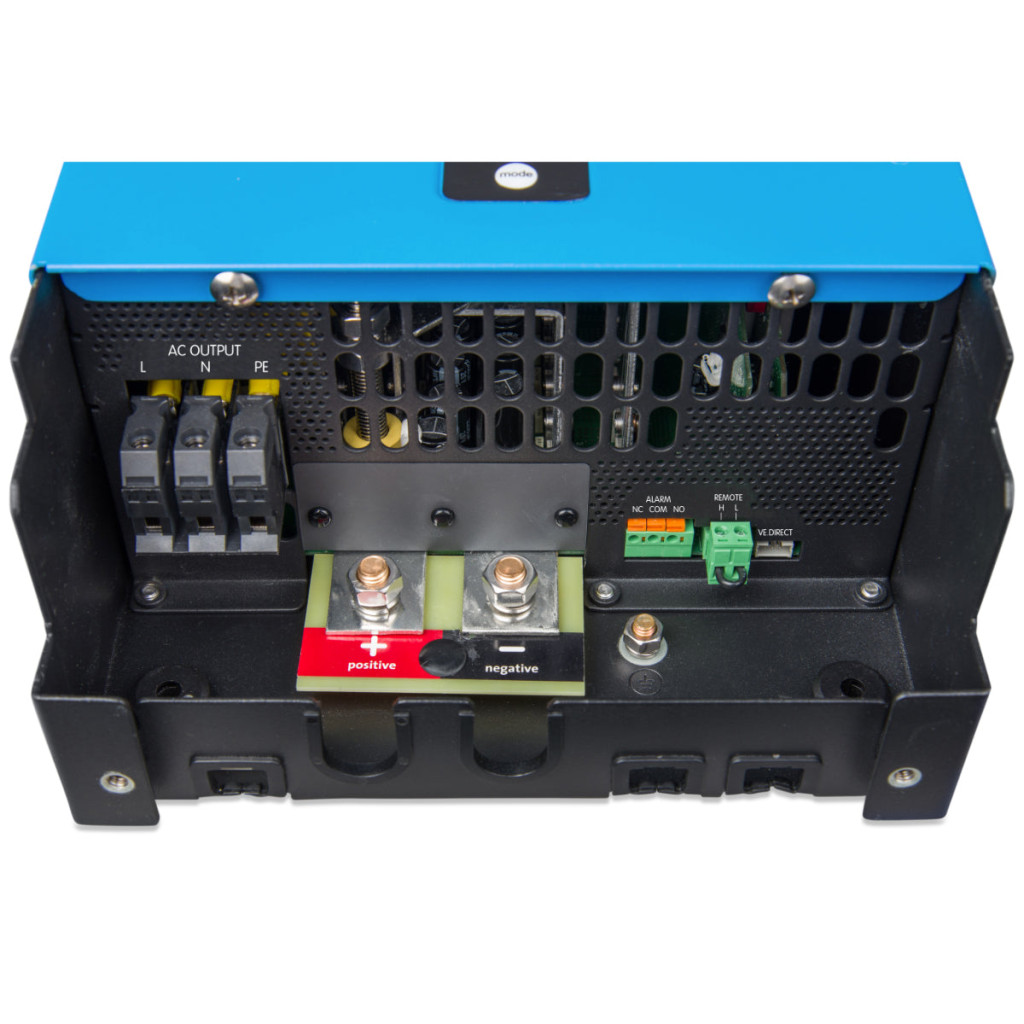

Easily accessible terminals:
Installation is easier than ever because the terminals are now more accessible to the installer.

Built-in Bluetooth:
Fully configurable via tablet or smartphone, configure alarms, alarm relays, voltage interrupts, output voltage, frequency, eco-mode and more directly from the app from VictronConnect.
- Low battery voltage alarm
- Low battery shutdown and restart levels
- Dynamic shutdown: load-dependent shutdown level
- output voltage: 230 VAC ±2%
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sensing level
- alarm relay
- monitoring: input and output voltage, load and alarms

VE.Direct:
Using the VE.Direct port, you can connect to a computer (VE.Direct to USB interface cable required) and configure and monitor the same parameters.

Proven reliability:
The full bridge and toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High starting performance:
Required to start loads such as inverters for LED bulbs, halogen bulbs, refrigerators or power tools.

ECO mode:
In ECO mode, the inverter switches to standby mode when the load drops below a preset value. In standby mode, the inverter turns on for a short period of time every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off:
A remote switch or relay contact can be connected to the two-pole connector. Alternatively, the H terminal (left) of the two-pole connector can be switched to battery plus or the L terminal (right) of the two-pole connector can be switched to battery minus.

LED diagnostics:
The status LEDs can be used to diagnose the device, see the instruction manual.

Victron Connect:
The VictronConnect application is used to monitor, control and configure the inverter. The app can be installed on a phone, tablet or computer. The app is available for Android, iOS, Windows and macOS. The app communicates either via Bluetooth or via a USB interface with the VE.Direct port.


Technical parameters:
- Output voltage: 230 V AC ± 2% 50 Hz or 60 Hz ± 0.1%.
- continuous power at 25 ºC: 2000 VA / 1600 W
- Peak power: 4000 W
- max. efficiency: 94 %
- self-consumption at zero load: max. 9 W
- self-consumption at zero load in ECO mode: max. 1.3 W
- 230 V AC connection: screw terminals
- Operating temperature range: -40 to +65ºC (fan-assisted cooling)
- Humidity (non-condensing): max. 95%
- protection class: IP21
- weight: 13 kg
- Dimension: 485 x 219 x 125 mm
