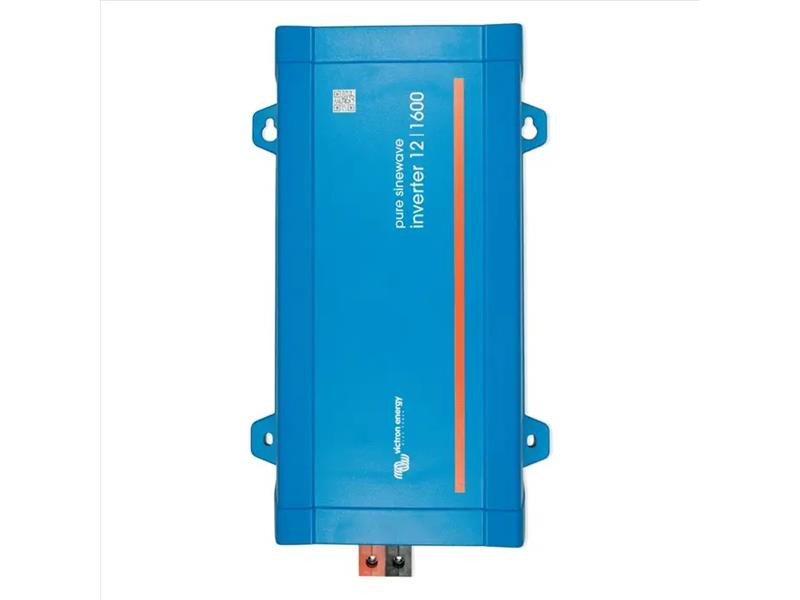

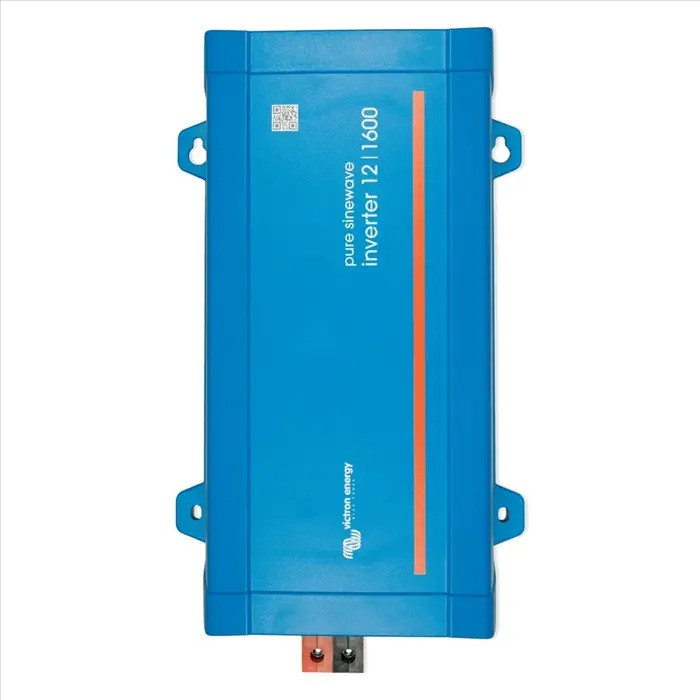

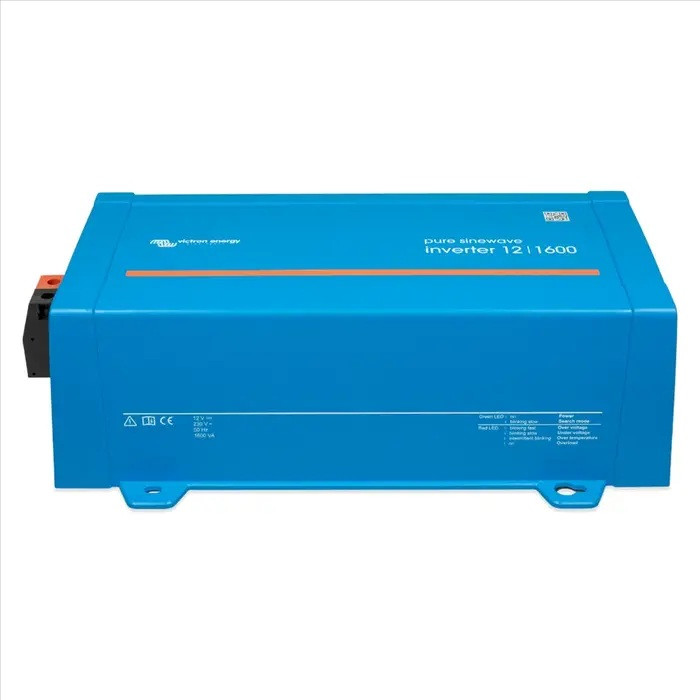

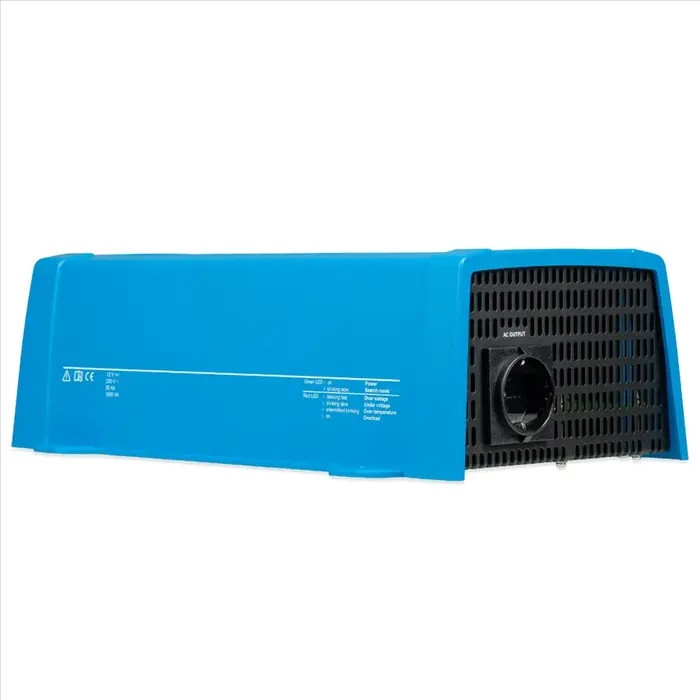

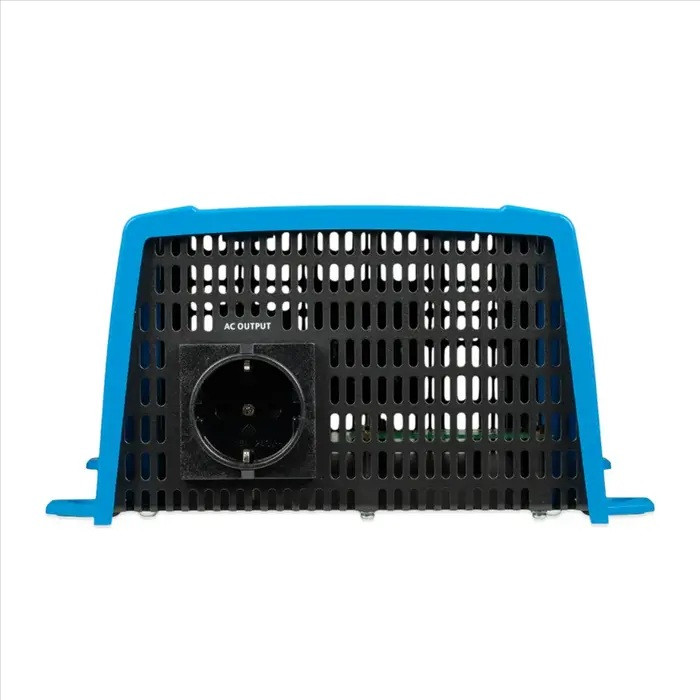

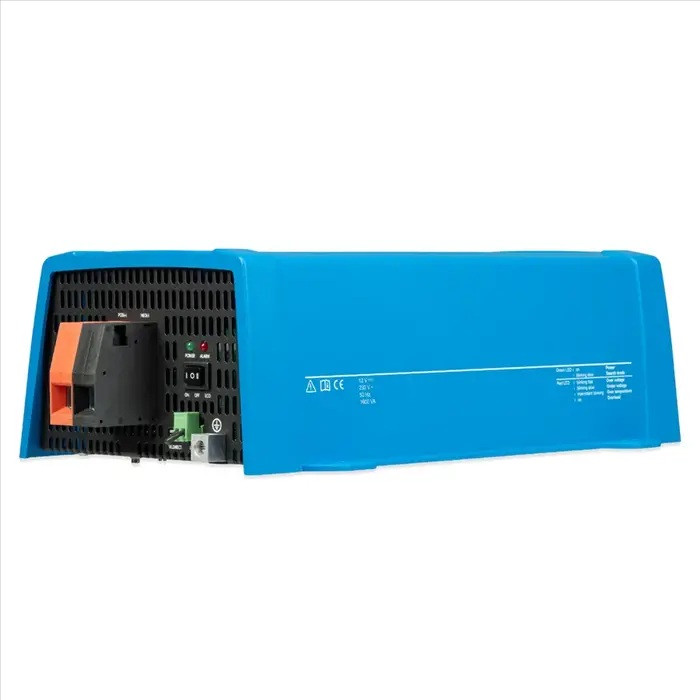

Voltage converter Victron Energy 12V/1600VA VE.Direct

The Victron Energy voltage converter is an efficient and reliable voltage converter built on a proven and field-tested platform. The inverter incorporates a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years.

Key Features:

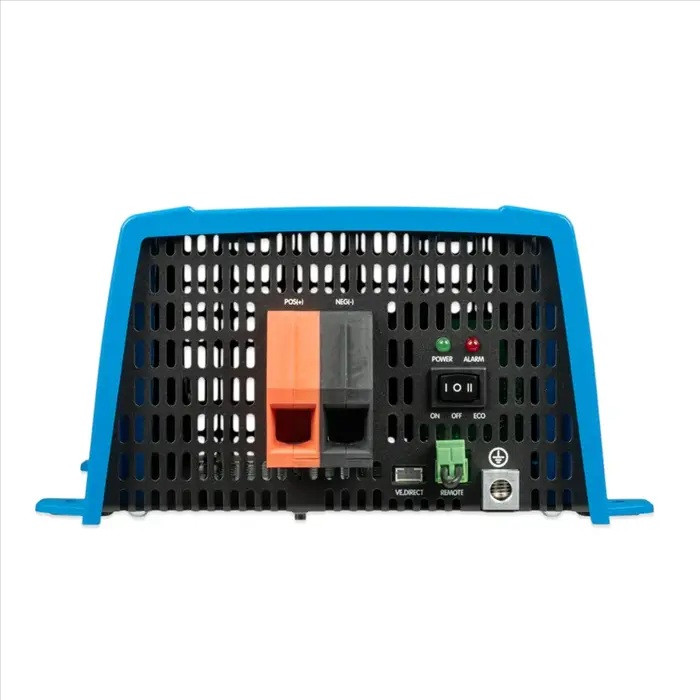

Easily accessible terminals:
Installation is easier than ever because the terminals are now more accessible to the installer.

VE.Direct:

The VE.Direct port can be connected to:

Computer (VE.Direct to USB interface cable required)
Smartphones, tablets, MacBooks and other Apple and Android devices (VE.Direct Bluetooth Smart dongle required)
Fully configurable:

Low battery alarm triggering and level reset
Low battery shutdown and restart levels
Dynamic shutdown: load-dependent shutdown levels
Output voltage 210 - 245 V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sensing level
Monitoring:

Input and output voltages, % load and alarms
Proven reliability:
The full bridge and toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High starting performance:
Required to start loads such as inverters for LED bulbs, halogen bulbs, refrigerators or power tools.

ECO mode:
In ECO mode, the inverter switches to standby mode when the load drops below a preset value. In standby mode, the inverter turns on for a short period of time every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off:
The remote switch can be connected to the two-pole connector or between the battery plus and left contact of the two-pole connector.

LED diagnostics:
The status LEDs can be used to diagnose the device, see instructions for use.

Victron Connect:
The VictronConnect application is used to monitor, control and configure the inverter. The app can be installed on a phone, tablet or computer. The app is available for Android, iOS, Windows and macOS. The app communicates either via Bluetooth or via a USB interface with the VE.Direct port.

Technical parameters:

Output voltage: 230 V AC ± 2% 50 Hz or 60 Hz ± 0.1%.
continuous power at 25 ºC: 1600 VA / 1300 W
Peak power: 2200 W
max. efficiency: 92 %
self-consumption at zero load: max. 8 W
self-consumption at zero load in ECO mode: max. 0.6 W
230 V AC connection: screw terminals
Operating temperature range: -40 to +65ºC (fan-assisted cooling)
Humidity (non-condensing): max. 95%
protection class: IP21
weight: 8.86 kg
Dimension: 190 x 425 x 285 mm
