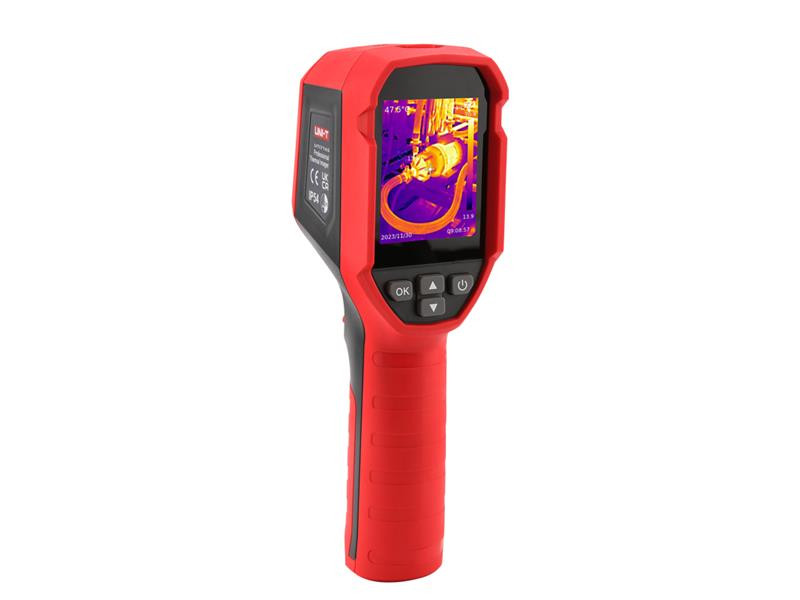

Thermal camera UNI-T UTi716S

UNI-T UTi716S is a cost-effective thermal imager and is equipped with a 12μm infrared detector with a resolution of 160×120 pixels and a 2MP digital camera, combined with Super Resolution and T-Mix technology with automatic adaptive dual fusion algorithm to generate high-resolution infrared images with visible details. Its extended temperature measurement range, built-in LED light and laser pointer meet the requirements of multiple application scenarios. The four-button and lightweight design make inspection easier. It is widely used in HVAC systems, automotive inspections and power plants.

Product parameters:

- infrared resolution 160×120 pixels / 12 μm)
- temperature measurement range from -20°C to 550°C
- 2MP digital camera
- equipped with T-Mix dual light image fusion algorithm technology
- multilingual operating system
- with LED light and laser pointer
- IP54 protection level
- resistance to falling from a height of 2 m

Technical parameters:

- 2.4″ TFT display (320 x 240)
- infrared resolution: 160 x 120 pixels
- super resolution: 320 x 240 pixels
- measurement in the infrared spectral band: 8 μm to 14 μm
- thermal sensor pixel size: 12 μm
- frame rate: ≤ 25 Hz
- thermal sensitivity (NETD): ≤ 50mK
- mode focus: Focus Free
- Field of View (FOV): 40°(H) x 30°(V)
- Temperature measurement range: -20℃ to 550℃
- Accuracy ±2°C or ±2% whichever is greater
- Color swatch palette for thermal image transposition: (White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC)
- Image modes: Thermal, Visual Image, T-Mix, Fusion, PIP
- LCD animation of high/low temperature alarm, LED flashlight, buzzer
- highest and lowest temperature monitoring in the image
- Digital camera resolution: 2 MP
- Laser pointer
- LED flashlight: yes
- PC analysis software
- Power supply: Li-ion battery 2600 mAh rechargeable
- Operating time ≥6 hours
- USB type - C
- Memory: built-in, 32 GB
- Image storage format JPG
- IP65 protection and drop resistance height 2 m
- certification: : CE, FCC, RoHS
- weight: 600 g
- product dimensions: 236 x 75.5 x 86 mm
