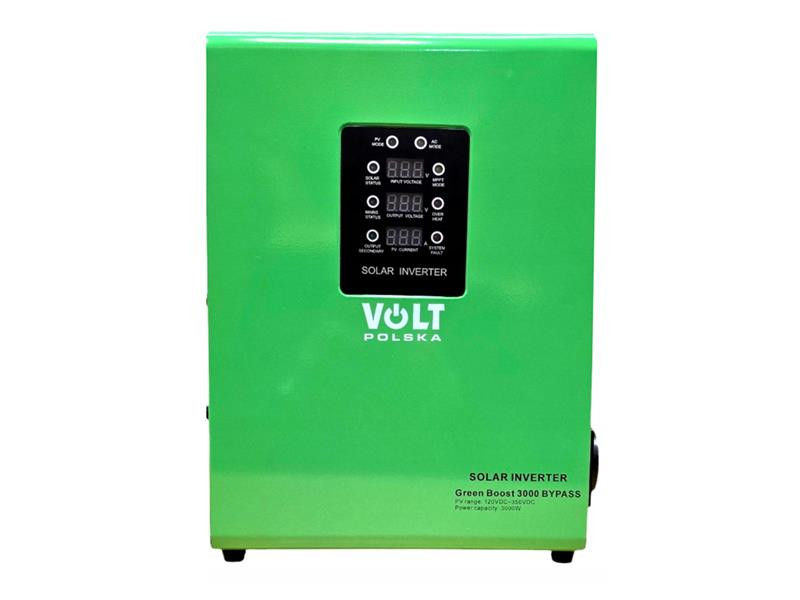

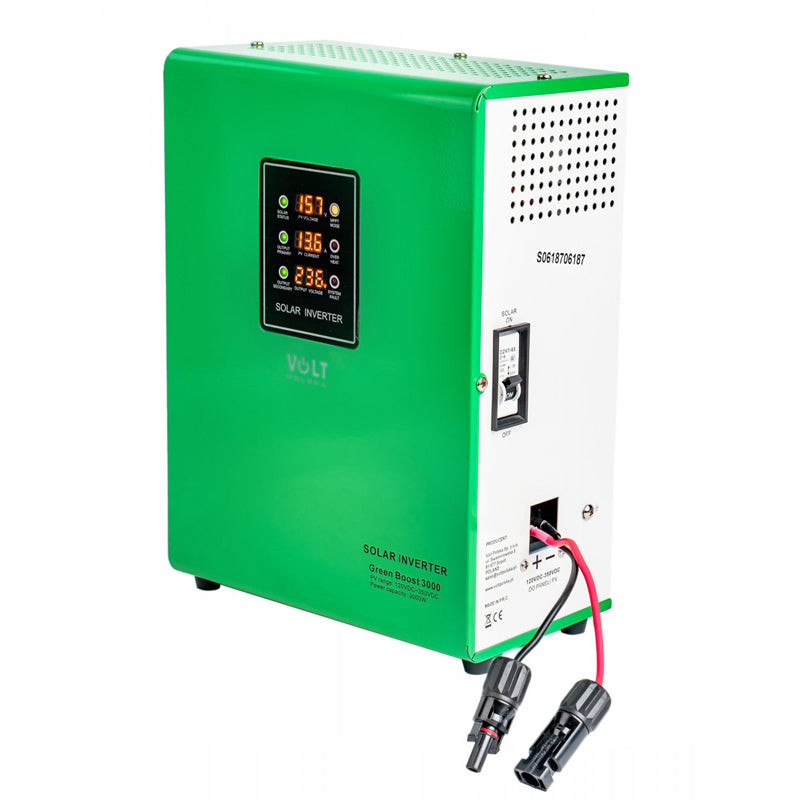

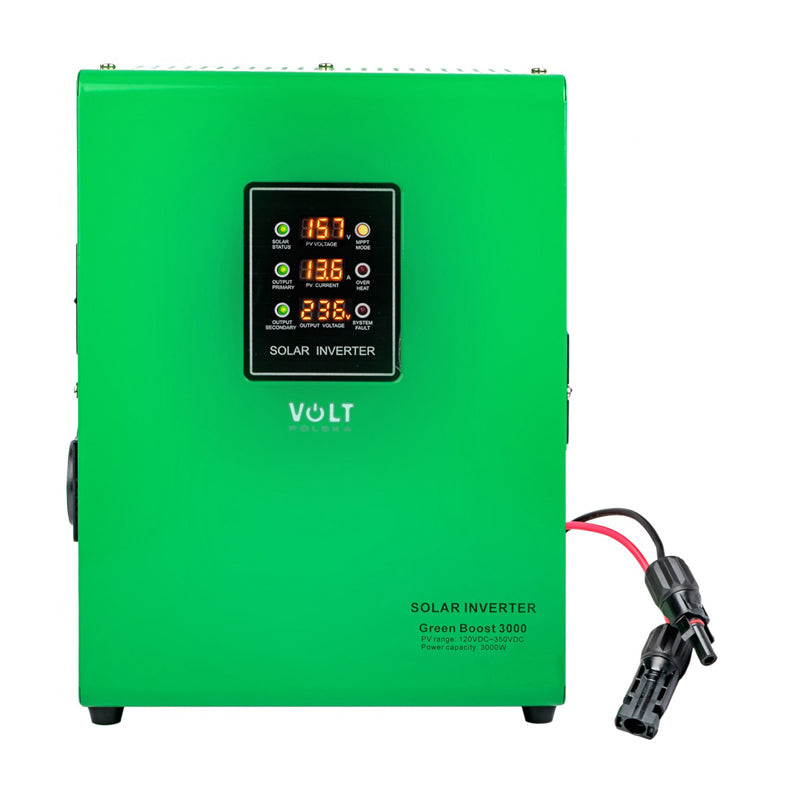

Solar regulator for water heating VOLT Green Boost MPPT 3000 BYPASS

The VOLT GREEN BOOST MPPT 3000 BAYPASS solar converter is an advanced device for directly supplying heating systems with energy from photovoltaic panels. Thanks to the MPPT function, it ensures maximum energy efficiency, while the BAYPASS system allows automatic switching to the mains in case of insufficient energy production. The perfect solution for powering boilers, heaters, electric mats and underfloor heating.

The VOLT GREEN BOOST MPPT 3000 BAYPASS is a modern solar converter that converts the direct current generated by photovoltaic panels into alternating current, allowing direct powering of heating devices. The MPPT (Maximum Power Point Tracking) system optimizes the operation of the installation and maximizes the efficiency of energy conversion.

Thanks to the built-in BAYPASS function, the converter automatically switches to power from the mains in case of a lack of energy supplied by the PV panels. This ensures continuous heating operation even on days with low sunlight.

For the device to function properly, it is enough to connect 4 to 9 photovoltaic panels with a power of 250W to 400W each. The panels can be configured both in series and in series-parallel, thus adapting the installation to the user's conditions.

The VOLT GREEN BOOST MPPT 3000 BAYPASS solar inverter is ideal for powering:

Electric boilers
Electric heaters
Electric mats
Radiators
Underfloor heating

The device, thanks to its solid construction and numerous protections (overload, short circuit, thermal), ensures long-term and trouble-free operation. Active cooling and audible and visual warnings further increase user safety.

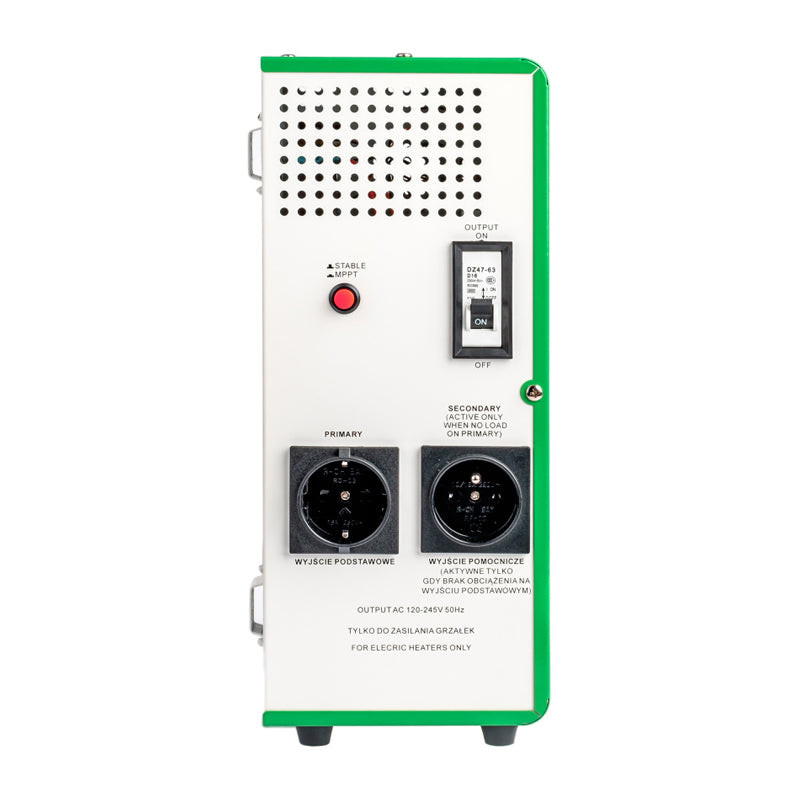

Dual output socket - Intelligent power management

The converter is equipped with two GB 3000 output sockets, which allow the connection of two heating devices simultaneously.

The first socket (PRIMARY) serves the main device and always has power priority.
The second outlet (SECONDARY) is activated automatically when the device connected to the first outlet stops consuming power. If the load on the PRIMARY outlet reappears, the power to the SECONDARY outlet will be interrupted.
In MPPT mode, the output voltage can range from 120V to 245V AC, depending on the power obtained from the PV panels.
In STABLE mode, the output voltage is 230V AC with sufficient PV energy.
