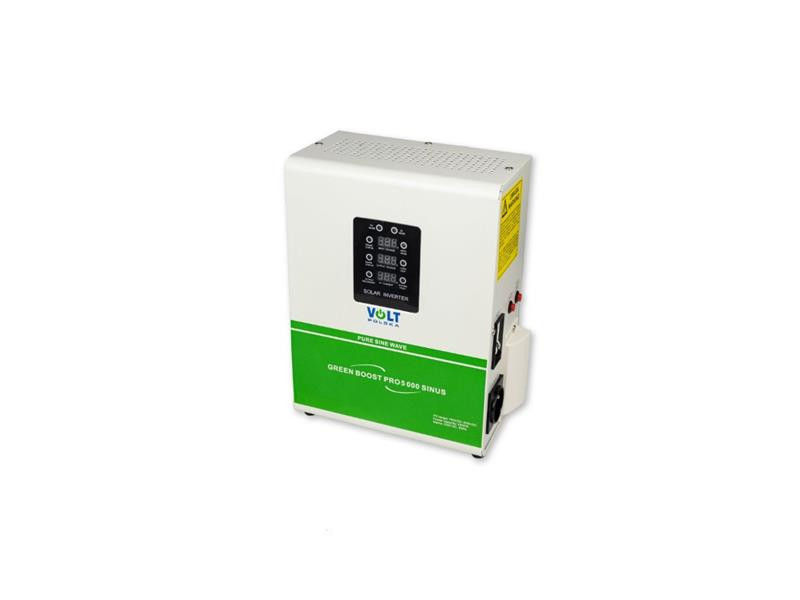

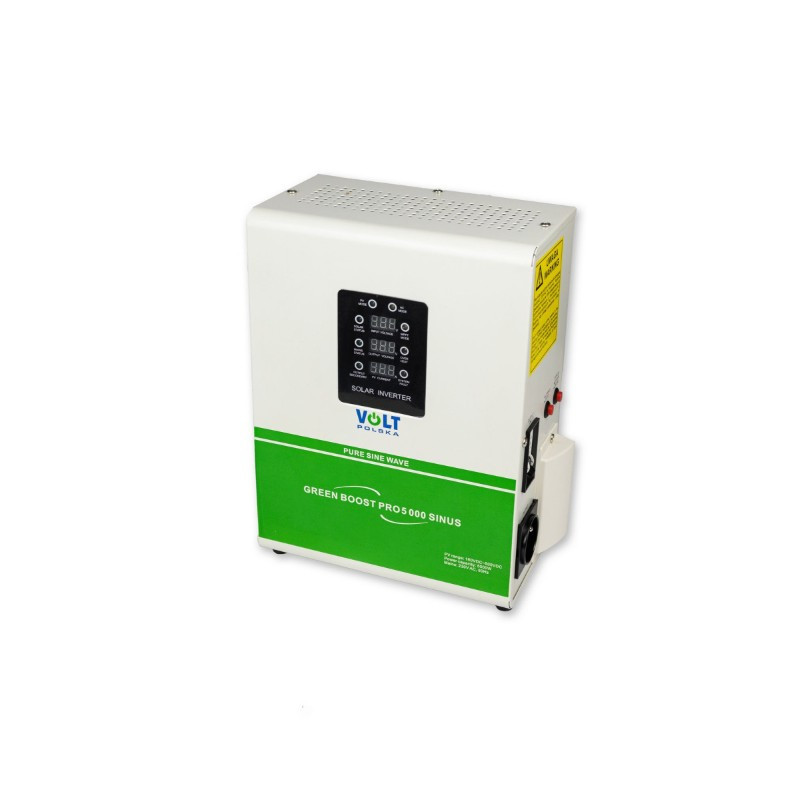

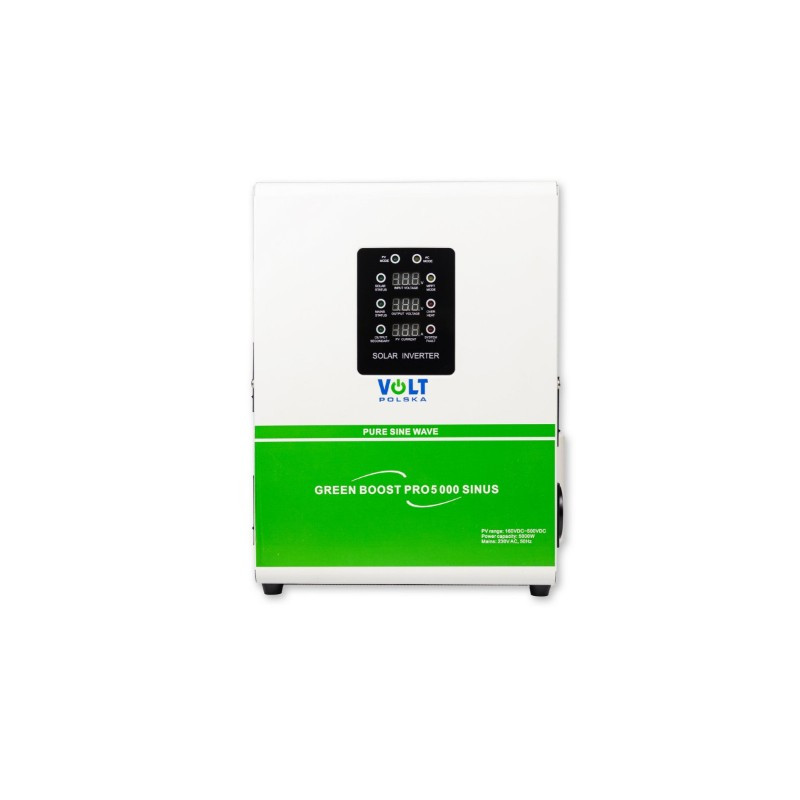

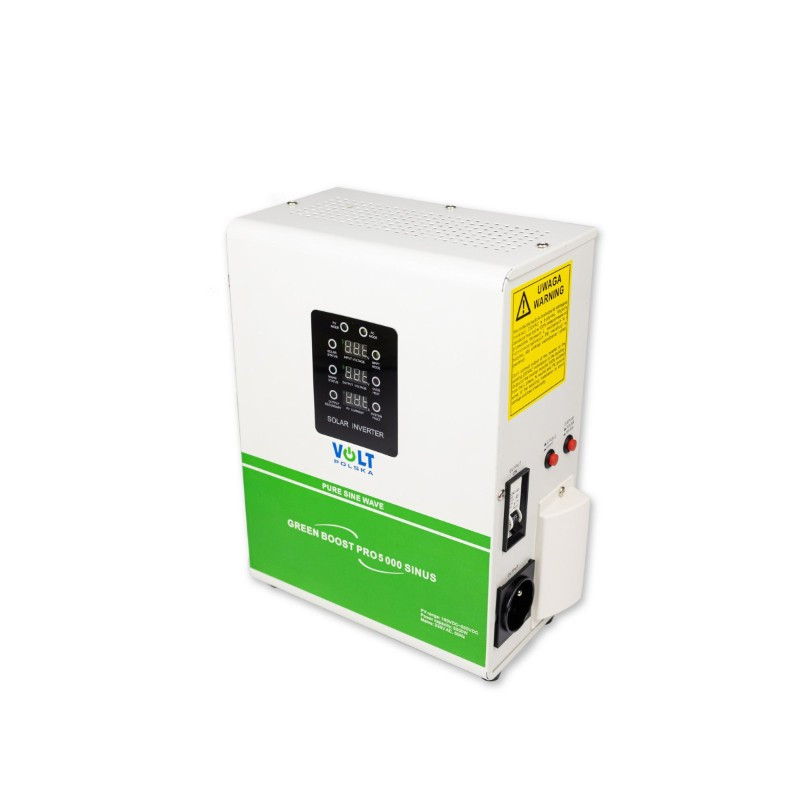

Solar controller VOLT Green Boost Pro 5000 Sinus BYPASS for water heating

Solar inverter GREEN BOOST PRO 5000 SINUS BYPASS is used to power heating devices from photovoltaic panels and the electricity grid.

What makes the GREEN BOOST PRO 5000 SINUS BYPASS solar inverter unique?

Multifunctionality (BYPASS) - the inverter can be connected to both solar panels and the electrical grid.
Pure sine wave - the inverter produces a "sine wave" output voltage. This allows it to power inductive devices such as power tools, air conditioners, refrigerators, freezers, etc.

How does the GREEN BOOST PRO 5000 SINUS BYPASS solar inverter work?
The direct current generated by solar panels is not suitable for directly powering heating devices. The inverter converts it into alternating current that can be used to power heating devices. The panels should be connected in series with a total voltage of up to 500 V (Voc) and an impedance of up to 15 A.

What devices does the GREEN BOOST PRO 5000 SINUS BYPASS solar inverter power?

Electric boilers
Radiators
Electric heaters
Electric mats
Underfloor heating

Technical data

Maximum power:5000 W
Output voltage range:70-245 V AC / 50 Hz
Allowable voltage range from Voc panels:160 V DC - 500 V DC
Maximum power output of PV panels:≤ 5000 W
Maximum DC current from Imp panels:15A
Output voltage type:Pure sine
Solar panel connection:In series
Output socket:1 pcs/1 connection rail
Operating mode:MPPT / STABLE
Display:LED
Overload protection:Yes
Short circuit protection:Yes
Over temperature protection:Yes - 100±10℃
Cooling:Active fans
Warning:Audible and visual signals
Overheat protection:Yes / 100±10℃
Operating Temperature:-25 to +55°C
Storage temperature:-20 to +55°C
Protection Class:IP20
Dimensions:311x232x140mm (including MC-4)
Weight:5.2 kg
