Védőáramkör és egyensúlyozó 2 Li-Ion 18650 cellához, áram max. 5A

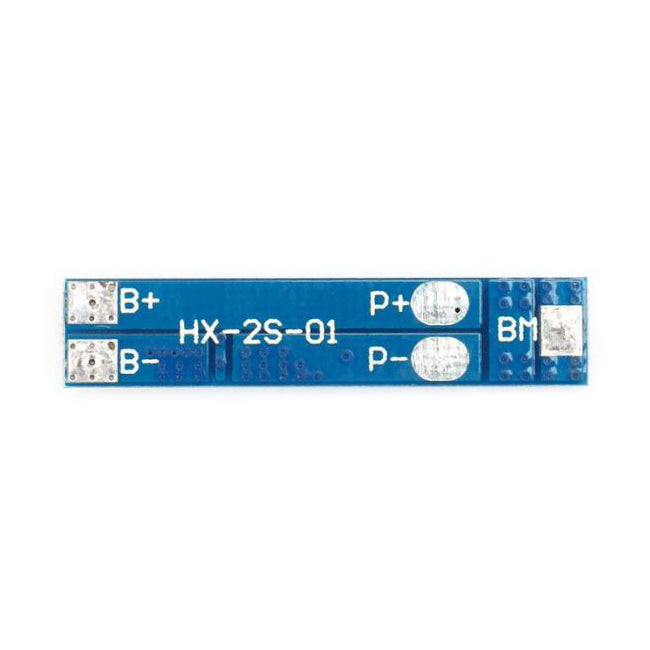

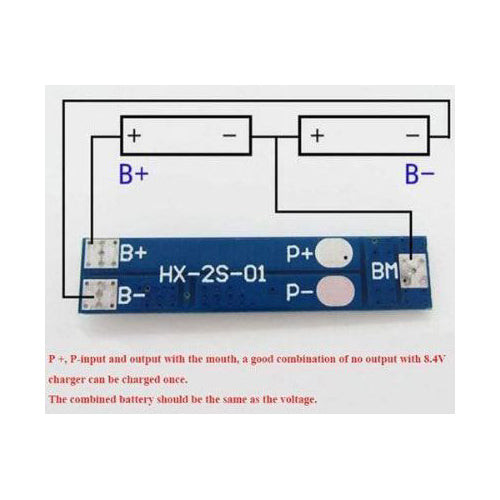

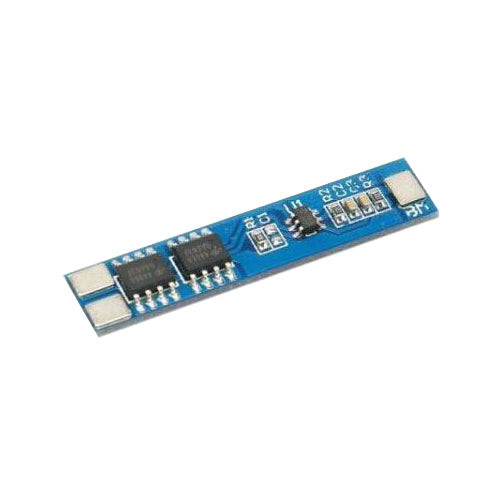

Protection and charging module for two Li-Ion or LiFePO cells with control of each cell separately.. Technical parameters:. -supply voltage: 8.4–9V. -short circuit protection. -load overload protection (max.5A). -protection against overcharging <4.25V. -discharge against discharge> 2.54V. -max.charging current 5A. -dimensions: 36 × 6 × 1mm. Connection:. - B + B-: Battery core interface. - P + P-: Battery board connector. - MB: Connection point between batteries. - B +: Battery V + positive. - B -: Battery V - negative. - P +: V + output / charging. - P -: Output / charging V -. - dimensions: 36 × 6 × 1 mm. The product is not a self-functional unit, it requires professional assembly.
