PWM sebességszabályozó DC motorokhoz 6-60V 30A-ig

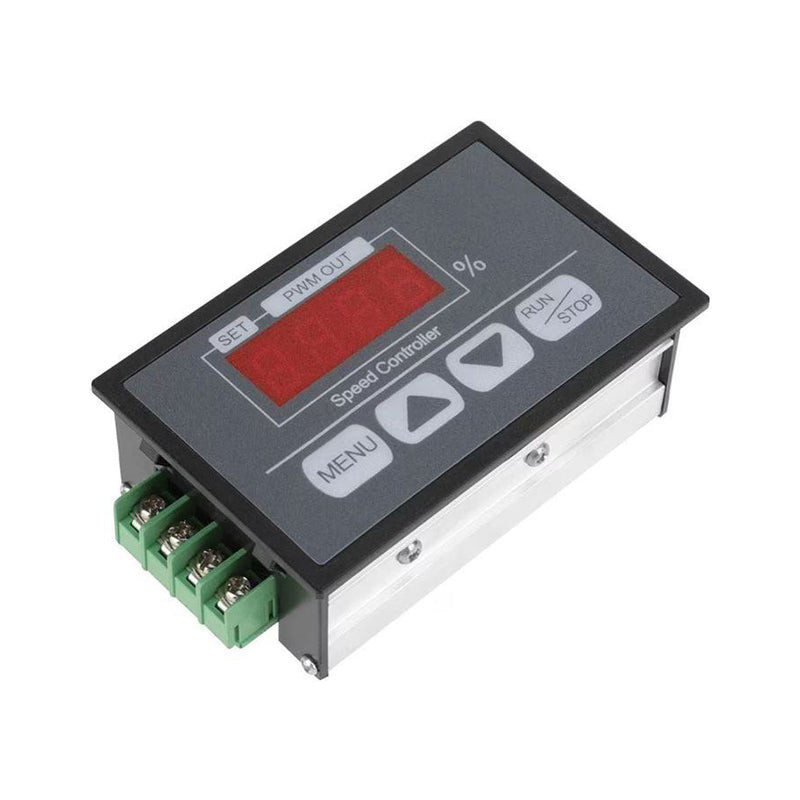

Pulse Width Modulation (PWM) Speed Controller Module for DC Brushed Motors 6–60VDC/30A with Additional Functions for Regulation.. Technical Parameters:. - Input Voltage: 6–60V DC. - Output Voltage: Dependent on load and supply. - Output Current: Max. 30A, continuous 20A. - Speed Regulation Range: 0–100%. - Pulse Frequency: 21kHz. - Panel Dimensions: 96×61mm. - Mounting Hole: 92×56mm. - Weight: 100g. Wiring Description:. - DC Power Terminal: +POWER-. - Motor Connection Terminal: +MOTOR-. - Available Functions:. By pressing the MENU button, you will have access to the following functions. The function number is displayed on the left side of the screen under the label SET. Specific values for each function are set using the up/down arrows and are shown on the right side of the screen under the label PWM OUT. Use the RUN/STOP button to start or stop the set process.. - 1– Startup Time Setting: 0–10 seconds, step 1 second. - 2– Decay Time Setting: 0–10 seconds, step 1 second. - 3– Lower Speed Limit Setting: 0–80%, step 0.4%. - 4– Upper Speed Limit Setting: 0–100%, step 1%. - 5– Speed Change Step Setting: Available steps are 1–2–5–10–15–20 and 25%. Note: The product is not a standalone functional unit and requires professional installation.. Packaging: 1 piece
