Tápegység modul, léptető átalakító CV/CC 1200W /DC-DC töltő

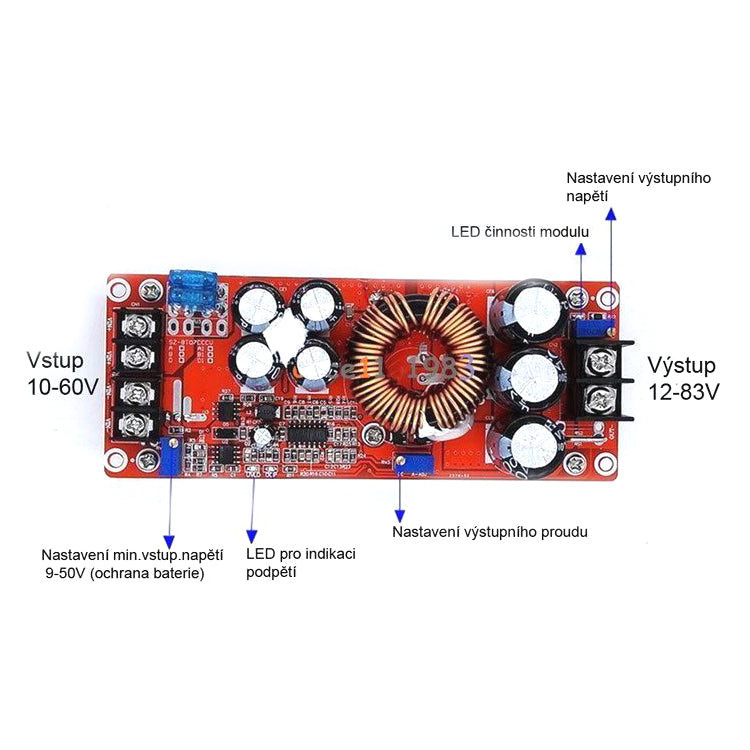

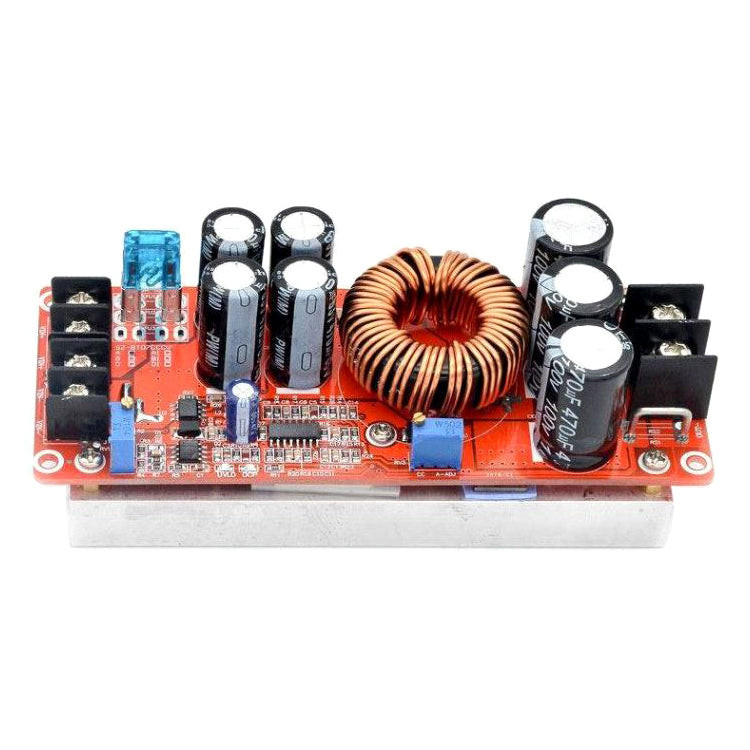

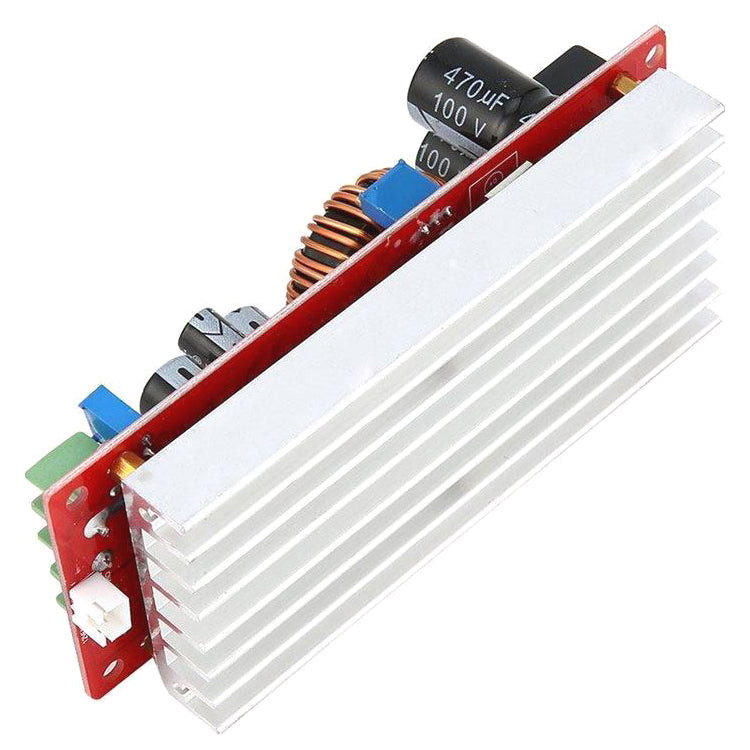

Non-isolated step-up DC-DC pulse converter 10–60V / 12–75V with setting of output voltage 12–75V, current limit 0–20A and minimum input voltage 9–50V for battery protection. The excess of the battery protection voltage setting (> 9V, where Uvst> 10V) is given by the uvst / uvster hysteresis. Fixed voltage 12V for possible fan connection. Its function is predestined for connecting the second battery to cars with a smart alternator, where direct connection of a parallel battery is not possible.. Technical parameters :. - input voltage 10 - 60 V. - input current max. 20 A. - output voltage 12 - 75V adjustable. - output current: 0.3 - 12 A (20 A with fan). - output power max. 1200 W. - input protection fuses-2 × 15A. - no-load current type.15mA. - 12 V output for fan. - undervoltage protection setting: 9–50 V (to charge the external battery, set so that the module is active after starting the vehicle). - efficiency 95%. - dimensions 130 × 52 × 46 mm. The product is not a stand-alone unit, it requires professional installation.
