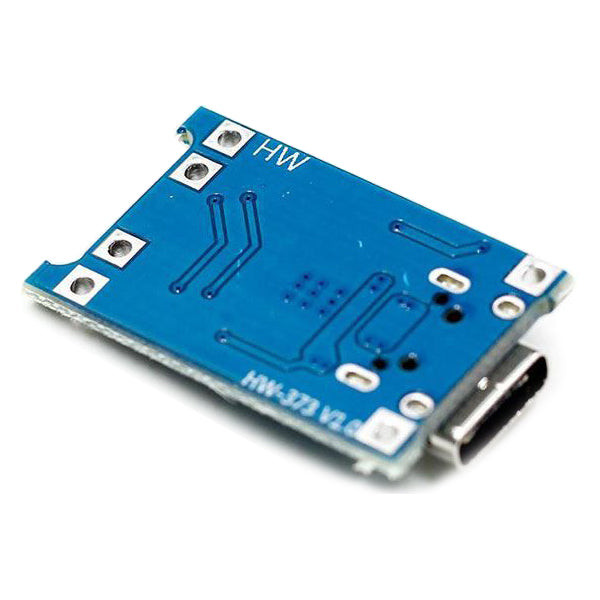

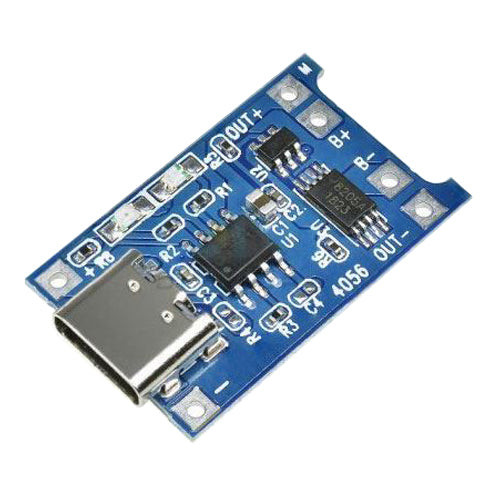

Li-Ion töltő cella 1A védelemmel, modul IC TP4056-tal (USB C)

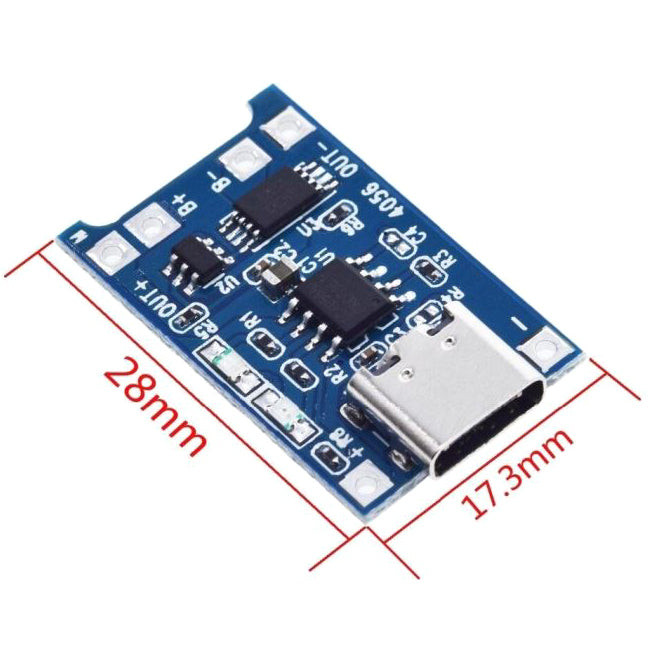

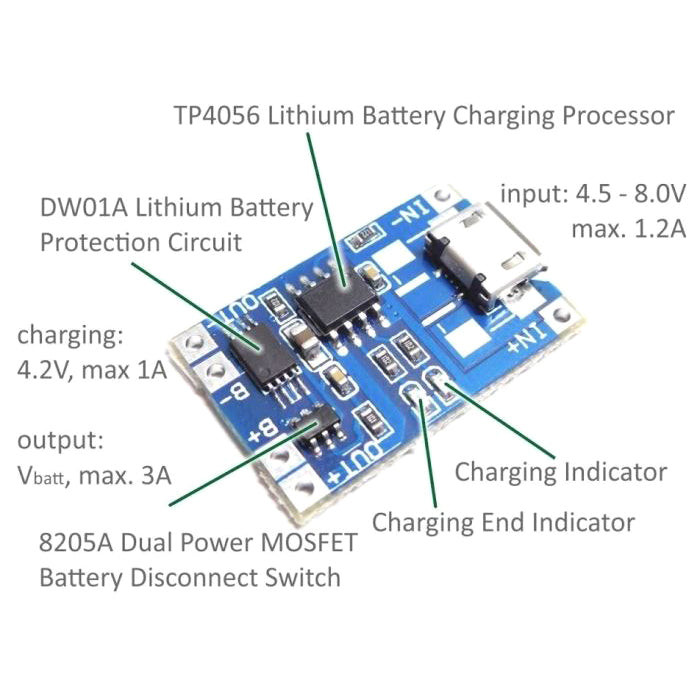

The charger is designed for charging 1-2 lithium cells with a voltage of 3.6V with a constant current of 1A up to a voltage of 4.2V, which it then maintains on the poles of the cell.. Product parameters:. - constant current charging 1A. - end of charging after reaching the terminal voltage of the cell 4.2V. - reconditioning charging with 130mA current if the cell terminal voltage level is <2.9V. When this voltage is reached, the module charges with a rated current of up to 1A. - optical check of charge status. The red LED indicates charging, the blue LED indicates charging is complete.. - protection against excessive discharge. When discharging, it disconnects the cell from the appliance with a terminal voltage <2.4V and reconnects it when Ubat> 3V is reached. Charging of such a discharged cell is possible. - overcurrent and short-circuit protection at discharge current> 3A. Technical parameters :. - IC TP0456 + DW01A, MOSFET FS8205A. - charging method: CC / CV. - input voltage: 4.5 - 6 V. - input connector: USB C. - charging current 1 A. - end of charge: 4.2 V. - reconditioning charging at <2.9 V. - protection against excessive discharge, excessive current and short circuit. - dimensions 25 × 16.5 mm / 1.6 g. The product is not a stand-alone unit, it requires professional installation.
