Non-contact folyadékszint érzékelő – XKC-Y25-V

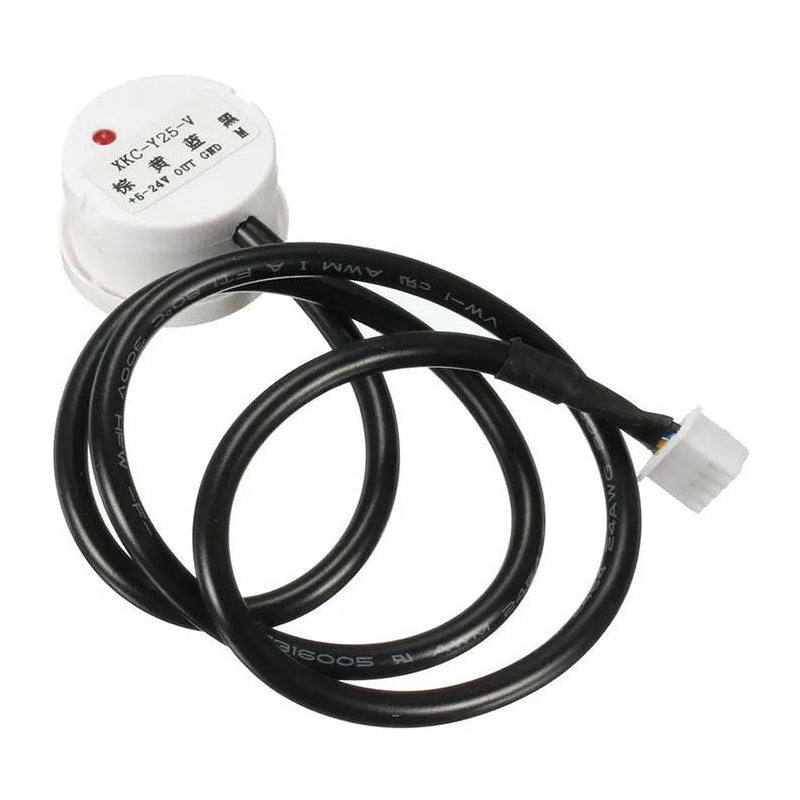

Non-contact Liquid Level Sensor – XKC-Y25-V. The non-contact capacitive sensor XKC-Y25-V is designed for detecting liquid levels through the container wall – without the need for direct contact with the liquid. It is ideal for applications where it is not possible to install a sensor directly into the container due to hygienic, chemical, or safety reasons. It is used in medical devices, coffee machines, automatic water dispensers, and household appliances.. Technical Parameters:. - operating voltage: 5–24V DC. - output type: Digital (HIGH/LOW). - detection distance: 0–12 mm (depends on container material). - response time: <500 ms. - detection through materials: plastic, glass. - operating temperature range: -25 to +105 °C. - ingress protection: IP67. - compact design, easy installation with adhesive layer. Advantages:. - Non-contact detection – no wear and tear or contact with the liquid. - Suitable for various container types and liquids. - Easy connection and stable operation. Packing: 1pc
