LiFePO4 12.8V 100Ah LEXTON LXLFP100 battery with BMS

LITHIUM IRON PHOSPHATE BATTERY WITH BMS LiFePO4 12.8V 100Ah 150A 1280Wh
LiFePO4 (lithium iron phosphate) batteries with built-in BMS

LiFePO4 (lithium iron phosphate) batteries with built-in BMS are characterized primarily by their very low weight and long service life - approximately 6,000 cycles at DoD 60%. Thanks to their high service life and very low self-discharge, LiFePO4 batteries are ideal for both emergency power systems and off-grid installations. Their low weight allows them to be used in installations in vehicles (caravans, mobile food trucks) and ships. The built-in BMS system ensures long-term storage of the battery without loss of nominal capacity and monitors the battery charging and discharging processes.

What devices are powered by LiFePO4 batteries?
Emergency power systems.
Off-grid installation
Installation in vehicles (caravans, mobile food trucks).
Electrical installations in boats to power electronic devices, lighting, household appliances (ONLY when using a hermetic battery cover)

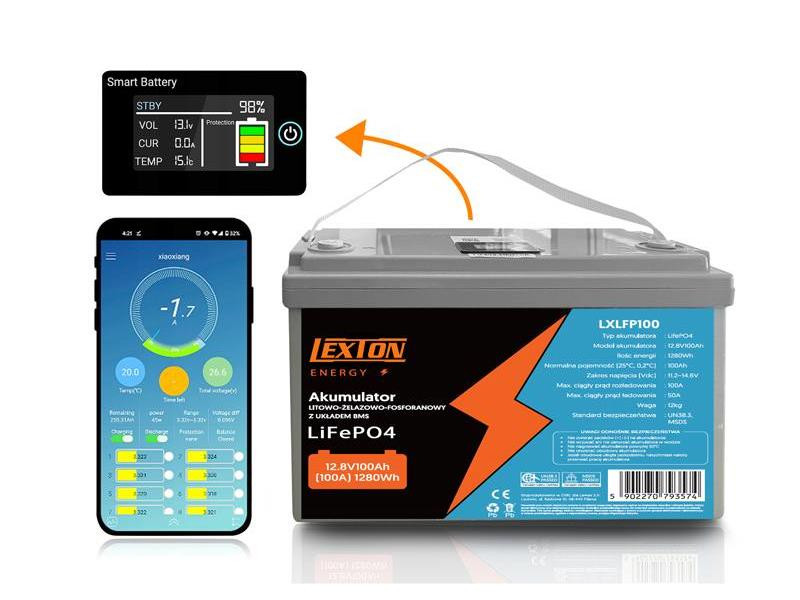

Built-in LCD display and Bluetooth connection

The battery is equipped with a clear LCD display that allows continuous monitoring of the charge status, voltage and other operating parameters. Thanks to Bluetooth connection, users can easily connect the battery to a mobile application, which allows remote management and control of parameters using a smartphone or tablet.

Advanced security and reliability

The 100Ah LiFePO4 battery is equipped with overvoltage and overload protection, ensuring safe use in various conditions. With a nominal voltage of 12.8V and a voltage range of 11.2V to 14.6V, the battery provides stable power for a wide range of devices. The standby voltage is 14V, which optimizes energy consumption and extends the device's runtime.

High performance and long life

With a capacity of 100 Ah and an energy output of 1280 Wh, the battery provides high performance and long operating time per charge. The maximum charge and discharge current of 100 A allows for fast charging and efficient energy utilization. The duty cycle of over 3000 cycles makes the battery extremely durable and long-lasting, which translates into lower operating costs in the long run.

CAUTION:

When using a LIFEPO4 battery to power devices with an electric motor, including propeller motors, it is mandatory to use a DC fuse on the (+) circuit of the battery with a value no greater than the maximum load current indicated on the cover.

Battery Type LifePO4
Battery Model 12.8V 100Ah
Energy Capacity 1280Wh
Normal Capacity (25°C, 0.2°C) 100Ah
Voltage Range (Vdc) 11.2~14.6V
Maximum Continuous Discharge Current 100A
Maximum Continuous Charge Current 50A
Weight 12kg
Safety Standard UN38.3,
Dimensions (W x H x D) 330 x 215 x 175mm
