Multiméter UNI-T Szigetelés ellenállás UT505A

60 740,16 Ft + ÁFA (77 140 Ft)

Termék beérkezés ha nincs készleten:

2-8 nap

Kosárba

Leírás:
Szigetelési ellenállás:
Vizsgálati feszültség: 50V / 100V / 250V / 500V / 1000V; 0% - 10%
50V: 0.01 ~ 50.0 MOhm MOhm; ± (3% + 5)
100V: 0.01 ~ 100,0 MOhm MOhm; ± (3% + 5)
250V: 0.01 ~ 200,0 MOhm MOhm; ± (1.5% + 5)
500V: 0,01 ~ 500 MOhm MOhm; ± (1.5% + 5)
1000V: 0,1 ~ 2000 MOhm MOhm; ± (1.5% + 5)
2.0GOhm-9.9GOhm; ± (10% + 3)
10.0GOhm-20Gohm; ± (20% + 10)
Névleges áram: 50V (R = 50KOhm) 1mA 0% ~ 10%
100V (R = 100 KOhm) 1mA 0% ~ 10%
250V (R = 250 KOhm) 1mA 0% ~ 10%
500V ( R = 500 KOhm) 1mA 0% ~ 10%
1000V (R = 1 MW) 0% ~ 10% 1mA
feszültség DC: 0.0V ~ 600.0V; ± (2% + 3)
AC feszültség: 0.0V ~ 600.0V; ± (2% + 3)
Automatikus zoomolás
RMS
mérés abszorpciós együttható: 60 / 15s és 60s / 30s
Auto letöltés
Auto-Off
-folytonossági
kijelző háttérvilágítás
akkumulátor
feszültség: 6 x 1,5 V (LR6)
Leírás Angol

Részletek Hasonló termékek Adatok Vélemények

Description

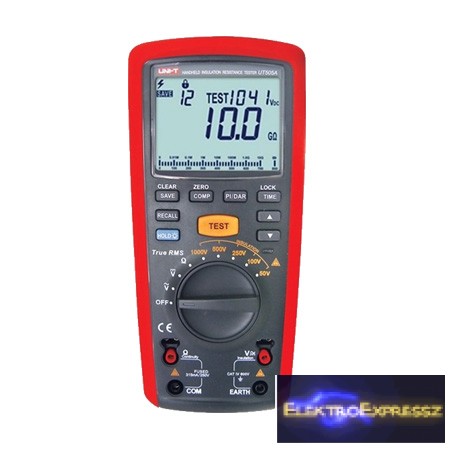

Handheld Insulation Resistance Tester UNI-T UT505A

- great value in small and ergonomic body
- testing voltage from 50V up to 1000V
- testing current smaller than 2mA = will not trigger normal RCD
- TRMS, lot of functions, automatic range switching
- CATIII 1000V, CATIV 600V

Functions:

- step voltage, 10% steps at 50% ~ 120% of range
- dielectric absorption index (DAR) 60s/15s and 60s/30s
- polarization index(PI)
- comparison
- timer
- high voltage indication
- automatic range switching
- true RMS
- auto range switching
- continuity buzzer
- low battery indication
- data hold
- data logging 99 values
- display backlight

Specifications:

Insulation resistance:
- testing voltage: 50V / 100V / 250V / 500V / 1000V
- 50V 0.1MΩ ~ 50.0MΩ ± (3%+5)
- 100V 0.1MΩ ~ 100.0MΩ ± (3%+5)
- 250V 0.01MΩ ~ 200.0MΩ ± (1.5%+5)
- 500V 0.01MΩ~500MΩ ± (1.5%+5)
- 1000V 0.1MΩ ~ 2000MΩ ± (1.5%+5)
- 1000V 2GΩ ~ 9.9GΩ ± (10%+5)
- 1000V 10GΩ ~ 20.0GΩ ± (20%+5)
- load current 1mA (50V@50kΩ, 100V@100kΩ, 250V@250kΩ, 500V@500kΩ, 1000V@1MΩ)
- short circuit current <2mA
- low resistance: 0.01Ω ~ 20.00kΩ ± (1.5%+3) about 5.0V/>200mA
- DC voltage: 0-600V ± (2%+3)
- AC voltage: 0-600V (45Hz~1kHz) ± (2%+3)

General characteristics:

- power: 6x1,5V alkaline battery LR6
- display size: 78x59mm
- weight: 630g
- size: 103x225x59 mm

Accessories: test leads, probe, alligator clip, batteries, manuals, carrying bag

Manufacturer: UNI-TREND
