Description

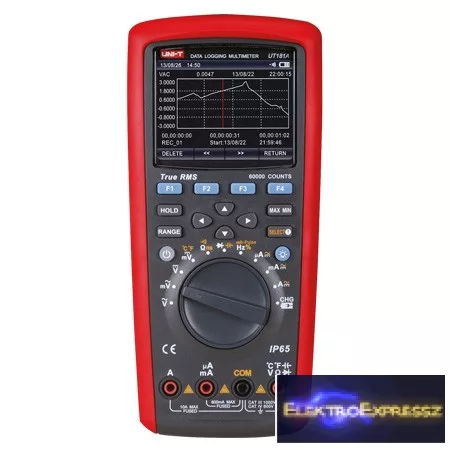

The UNI-T UT181A is an intelligent hand-held multimeter with automatic or manual range switching that measures RMS values, maximum, minimum or average. The device belongs to a higher class, excels in quality design and reliability and is suitable for industrial use. Waterproof and dustproof is in IP65 category. The display is a backlit graphic LCD, with a maximum resolution of 4 5/6 digit, the maximum display value being ± 60000. The multimeter allows to measure AC / DC voltages and currents, resistance, diode test, continuity test, capacitance, frequency, duty cycle, temperature, conductivity, comparative measurement, relative value measurement, peak detection and data logging of up to 20,000 data. The device allows data to be stored on a PC using a USB adapter with optical separation or Bluetooth. The display includes an analog indicator - bargraph with 61 sections.The multimeter has an internal clock that displays the time and date that can be automatically assigned to stored samples of measured values in the 1sec to 1 hour interval, including the time to save (up to days). Possibility to include a low-pass filter for measurement on inverters and generators. Two-channel temperature measurement possible. The fuses are protected by tube fuses (range 10A fuse FF 10A H / 1000V (10 x 38mm); range mA/µA fuse FF 800mA H / 600V (6 x 32mm)). The device can test its own fuses (without opening the device). The multimeter is powered by a 7.4V / 2200mAh lithium battery. Included are test leads with tips in safety category CAT III 1000V and CAT IV 600V.

Product parameters :

- fully complies with IEC / EN61010-1, and has double insulation
- categorized as CAT III 1000V - internal el. installation including three-phase distribution
- categorized as CAT IV 600V - outdoor el. installation (belay elements, beginning of internal installation)
- Display type color (64K color), graphic TFT LCD 3.5 "with dot matrix 320 x 240 pixels
- the maximum display is 60000,
- Display of 60000 frequency measurement display
- Display for capacity measurement 6000
- setting ranges automatic or manual
- High precision
- AC voltages measuring ranges - 60 mV / 1000 V for frequencies 45Hz to 100kHz
- AC currents measuring ranges - 600 μA / 10 A for frequencies 45Hz to 10kHz
- DC voltages measuring ranges - 60 mV / 1000 V
- DC currents measuring ranges - 600 μA / 10 A
- AC+DC measuring ranges ( AC voltages with DC component) - 60mV / 1000V
- AC+DC measuring ranges ( AC currents with DC component)- 600µA / 10A
- resistance ranges - 600 Ω / 60 MΩ
- capacitor capacity measuring ranges - 6.00 nF / 60.00 mF
- measuring ranges from 60 Hz to 60 MHz
- Rectangular signal generator 0.5Hz to 4800Hz
- Measuring range 10% to 99% (10Hz to 2kHz)
- pulse width measuring range 0 to 250.0ms
- conductivity measuring range 60nS
- temperature measuring range -40°C ~ 1000°C, (with supplied K- type thermocouples nickel-chrome-nickel-silicon only up to + 230°C)
- analogue scale Bargraf, 61 divisions
- TRMS, measurement of voltage rms voltage st. voltage and currents
- during AC voltage measurement, the frequency display or the voltage duty cycle can be measured on the secondary display
- on the secondary display it is also possible to measure the AC component mounted on DC voltage
- datalogging 20000 values
- relative measurement mode
- possibility to measure in logarithmic values ​​dBV and dBm, with simultaneous display of voltage on secondary display in V
- possibility of storing measured values ​​samples in the interval of 1sec to 1 hour, including the time for which to save (up to days)
- measurement of MAX and MIN peaks with 1ms response
- Indication of poor wiring
- Low battery indication
- automatic shutdown (idle sleep, idle time can be set in MENU)
- Overload protection of voltage inputs
- protection of current inputs with fast fuses
- input impedance 10MΩ
- test of diodes and semiconductor transitions with voltage 0 to 3V
- Battery powered by LiIon 7.4V / 2200mAh
- supplied USB cable with converter including software on CD
- Optional UT-D08 Bluetooth adapter available
- supplied DC 10V / 500mA power supply with accessories
- measurement in elmag is also possible. field with intensity 1V / m with additional error 5%


Technical parameters :
(accuracy is defined at 23°C ± 5°C and relative humidity less than or equal to 75%, calibration is recommended once a year)


- DC voltage measurement ( input impedance is 10MΩ ):
( range / resolution / accuracy )
60.00 mV / 1µV / ± 0.025 % + 20
600.00 mV / 10µV / ± 0.025 % + 5
6.0000 V / 0.1 mV / ± 0.025 % + 5
60.000 V / 1mV / ± 0.025 % + 5
600.00 V / 10mV / ± 0.03 % + 5
1000.0 V / 0.1V / ± 0.03% + 5


- AC voltage measurement ( input impedance approx. 10MΩ ; 45Hz to 1kHz ; 1kHz to 10kHz ; 10kHz to 20kHz ; 20kHz to 100kHz ) :
( range / resolution / accuracy up to 1kHz / accuracy up to 10kHz / accuracy up to 20kHz / accuracy up to 100kHz)
60.00 mV / 1µV / ± 0.6 % +60 / ± 1.2 % + 60 / ±3 % + 60 / ±4 % + 60
600.00 mV / 10µV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / ±4 % + 40
6.0000 V / 0.1 mV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / ±4 % + 40
60.000 V / 1mV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / ±4 % + 40
600.00 V / 10mV / ± 0.3 % +30 / ± 1.2 % + 40 / ±3 % + 40 / indicative only
1000.0 V / 0.1V / ± 0.6% + 30 / ± 3 % + 40 / ±6 % + 40 / indicative only


- AC+DC voltage measurement ( input impedance approx.10MΩ ; 45Hz to 1kHz ; 1kHz to 10kHz ; 10kHz to 35kHz ) :
( range / resolution / accuracy up to 1kHz / accuracy up to 10kHz / accuracy up to 35kHz)
60.00 mV / 1µV / ± 1 % +80 / ± 3 % + 40 / ±6 % + 60
600.00 mV / 10µV / ± 1 % +80 / ± 3 % + 40 / ±6 % + 40
6.0000 V / 0.1 mV / ± 1 % +80 / ± 3 % + 40 / ±6 % + 40
60.000 V / 1mV / ± 1 % +80 / ± 3 % + 40 / ±6 % + 40
600.00 V / 10mV / ± 1 % +80 / indicative only / indicative only
1000.0 V / 0.1V / ± 1.2 % + 80 / indicative only / indicative only


- DC current measurement :
( range / resolution / accuracy )
600.0 μA / 0.01 μA / ± 0.25 % + 20
6000.0 μA / 0.1 μA / ± 0.25 % + 2
60.000 mA / 1μA / ± 0.7 % + 2
600.0 mA / 10μA / ± 0.15% + 2
6.000 A / 0.1mA / ± 0.5 % + 3
10.000 A / 1m A / ± 0.5 % + 2


- AC current measurement ( 45Hz to 1kHz ; 1kHz to 10kHz ) :
( range / resolution / accuracy up to 1kHz / accuracy up to 10 kHz )
600.00 μA / 0.01 μA / ± 0.6 % + 40 / ± 1.2 % + 40
6000.0 μA / 0.1 μA / ± 0.6 % + 20 / ± 1.2 % + 40
60.000 mA / 1µA / ± 0.6 % + 40 / ± 1.2 % + 40
600.00mA / 10µA / ± 0.6 % + 20 / ± 1.2 % + 40
10.000A / 1m A / ± 1 % + 20 / ± 3 % + 40


- AC+DC current measurement ( 50Hz to 1kHz ; 1kHz to 10kHz ) :
( range / resolution / accuracy up to 1kHz / accuracy up to 10 kHz )
600.00 μA / 0.01 μA / ± 0.8 % + 40 / ± 2 % + 40
6000.0 μA / 0.1 μA / ± 0.8 % + 20 / ± 2 % + 40
60.000 mA / 1µA / ± 0.8 % + 40 / ± 2 % + 40
600.00mA / 10µA / ± 0.8 % + 20 / ± 2 % + 40
10.000A / 1m A / ± 1.2 % + 20 / ± 3 % + 40


- Resistance and conductivity measurements :
( range / resolution / accuracy)
600.00 Ω / 0.01 Ω / In REL mode : ± 0.05% + 10
6.0000 kΩ / 0.1 Ω / ± 0.05 % + 2
60.000 kΩ / 1Ω / ± 0.05 % + 2
600.00 kΩ / 1Ω / ± 0.05 % + 2
6.0000 MΩ / 0.1kΩ / ± 0.3% + 10
60.000 MΩ / 1 kΩ / ± 2 % + 10
60.00nS / 0.01nS / ± 2 % + 10 ( S = Siemens unit)


- Capacitor capacity measurement :
( range / resolution / accuracy )
6.000 nF / 1 pF / ± 3.0 % + 10
60.00 nF / 10pf / ± 2.5 % + 5
600 nF až 600 µF / 0.1 nF až 0.01 µF / ± 2 % + 5
6 mF / 1 µF / ± 5 % + 5
60 mF / 10 µF / Not specified

- Measurement of frequency, duty cycle and period ( pulse width ) :
( range / resolution / accuracy)
60.000 Hz / 0.001 Hz / ± 0.02 % + 8
600 Hz to 60 MHz / 0.01 Hz to 0.001 MHz / ± 0.01 % + 5
10 % to 90 % ( 10Hz to 2kHz ) / 0.01 % / ± 1.2 % + 30
250ms / 1µs to 0.1ms / ± 1.2 % + 30


- display type: 64K color TFT LCD, with dot matrix 320 x 240 px
- number of digit: 60000
- analog line: 61 segments
- power supply: battery LiIon 7,4V / 2200mAh
- fuse protection 10A with fuse FF 10A H / 1000V (10 x 38mm)
- fuse protection mA / µA fuse FF 800mA H / 1000V (6 x 32mm)
- device dimensions: 225 x 103 x 59 mm
- weight: approx. 638 g (including battery)
- working temperature: -20°C to 50°C
- operating relative humidity at 0°C to 30°C less than or equal to 80% ; at 30°C to 40°C less than or equal to 75% ; at 40°C to 50°C less than or equal to 45%;
- working altitude 0 to 2000m
- storage temperature: - 30°C to 60°C
- Option to purchase a UT-D07 Bluetooth adapter for transferring values ​​to a PC
- The device meets the standards:
cETLus, CAT III 1000V, CAT IV 600V, double insulation, overload protection greater than 1000V
EN 61326-1: 2013; EN 61326-2-2: 2013
EN 61010-1: 2010; EN 61010-2-030: 2010; EN 61010-2-033: 2012
Conforms to UL STD .: 61010-1, 61010-2-030
Certified to CSA STD. C22.2 No. 61010-1, 61010-2-
