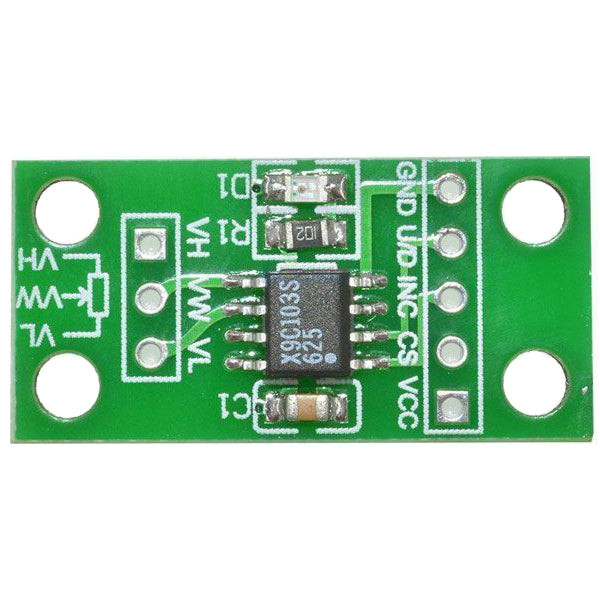

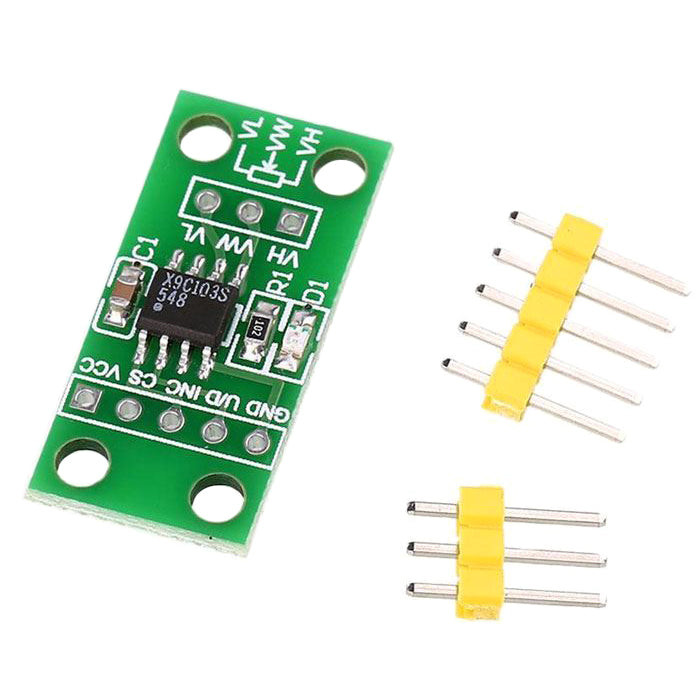

Digitális potenciométer 10kohm, X9C103S modullal

Digital potentiometer for microcontrollers.. Technical parameters:. - IC X9C103S. - resistance: 10 kohm. - operating voltage: 5V. - maximum active current: 3 mA. - maximum stand-by current: 0.5 mA. - maximum potentiometer voltage: from -5 to 5 V. - 100 adjustable positions. Connection:. - for successful connection of digital potentiometer and Arduino board we connect a total of 5 wires. Connect GND to ground Arduino, U / D to pin D5, INC to pin D4, CS to pin D3 and VCC to + 5V Arduino.. The product is not a self-functional unit, it requires professional assembly.
