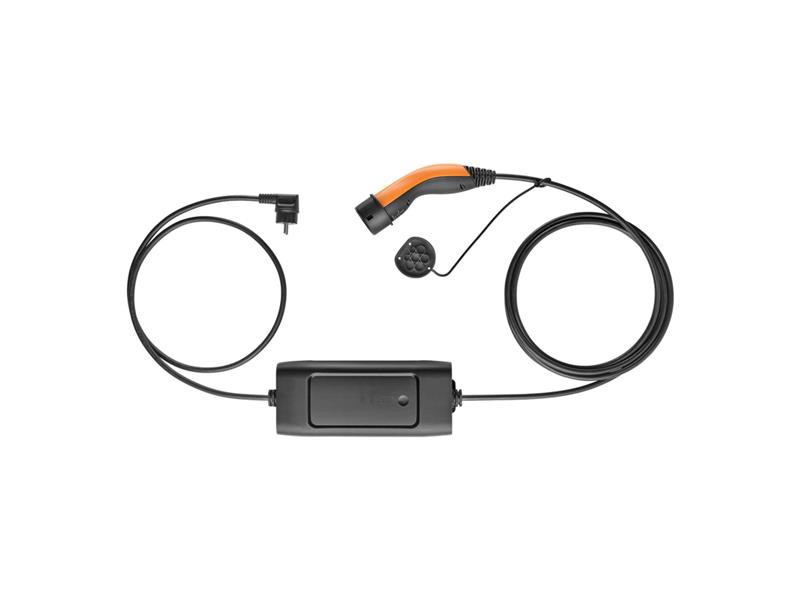

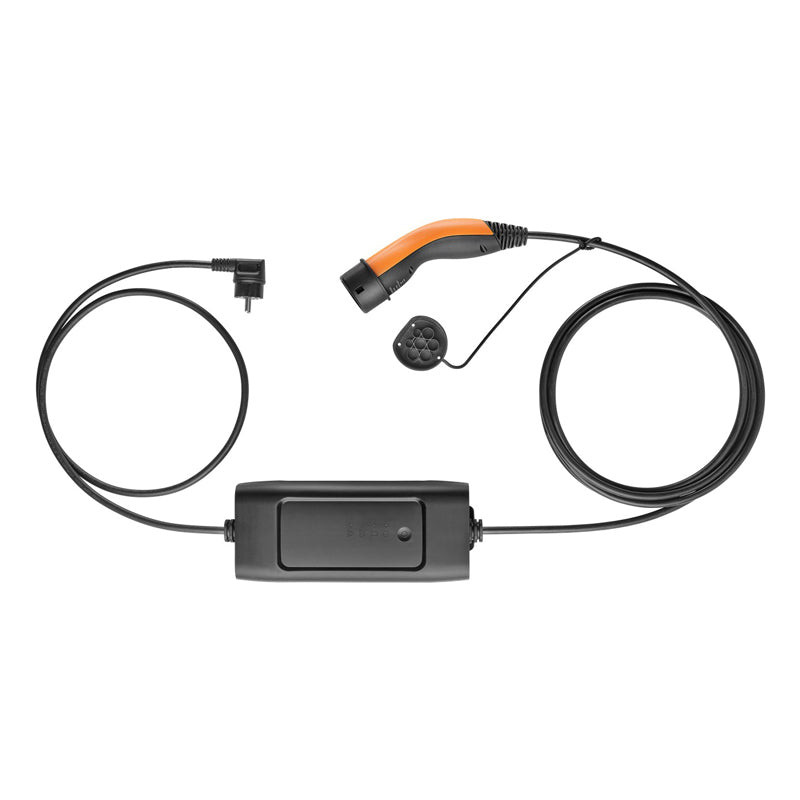

Charging station LAPP 64694 Basic typ 2 2,3kW 10A

For charging hybrid and electric cars with type 2 connection

The LAPP Charging Station Basic connects your electric car directly to the power source – providing full flexibility via a safety plug. Simply connect the type 2 cable connector to the car and the plug to the outlet. The on-board electronics automatically start and complete the charging process.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

The LAPP Mode 2 charger provides simple mobile charging via standard mains sockets (CEE 7/3 safety socket, type E/F plug) and is ideal in the garage at home or as an emergency charging cable on the go.
The ideal solution for safe and stable charging with a power of up to 2.3 kW and a nominal voltage of 240 V (AC) with a connected control box
Heavy-duty vehicle-resistant cables and plugs with silver-plated contacts and a drop-resistant control box (watertight to IP67) provide extra durability
A cover on the vehicle-side clutch keeps out dust, dirt and water between charges
EV charging cable with high protection against moisture according to IP55, operating temperature -25 °C to 45 °C
The Type 2 to Type 2 EV charging cable takes up little space and is easy to handle thanks to its light weight.
Particularly safe thanks to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the control box in the cable (ICCB)

Technical parameters:

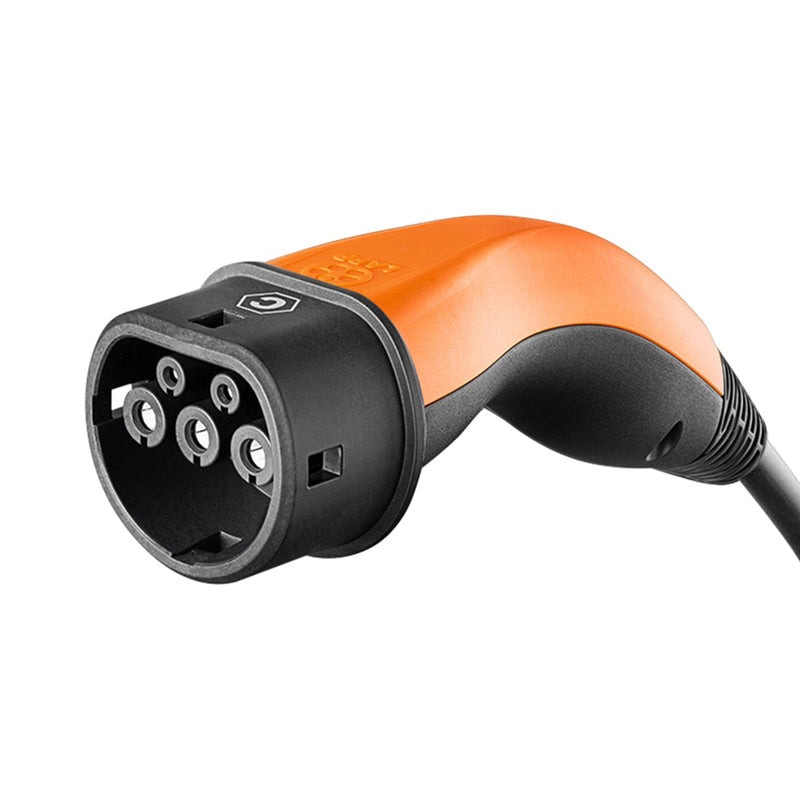

Connection, type: plug type 2 female
Connection 2, type: safety plug hybrid (type E/F, CEE 7/7)
Power: 2.3 kW

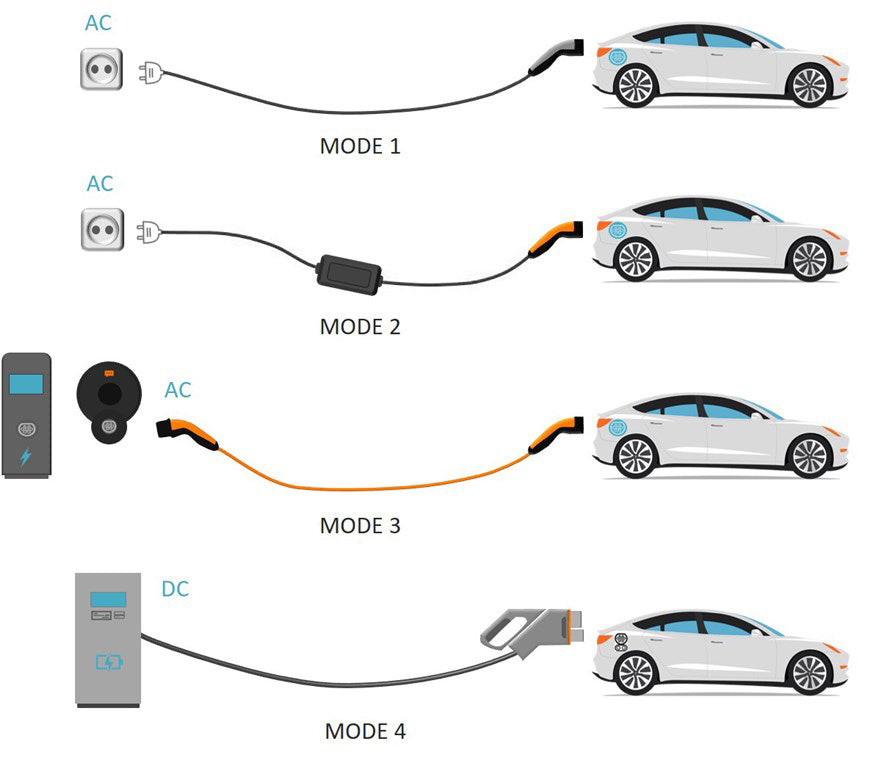

Charging Mode: Mode 2
Rated voltage: 230 V (AC)
maximum current capacity: 10 A
Cable:
Number of stages: 1
Cable sheath material: ÖLFLEX® CHARGE
Internal conductor cross-section: 2.5 mm²
Cable length: 6 m
Cable type: smooth cable
Color: black
Marking: WEEE, CE
Operating temperature from: -25 °C
Operating temperature up to: 45 °C
