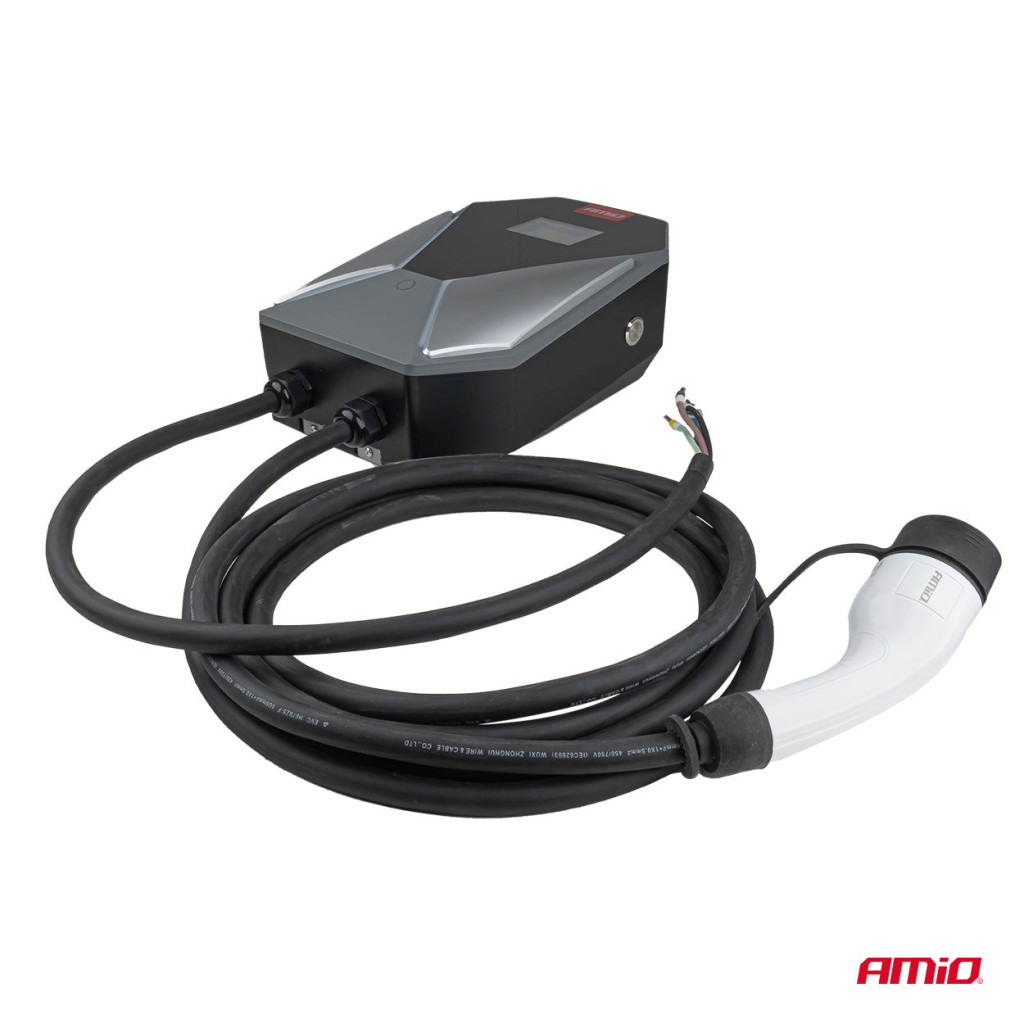

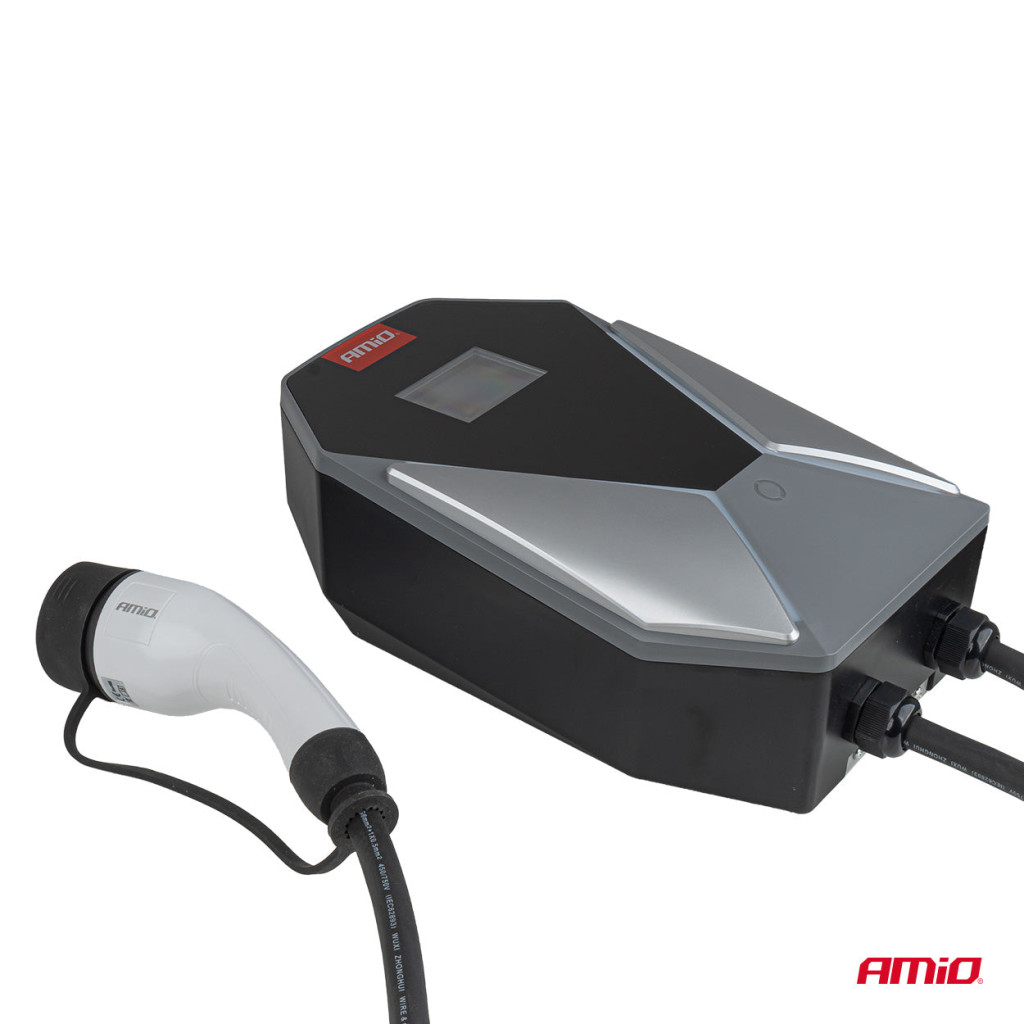

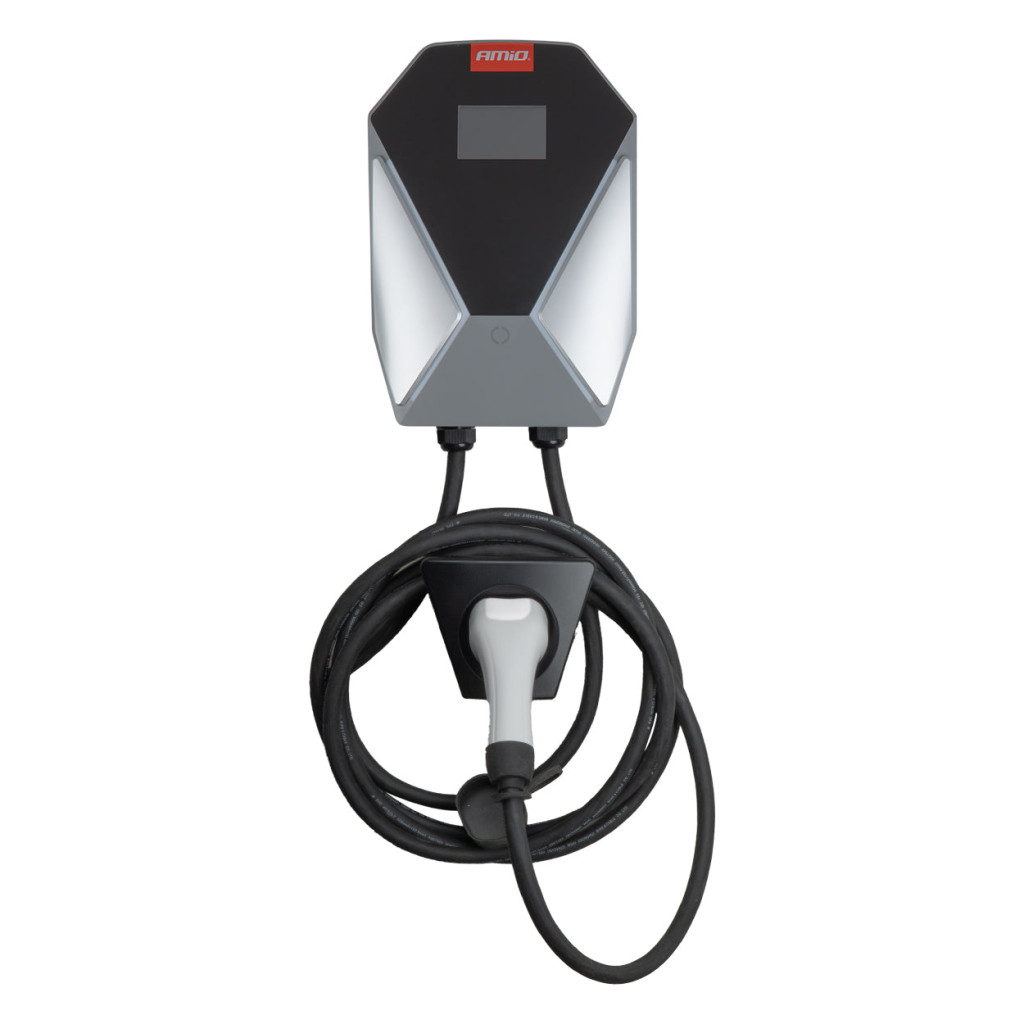

Charging station AMIO 04843 22kW 5m

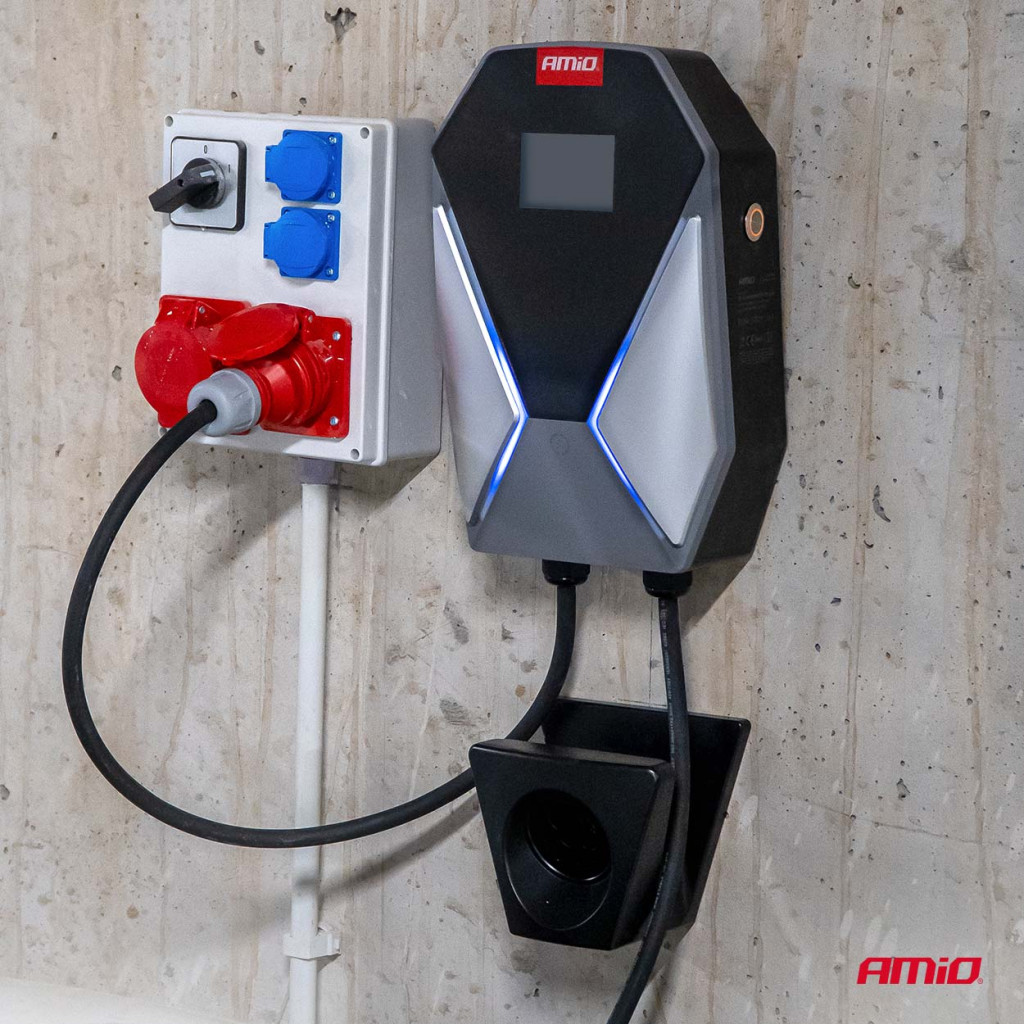

The 22 kW wall charger for electric vehicles is a three-phase AC device designed for professional, commercial and intensive use in private and fleet installations. With its higher charging power, it provides a solution for users who expect maximum efficiency and shorter charging times.. The device operates in a three-phase 400 V system at 32 A (50/60 Hz), ensuring high energy efficiency and stable operation even in demanding conditions. The integrated LCD display allows continuous monitoring of operating parameters.. The charger is equipped with a comprehensive protection system that includes:. current protection (AC/DC, 0.2 mA sensitivity),. overload protection,. over-voltage and under-voltage protection,. short circuit protection,. protection against leakage to earth,. grounding control.. The device complies with IEC62752 and IEC62955 standards. The RN8302B metering module used ensures very high accuracy of energy measurement (error < 0.1%, class 0.5S and 0.2S), which enables accurate billing of energy consumption especially in commercial applications.. The integrated RCPD-14AS75 current protector provides advanced AC/DC detection in line with the safety requirements of modern EV installations.. The IP66-rated enclosure and IP55-rated connector guarantee high resistance to weather and environmental influences. The operating range includes temperatures from -30 °C to +50 °C, humidity from 5 to 95% and altitudes up to 2000 m above sea level.. Technical parameters:. Power: 22 kW. Voltage: 400 V. Current: 32 A. Type: AC, three-phase. Charging cable length: 5 m (5000 mm). Power cable cross-section: 5 × 6 mm2. Short-circuit current: 1500 A (IEC 62752:2016 + AMD1:2018). The device is designed for continuous operation and offers high reliability, safety and compliance with current electric vehicle charging infrastructure standards.
