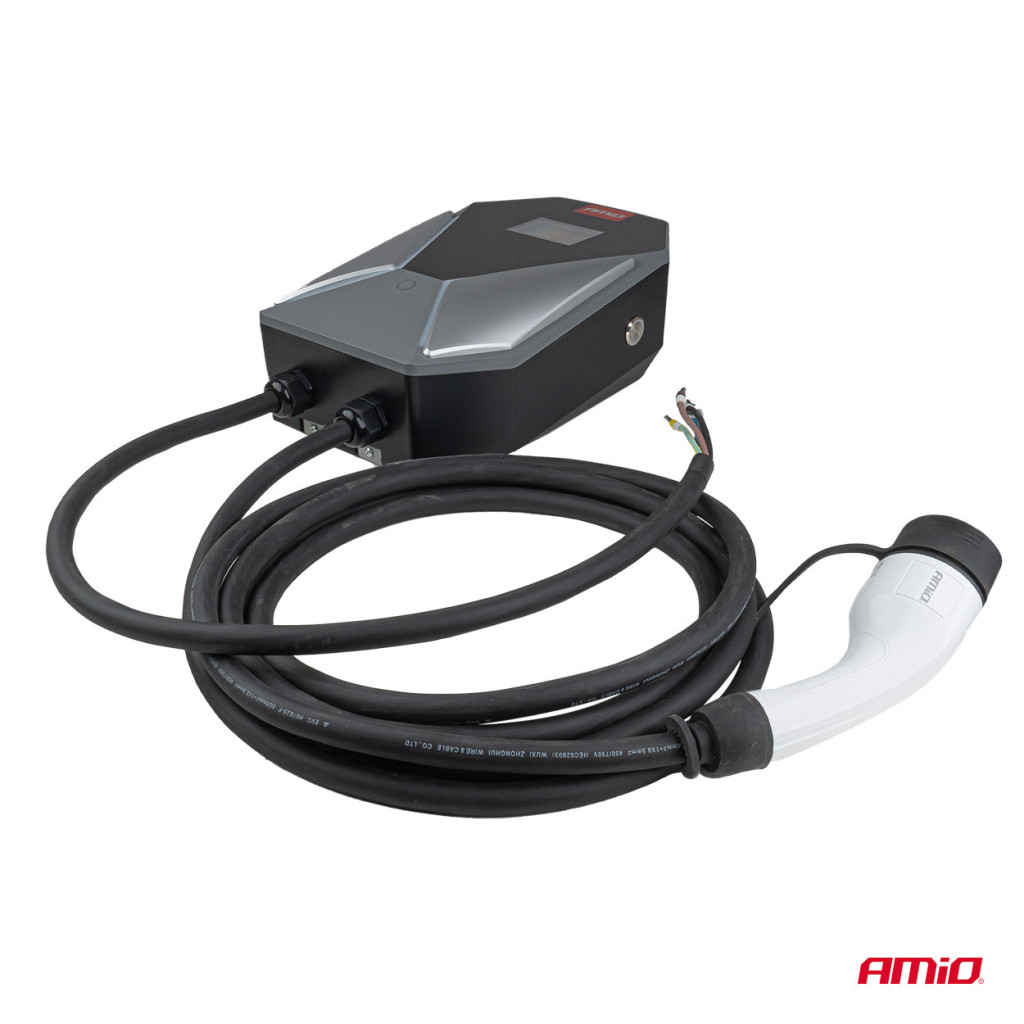

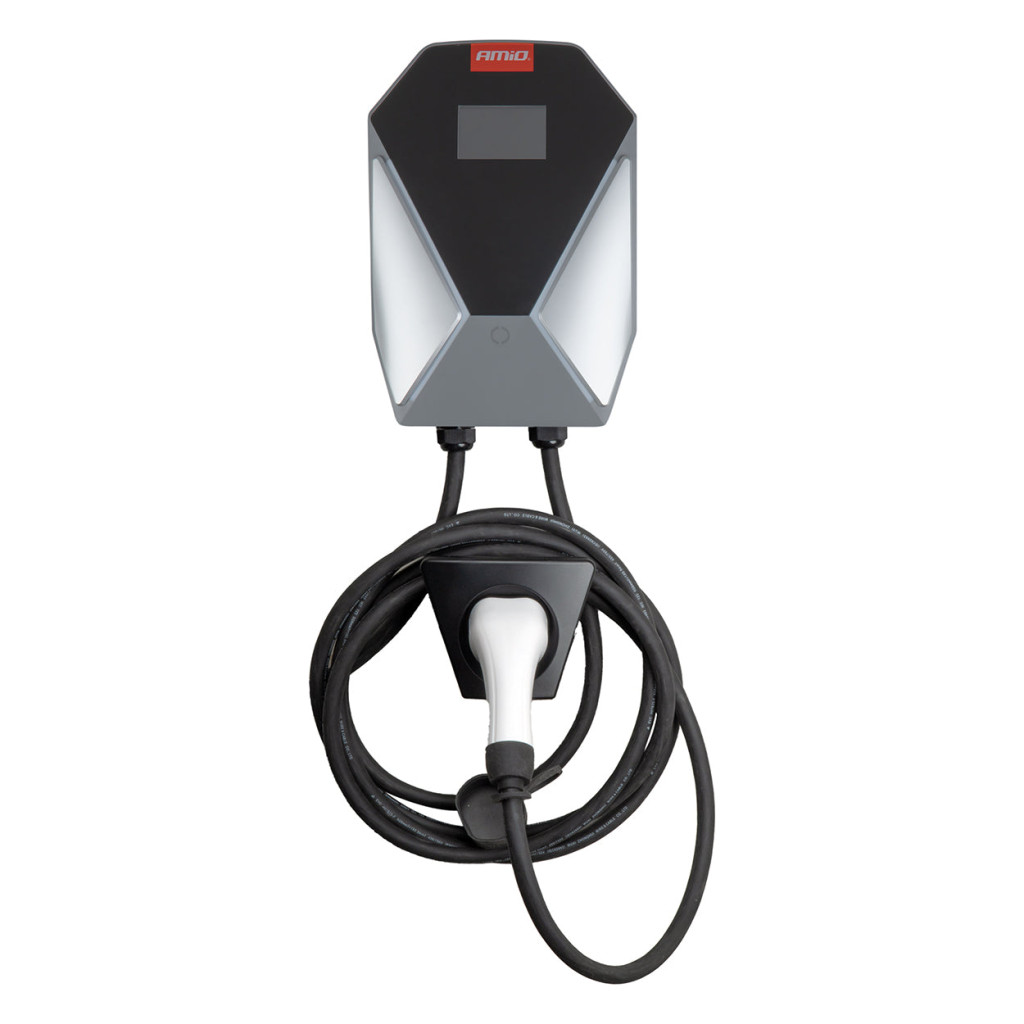

Charging station AMIO 04842 11kW 5m

The 11 kW wall charger for electric vehicles is a three-phase device designed for professional AC installations in commercial, fleet and private applications. It combines high reliability, compliance with safety standards and convenience in everyday use.. The device operates in a three-phase 400 V system at 16 A (50/60 Hz), ensuring stable and efficient charging of electric vehicles. The integrated LCD display allows continuous monitoring of operating parameters, thus increasing control over the charging process.. The advanced protection system includes:. Current protection (AC/DC, 0.2 mA sensitivity),. overload protection,. over-voltage and under-voltage protection,. short-circuit protection,. protection against leakage to earth,. grounding control.. The charger meets the requirements of IEC62752 and IEC62955 standards. The integrated metering module RN8302B ensures high accuracy of energy measurement (error < 0.1%, compliance with classes 0.5S and 0.2S), which enables accurate billing of energy consumption.. The IP66-rated enclosure and IP55-rated connector guarantee high resistance to external influences, making the device suitable for indoor and outdoor use. The charger operates in a temperature range from -30 °C to +50 °C, at humidity levels of 5-95 % and at altitudes up to 2000 m above sea level.. Technical parameters:. Power: 11 kW. Voltage: 400 V. Current: 16 A. Type: AC, three-phase. Charging cable length: 5 m. Power cable cross-section: 5 × 2.5 mm2. Short circuit current: 1500 A (IEC 62752:2016 + AMD1:2018). The device is designed for intensive use, ensuring high durability and stable performance even in long-term operation.. Combining advanced protection features, high measurement accuracy and simple operation, the charger is a practical solution for corporate installations and private users who expect reliable and safe charging of electric vehicles at home or in the business.
