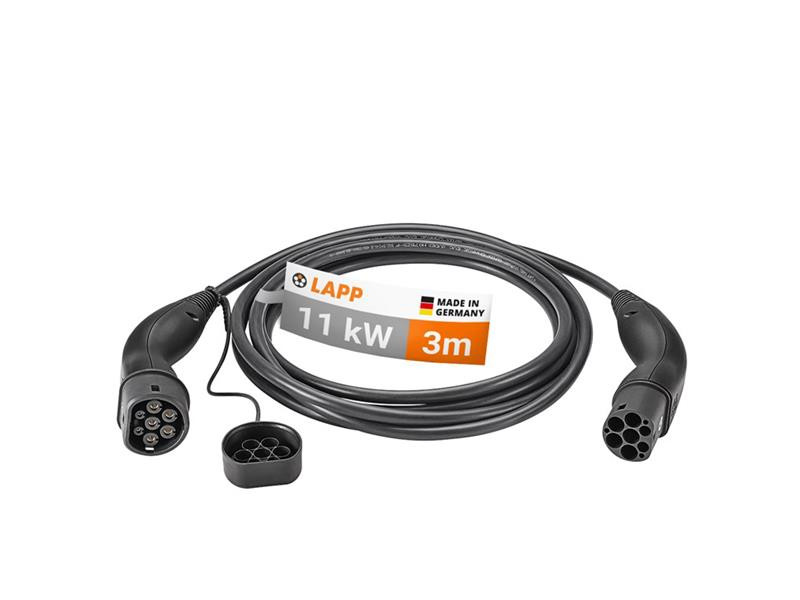

Charging cable LAPP 75747 type 2 11kW 20A 3 phase 3m for electric car

The standard LAPP Type 2 charging cables connect your electric vehicle to a charging station, charging pole or wallbox – for easy charging at home or on the go. Simply connect the cable coupler to the car and the plug to the power source. The charging process is automatically started and ended by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).

The Type 2 charging cable from LAPP enables easy and fast charging with up to 11 kW at a public or private charging station or wallbox.
Thanks to the 3-phase cable design, the cable charges particularly quickly and also supports 1-phase charging with 3.7 kW
Highly robust cables and plugs with vehicle-resistant silver-plated contacts provide exceptional durability
A cover on the coupling on the vehicle side protects against dust, dirt and water between charges.
Oil-resistant and longitudinally waterproof EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
The Type 2 to Type 2 EV charging cable is space-saving and easy to handle due to its low weight.
Mode 3 charging cable manufactured according to the current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connection (Combo 2).

Technical parameters:

Connection:
Connection, type: female type 2 plug
Connection 2, type: male type 2 plug
Power:
Load capacity up to: 11 kW
Charging mode: Mode 3
Nominal voltage: 440 V (AC)
Maximum current capacity: 20 A
Cable:
Number of phases: 3
Internal conductor cross-section: 2.5 mm²
Cable type: smooth cable
Cable sheath material: ÖLFLEX® CHARGE
Cable length: 3 m
Protection class: IP55
Colour: black
Weight: 1430 g
