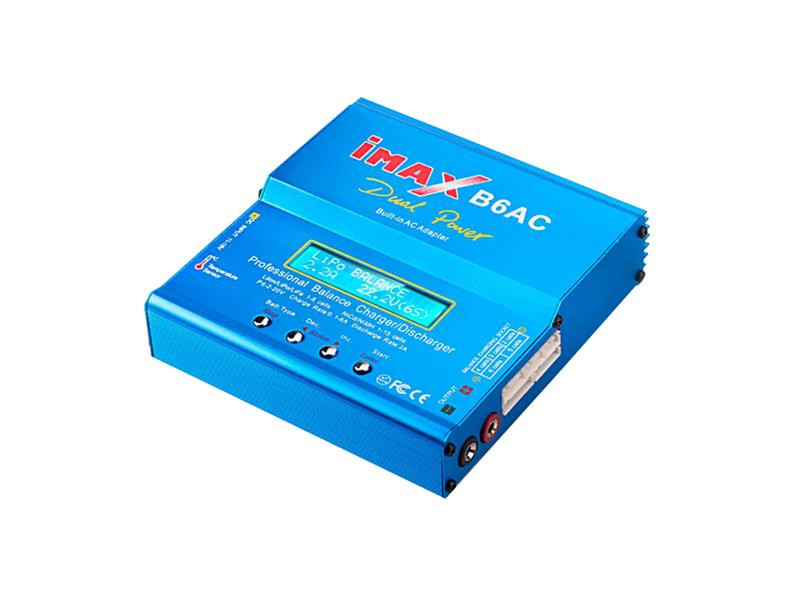

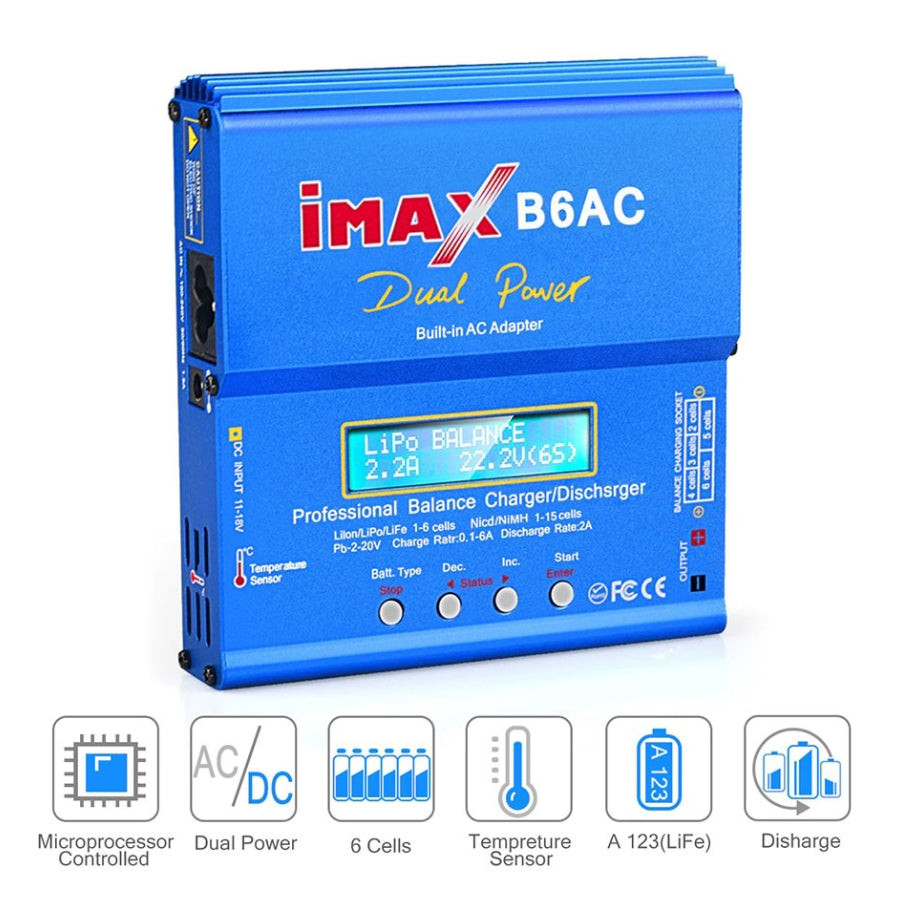

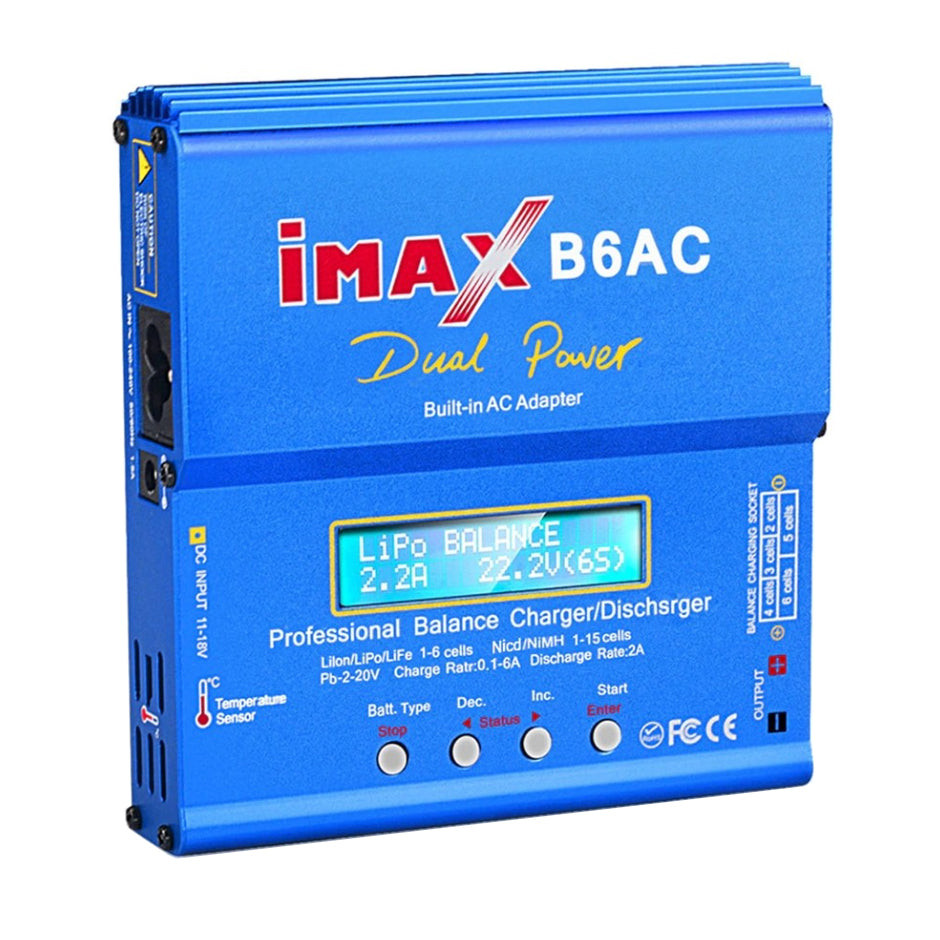

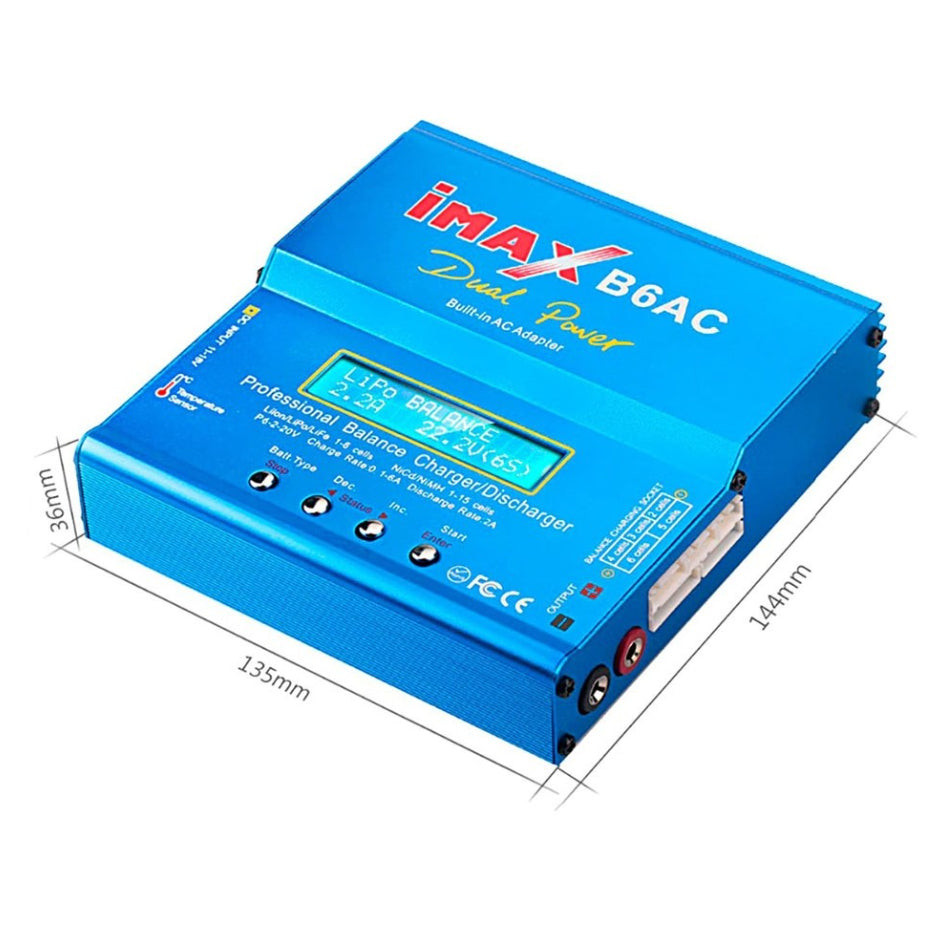

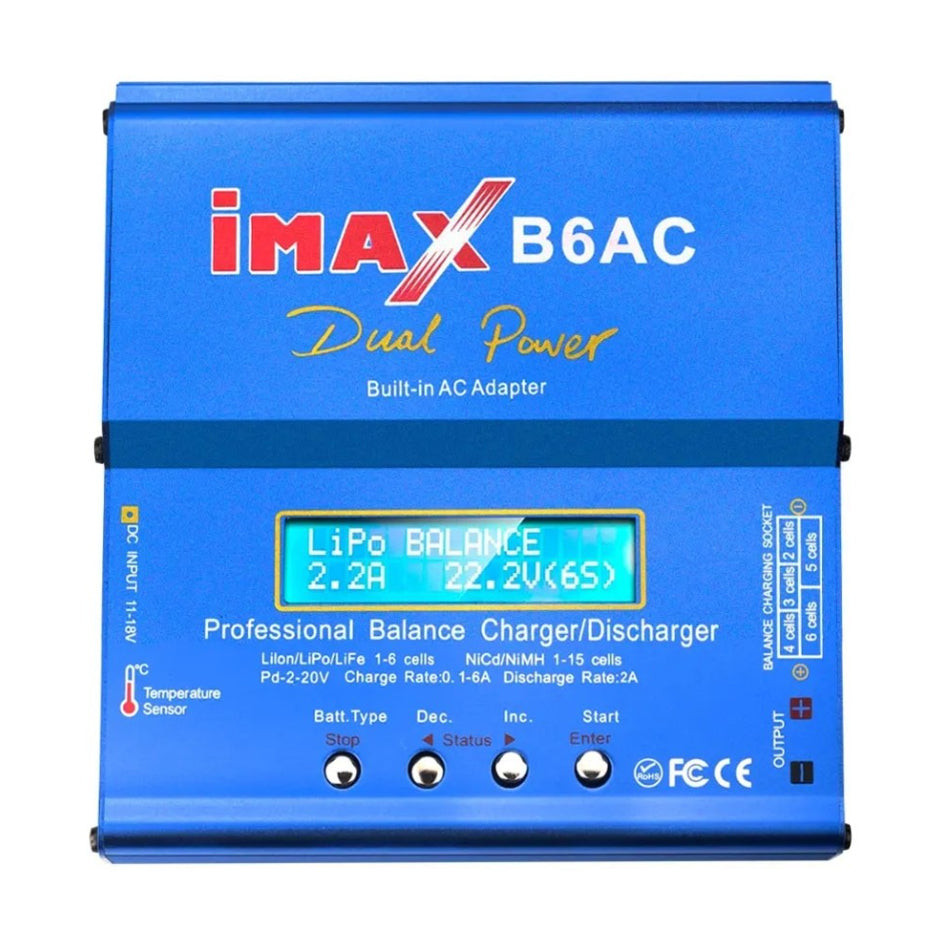

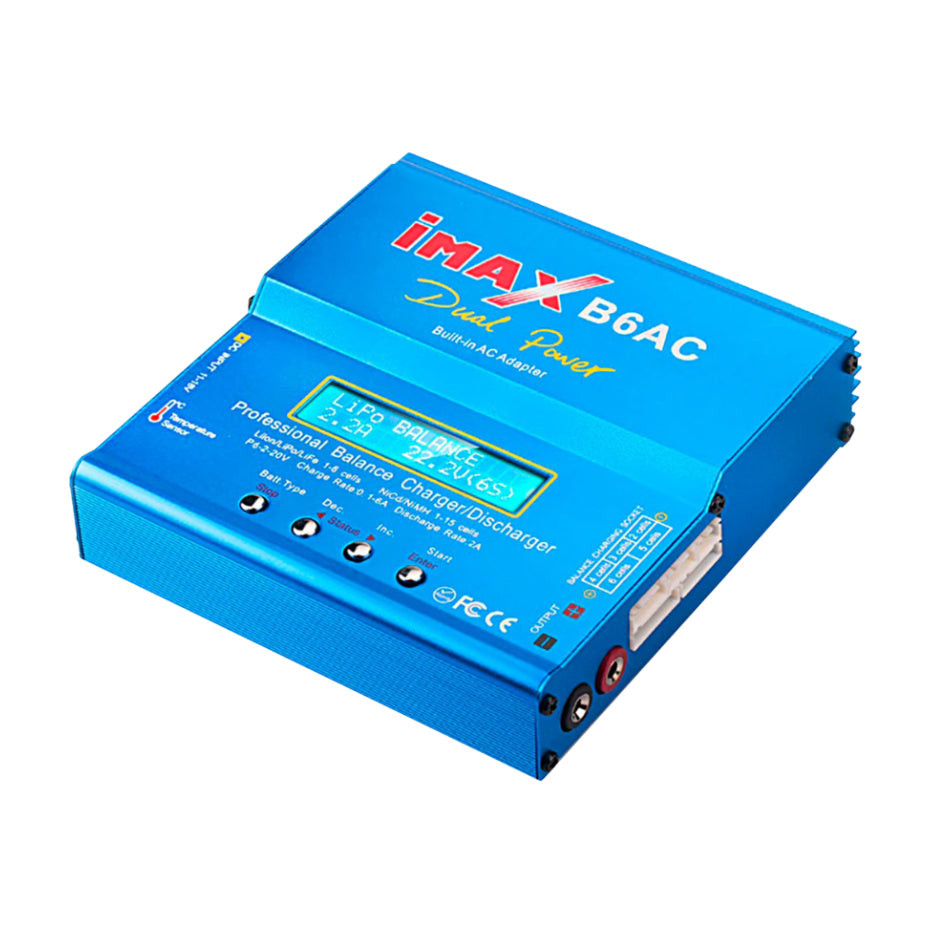

Charger iMax B6 80W E6168 modeller

Charger with source + adapters and temperature sensor

The Imax B6AC charger has a built-in power supply, so it can be powered directly from the 230V AC network. It also has an input for a DC 11-18V source, which makes it possible to use an external source or connect to a car battery.

The optimized operating software of the Imax B6AC includes an AUTO function that controls the charging speed during charging and discharging. In the case of lithium batteries, this can prevent overheating, which can lead to an explosion due to incorrect parameter settings by the user. The charger will automatically disconnect the circuit and trigger an alarm in case of any malfunction. All operating modes of this charger are controlled automatically for maximum safety. All settings are user configurable.

iMax B6AC is a small processor charger with a power of up to 80W, intended for charging Ni-Cd, Ni-MH, Li-Po, Li-Ion, Li-Fe, PB batteries.

- Power supply from the socket (230V) - the charger has a built-in power supply
- Support Ni-Cd, Ni-MH, Li-Po, Li-Lo, Li-Fe, PB batteries
- Built-in 2-6S balancer for Li-xx batteries
- Microprocessor control
- Delta-peak
- Large range of current intensity changes
- Storage function - preparing the battery for longer inactivity
- Time limit
- Battery voltage monitoring during charging
- Built-in memory
- Battery forming function
- For modelers

Technical parameters:

- Input voltage: 11-18V DC, 100-240V AC
- Supported battery types: Ni-Cd, Ni-MH, Li-Po, Li-Ion, Li-Fe, PB
- Number of supported LiXX cells: 1-6S (3.7-22.2V)
- Number of supported NiMH / NiCd cells: 1-15 (1.2-18V)
- Charging current: 0.1-6.0A (up to 80W) for LiPo and NiMH batteries
- Power: 80W
- Temperature sensor is not included

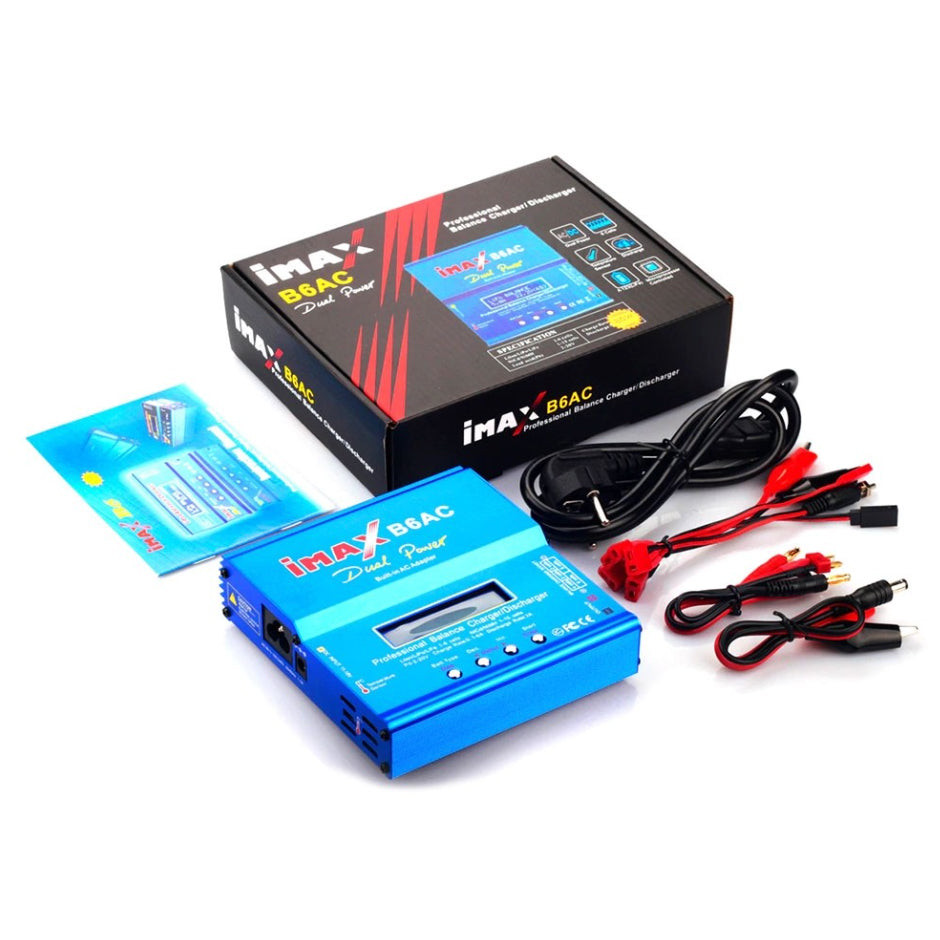

Package contents:

- iMaxRC B6AC charger with source
- Power cable
- Cable for power supply 11-18V DC with alligator clips
- Battery charging cable: Jack - T-Dean
- Battery connection adapter set: T-Dean - glow plugs, T-Dean - crocodile, T-Dean - JST, T-Dean - Futaba,
